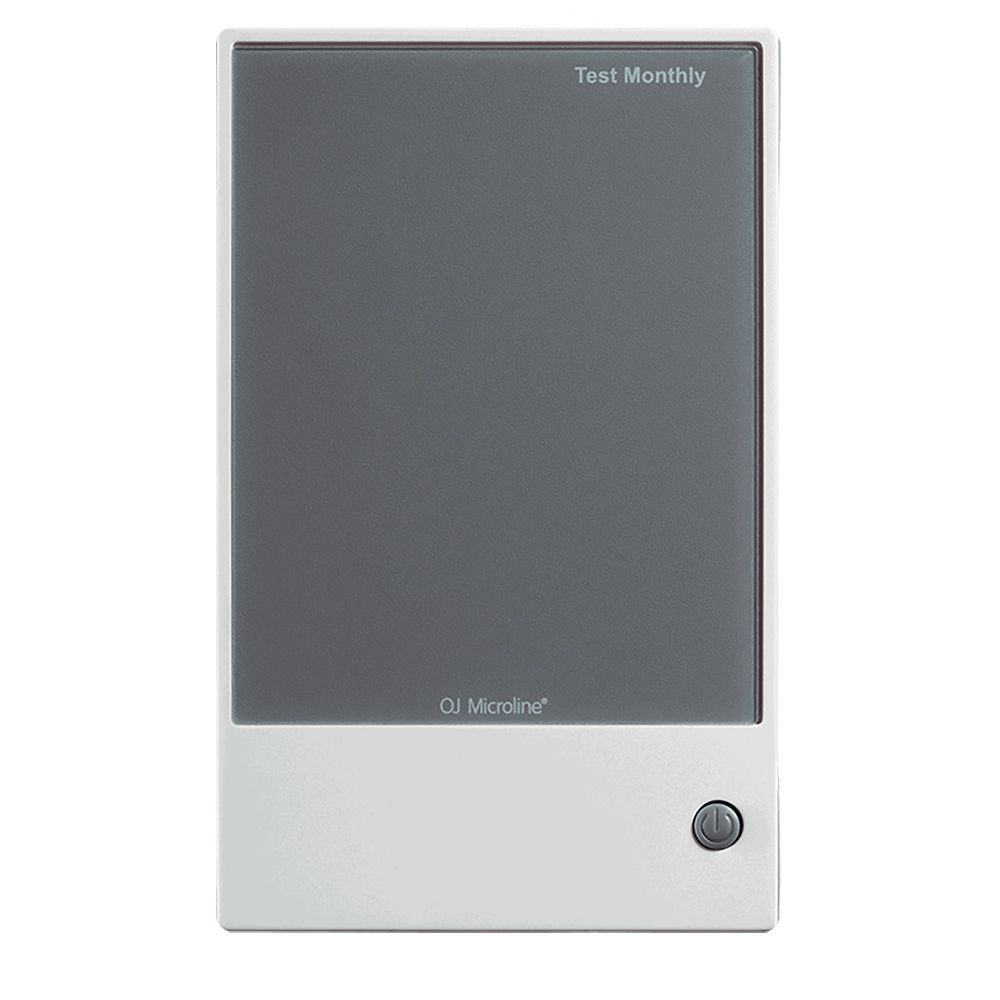

OJ Microline Intuitive Power Module w/ Built-in GFCI (Relay)

The OJ Microline intuitive Power Module w/ Built-in GFCI (Relay) is designed for use with MasterHeat or other electric in-floor heating installations when the total amperage exceeds 12 amps.
$109.95

Availability: Sold In Store - Ships From Store (33 available in store). (More Info)

Shipping: Free to Continental US (More Info)

SKU
MH USG-4000

The OJ Microline intuitive Power Module w/ Built-in GFCI (Relay) is designed for use with MasterHeat or other electric in-floor heating installations when the total amperage exceeds 12 amps. OJ Microline Thermostats are rated up to 15 amps, however, we recommend not exceeding 80% of their rated capacity to ensure long life and trouble-free use. This relay is designed to be used with both the UDG and UTN Thermostat models.

In large applications, UCG, UDG and UTN thermostats can be extended with additional USG power modules with built-in Class A GFCI. Output can thus be increased by 15 A per module.

Industrial Design: USA - Design Patent No. D633445

  • Easy to use with no need for use of manual
  • Screw terminals for safe and easy installation
  • Multi-voltage: 120 - 240 V (incl. 208 V)
  • Output relay: 15 A
  • Class A GFCI: suitable for wet room installation

Download Installation Guide
Download Product Brochure

More Information
SKU MH USG-4000
UPC 731007729464
Non-Returnable No
Manufacturer OJ Electronics
Manufacturer Part Number USG-4000
Voltage 120/240
Weight (lbs.) 1.00
Dimensions (L x W x H) 4.72" x 2.95" x 1.98"
