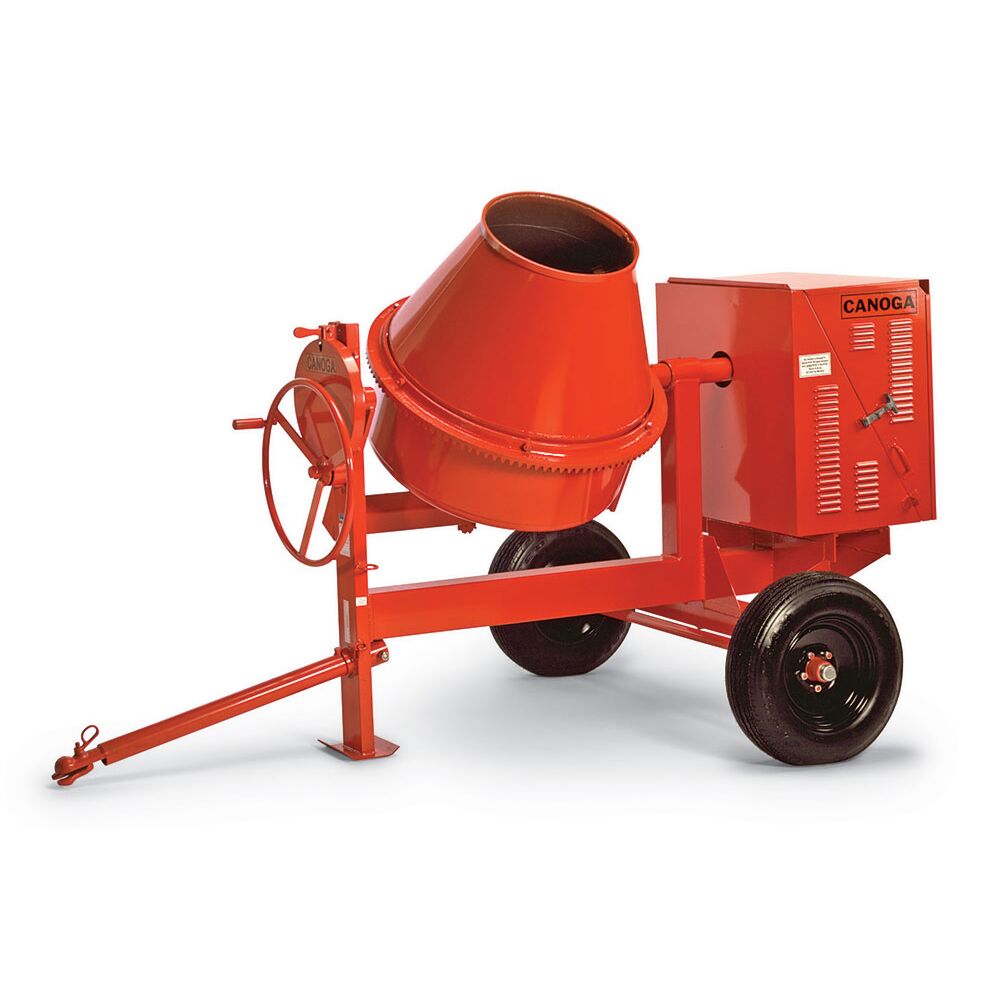

MK Diamond Canoga 300GH Concrete Mixer, Gas w/ Honda GX240 (9 cu.ft.)
The towable Canoga 300GH mixer has a welded structural tubing and channel frame, a cast steel pinion gear, and torsion bar suspension.
$16,250.00
Availability:
Out of stock
SKU
163823
The Canoga 300 Series of concrete mixers are towable with a welded structural tubing and channel frame, cast steel pinion gear and torsion bar suspension. Features include a geared dump system for better control and gravity latch for secure drum position. Heavy-duty 10-gauge drum fabricated with 1/4" steel bottom and 3/8" thick reinforcing ring. Powered by 1-1/2" hp TEFC electric motor or GX240 Honda engine with dual V belts. Drum measures 34" in diameter with 19" opening. Tow-tongue includes cast iron 2" ball hitch and heavy-duty safety chain.
MK Diamond Canoga 300GH Features:
- Drum fabricated from 10 gauge steel with 1/4” bottom and 3/8” reinforcing ring
- Three paddles with three blades each plus three open type bowl gussets for superior mixing and easy cleaning
- Forty-nine possible drum positions with machine cut gears for easy turning and gravity latch for secure drum locations
- Engine house mig welded using 12 & 14 gauge sheet metal with heavy duty piano hinge for durability
- Motor mounted on heavy duty angle iron to reduce vibration and fatigue
- Torsion Bar Suspension for smoother ride
- Chassis and yoke designed from structural tubing and channel for greater strength
- Removable 2-1/2" diameter towing tongue with heavy duty safety chain
Canoga Concrete Mixers Specifications:
| Model | 300-E | 300-GH | 300-G Front Load |
| Part # | 164147 | 163823 | 167940 |
| Motor | Baldor 1-1/2 hp 120V | Honda GX240 | Honda GX240 |
| Batch Capacity | 1-1/2 to 2 Bags (9 Cubic Ft.) |
1-1/2 to 2 Bags (9 Cubic Ft.) |
1-1/2 to 2 Bags (9 Cubic Ft.) |
| Total Volume | 15 Cubic Ft. | 15 Cubic Ft. | 15 Cubic Ft. |
| Drum Diameter | 34" | 34" | 34" |
| Drum Depth | 38" | 38" | 38" |
| Drum Opening | 19" | 19" | 19" |
| Drive | Dual V-belts & gear | Dual V-belts & gear | Dual V-belts & gear |
| Axle | Torsion-Bar | Torsion-Bar | Torsion-Bar |
| Wheels | 5.0 x 13" | 5.0 x 13" | 5.0 x 13" |
| Tires | ST175/80D 13C 6 ply Bias/Load Range C |
ST175/80D 13C 6 ply Bias/Load Range C |
ST175/80D 13C 6 ply Bias/Load Range C |
| Dimensions (LxWxH) | 120" x 62" x 70" | 120" x 62" x 70" | 88" x 96" x 73" |
| Weight | 1060 lbs | 1060 lbs | 1060 lbs |
| SKU | 163823 |
|---|---|
| Date Available | Jan 17, 2024 |
| UPC | 092333826341 |
| Manufacturer | MK Diamond |
| Warranty | One-Year Limited Warranty |
| Manufacturer Part Number | 163823 |
| Batch Size | 9 cu. ft. |
| Motor | Honda GX240 |
| HP | 1-1/2 |
| Dimensions (L x W x H) | 120" x 62" x 70" |
| Weight (lbs.) | 1060.00 |
