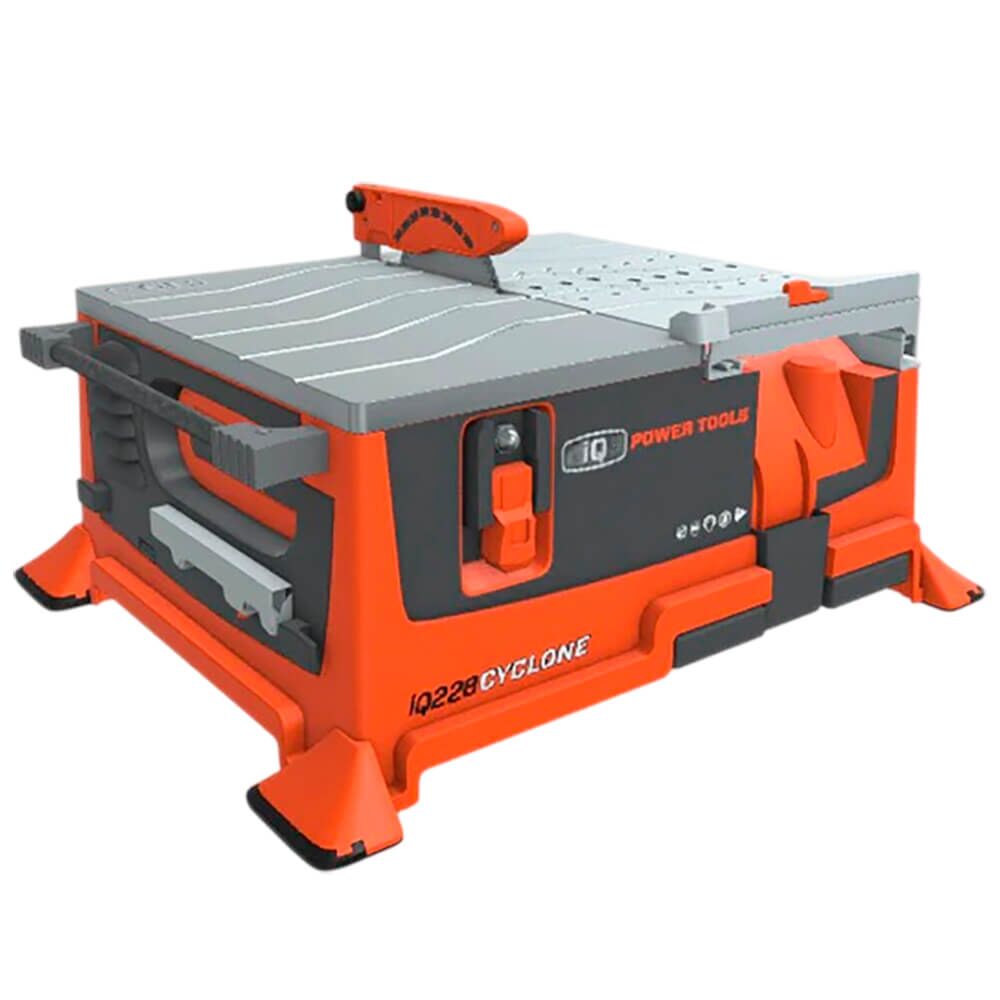

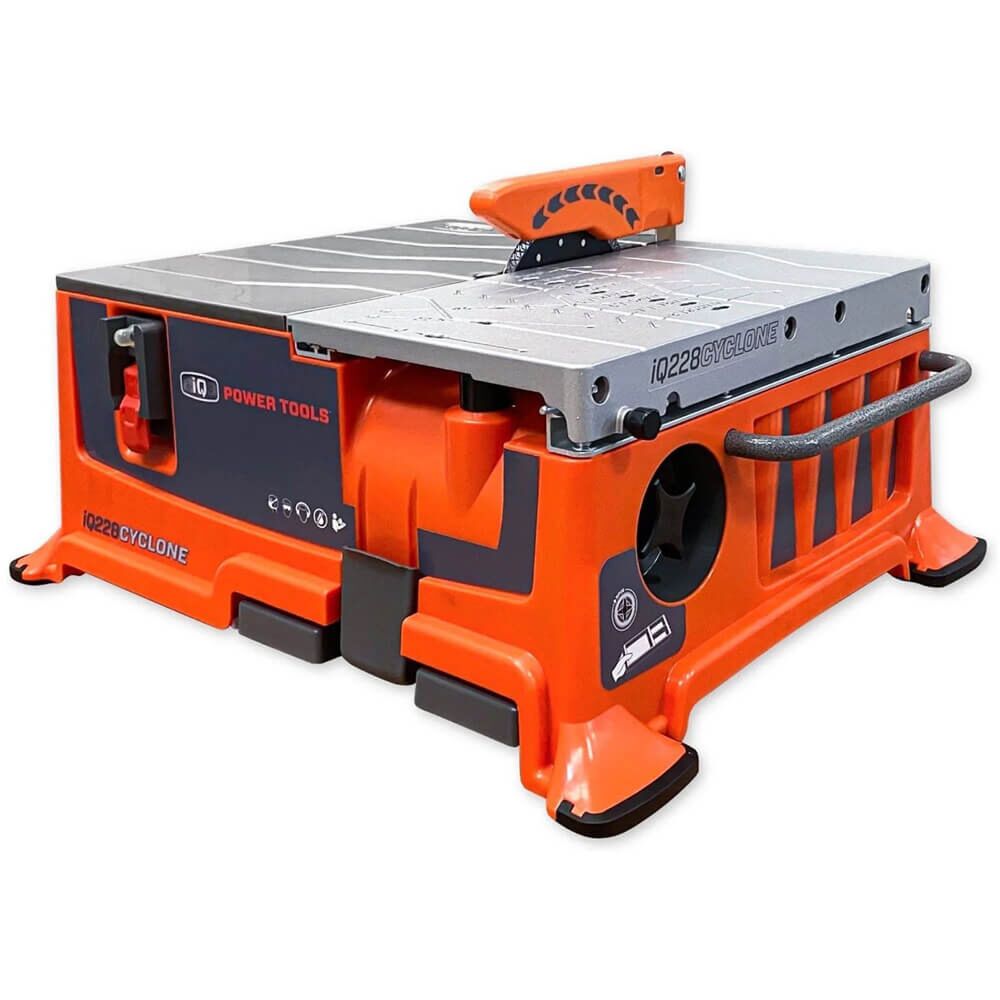

IQ Power Tools iQ228CYCLONE 7" Dry Cut Tabletop Tile Saw

The IQ Power Tools iQ228CYCLONE is the world’s first 7" dry cutting tabletop tile saw with integrated dust control and a new TRU-CUT System.
$649.00

Availability: Sold in Store - Ships from Store or Factory (2 available in store). (More Info)

Shipping: Free to Continental US (More Info)

SKU
IQ228

The IQ Power Tools iQ228CYCLONE is the world’s first 7" dry cutting tabletop tile saw with integrated dust-control and a new TRU-CUT System.

The all-new IQ Power Tools TRU-CUT System is an integrated measurement system that provides consistent and accurate cuts for any job - it includes a fence, iQ micro fence, and pre-measured rolling table. Lightweight and easy to transport, it allows you to set up in small spaces easily and in a few minutes. This saw is designed for professional tile installers to eliminate the problems with cutting wet, save time, and increase their profitability on tile jobs.

The IQ Power Tools iQ228CYCLONE Saw Features:

  • Versatile Cutting Ability - Cut 18" rip cuts with a rolling table or 24"+ with a locked table
  • Portable - Carry the iQ228CYCLONE onto the job site with one hand. This saw is only 36 lbs!
  • Cyclones - These 4 cyclones use centrifugal force to pull majority of dust debris down into the dust tub before it hits your filter. This helps extend the life of the filter.
  • Vacuum Motor - This 15amp motor runs both the vacuum and saw motor. It produces x CFM and collects 99.5% of the dust.
  • Durabond Filter - This filter removes fine parts from being released into the operator's breathing zone.

iQ228 Cyclone Saw Specifications:

Voltage 120V
Total System Amperage: 15 Amps
Motor power 1800 Watt
Sound Pressure Level dB(A)2: 86
Blade Capacity 7"
Depth of Cut 1.25"
Length of Cut 18" with rolling table, 24" without
Filter Type iQ Dura Bond Cartridge
Effective Dust Capacity 5 lbs
Dimensions 23" x 41" x 34"
Weight 36 lbs

Download User Manual

More Information
SKU IQ228
In the Box
  • iQ Power Tools iQ228 Dry-Cut Tile Saw
  • One 7" Combo Blade
  • One standard fence
  • One IQ Micro fence
  • User manual
UPC 705464793542
Manufacturer IQ Power Tools
Manufacturer Part Number IQ228CYCLONE
Blade Capacity 7"
No Load Speed (rpm) 6,000
Dimensions (L x W x H) 25.2" x 21.3" x 13.4"
Max Length of Cut (in.) 48"
Max Depth of Cut (in) 1"
Arbor Size Q-Drive
Diagonally Cuts (in.) 18"
Amps 15
Voltage 120
Wet or Dry Dry Only
Weight (lbs.) 36.0
