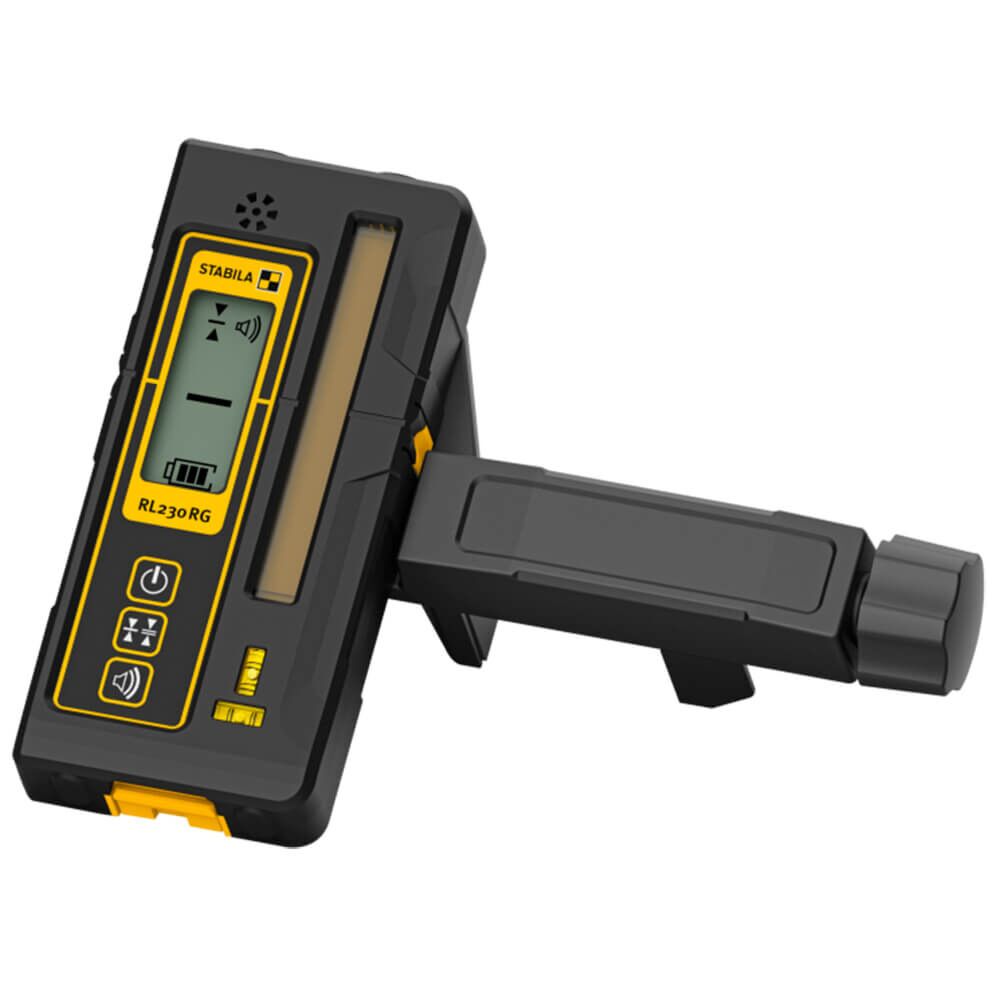

Stabila RL 230 RG Line Receiver
Professional line laser receiver designed for pulse-modulated green and red laser lines. Extends working range, delivers precise alignment over long distances, and features dual digital displays, acoustic guidance, and IP66-rated jobsite durability.
Brand: Stabila
Availability: Sold In Store - Ships From Store (1 available in store). (More Info)
Shipping: Standard (More Info)
Stabila RL 230 RG Line Receiver — Green and Red Laser Detector
The Stabila RL 230 RG Line Receiver is a high-performance accessory designed to extend the working range of pulse-modulated green and red line lasers. Ideal for professional construction environments, it accurately determines the position of the laser beam relative to the reference plane—even when the laser line is no longer visible or in strong sunlight.
Equipped with illuminated digital displays on both sides, the receiver enables fast, convenient readings from any angle. Clear arrow indicators provide visual guidance, while adjustable acoustic signals help users quickly locate the laser plane. With two selectable sensitivity modes—Fine (±1/32 in / ±1 mm) and Coarse (±1/8 in / ±3 mm)—the RL 230 RG adapts to a wide range of leveling and alignment tasks.
Built for tough jobsite conditions, the receiver meets IP66 standards for water and dust protection. The integrated magnet system and included bracket allow secure mounting to metal surfaces or leveling rods for hands-free operation. With a 3 1/2 in (90 mm) receiver window and up to 45 hours of runtime, this tool delivers dependable performance for precise long-distance measuring.
Key Features and Benefits
- Compatible with Green and Red Pulse Lasers — Detects pulse-modulated laser lines to extend the effective working range—even in bright sunlight
- Dual Illuminated Digital Displays — Backlit screens on both sides provide clear, fast readings at the push of a button
- Visual and Acoustic Guidance — Arrow indicators show position relative to the reference plane, with adjustable beep volume (105 dB / 85 dB)
- Two Sensitivity Levels:
- Fine mode: ±1/32 in (±1 mm)
- Coarse mode: ±1/8 in (±3 mm)
- Adaptable precision for different measuring requirements.
- IP66 Protection Rating — Waterproof and dustproof construction designed for demanding construction environments
- Integrated Magnet System — Built-in rare-earth magnets allow secure attachment to metal surfaces
- Multiple Mounting Options — Includes bracket for leveling rods and versatile jobsite positioning
- Long Battery Life — Up to 45 hours of operating time with battery status indicator
Downloads
| SKU | T-LEVEL 07210 |
|---|---|
| In the Box |
|
| UPC | 089634072102 |
| Weight (lbs.) | 1.17 |
| Non-Returnable | No |
| Manufacturer | Stabila |
| Manufacturer Part Number | 07210 |
| Dimensions (L x W x H) | 7" x 2.6" x 1" |
