Wedi Fundo Ligno Curbless Shower Pan (Base) w/ Click and Seal Drain Unit
Brand: Wedi
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)

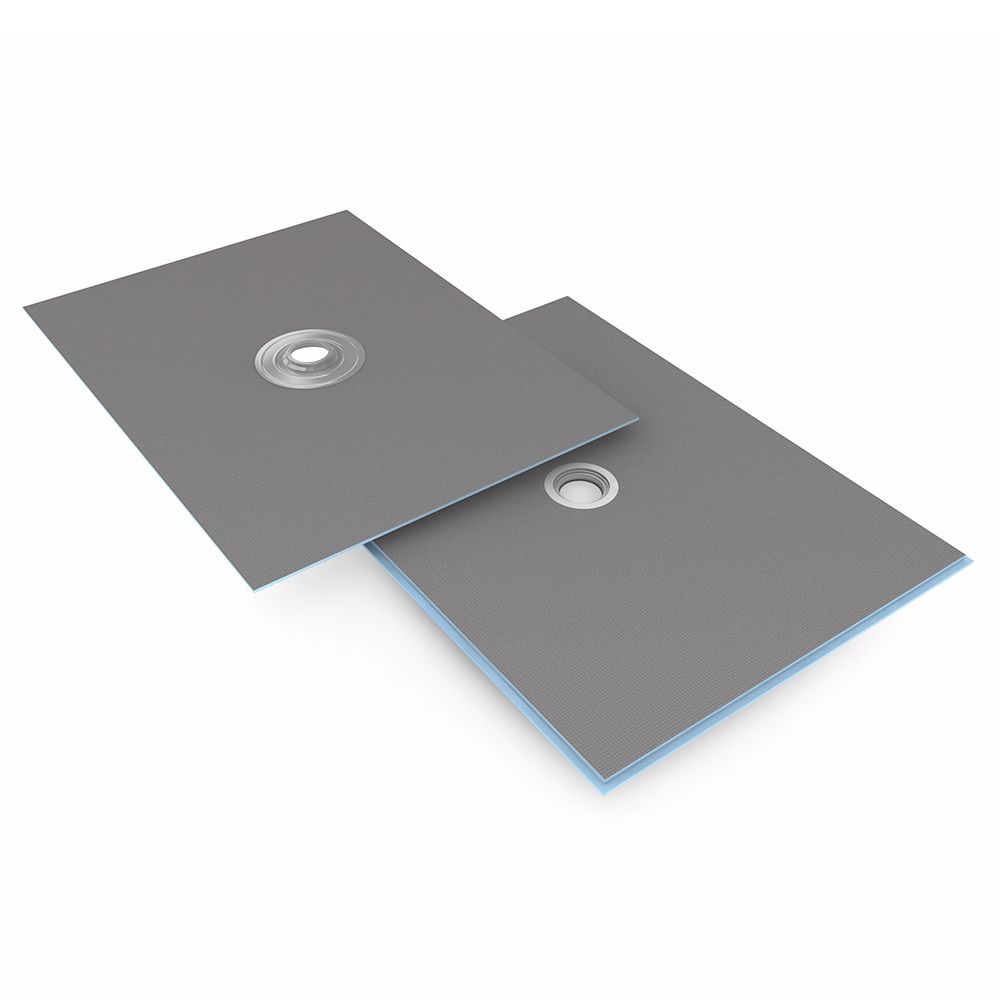

Wedi Fundo Ligno Curbless Shower Pan with Click and Seal Drain — Low-Profile Waterproof Base
The Wedi Fundo Ligno Curbless Shower Pan (Base) w/ Click and Seal Drain Unit is designed to provide for a low profile base thickness of only 3/4 in. (19 mm). This allows for a fast and flush installation into a subfloor assembly without cutting into floor joists. The system is designed to work without a curb.
Eliminating the need to cut into floor joists maintains the structural subfloor panels installed between the floor joist under the Wedi Fundo Ligno shower base. Barrier-free showers may be exposed to heavy point loads (e.g. wheelchairs) and require strong support. You can confidently rely on the structural strength of the Wedi base and subfloor as well as the Wedi Fundo Ligno’s traditional strong cement-based surface for the ideal tile bond using any suitable cement-based tile adhesives or grout.
Click and Seal Drain Unit Features
- Commercial grade, solid drain body
- Fundo Click and Seal Drain fits all Fundo Shower Bases
- Drain Assembly included with every Fundo shower base or kit
- Drain cover can move both vertically and laterally to accommodate any size of tile
- Drain cover can be selected a la carte, but standard cover remains included with Kits
- Drain is equipped with extra weep holes for faster draining of water from thinset mortar layer
- Hair strainer now included in the drain assembly
- Fast, clean, and simple installation
- No plumbing license, glue, or sealant needed
- "Click" sound as checkpoint marks visible from the top view into the drain confirm the drain has properly sealed to Wedi Base.
- Seals to ABS, PVC, or cast iron waste pipe- even on drain/floor pipes up to 5° out of plumb
- A special kit is available to seal to copper pipe
- Can be cleanly and safely disassembled and reassembled, if plumbing needs to be replaced
Shower Pan (Base) Features
- Pre-sloped and internally waterproof Point drain shower base system for floor-even and barrier-free entry showers
- Eliminates cutting into Floor Joists when recessed. Sloped Shower Floor Base with only 3/4" profile thickness
- Ready for tiling upon installation
- Entire system is 100% waterproof
- Available in the full Wedi Fundo Ligno Shower kit.
Note: The Wedi Fundo Click and Seal Height Adjustment Kit sold separately. The Drain Cover Exention only works for Wedi’s finished surface drain covers, but not with Wedi’s tileable covers due to their special water drainage design.
Here is how you select the right shower base size to fit the job in most cases:
Determine the distance between the center of the 2-inch pipe in the subfloor to all framed walls and where you plan to have the inside of a Wedi Curb (as if it were another framed wall). Next, take note of the longest dimension of the two distances measured along each axis (east/west and north/south.)
You will need to select a shower base that covers twice the length of the longest dimensions along each axis. This will ensure that the shower base will cover the entire shower area and, if needed, can be trimmed on-site to position the integrated wedi drain over the 2-inch waste pipe in the subfloor.
This method of calculating the correct shower base works for square and rectangular spaces with a mostly centered drain location. Where drains are very close to a wall, one of our off-center drain bases should be used if possible. Refer to the Wedi Technical Drawings section to select the correct base that covers your shower dimensions, and will properly align the integrated Wedi drain with the floor drain pipe.
Models and Technical Drawings
| Model Number | Size | Technical Drawing | Replaces Part Number |
|---|---|---|---|
| US9200001 | 36" x 48" x 3/4" | Download | 073732014 |
| US9200002 | 48" x 48" x 3/4" | Download | 073732015 |
| US9200008 | 48" x 72" x 1-1/8" | Download | — |
| US9200003 | 36" x 60" x 3/4" | Download | 073732016 |
| US9200007 | 36" x 60" x 1-1/8" | Download | — |
| US9200004 | 48" x 60" x 3/4" | Download | 073732017 |
| US9200005 | 60" x 60" x 3/4" | Download | 073732018 |
| US9200009 | 60" x 72" x 1-1/8" | Download | — |
| US9200010 | 72" x 72" x 1-1/8" | Download | — |
| SKU | FUNDO LIGNO BASE |
|---|---|
| In the Box |
|
| Weight (lbs.) | 11.00 - 20.00 |
| Non-Returnable | Yes |
| Manufacturer | Wedi |
| Dimensions (L x W x H) | 36" x 48" x 3/4" - 60" x 60" x 3/4" |
