Aardwolf Stone 'A' Frame Plus SAF03
Brand: Aardwolf
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)

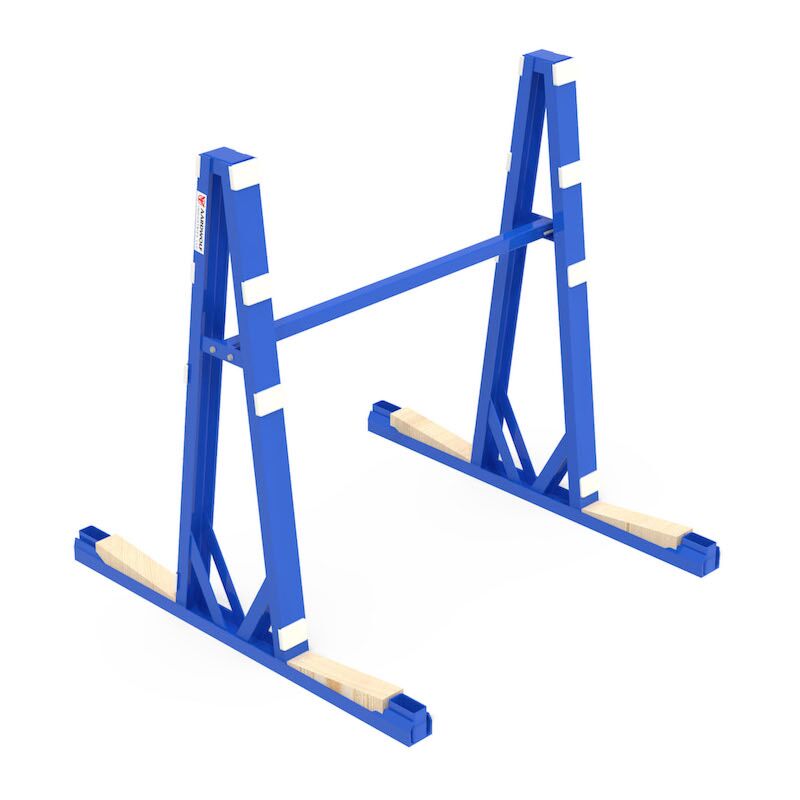

The heavy-duty Aardwolf ‘A’ Frame SAF03 has been designed for the unpacking of slabs from wooden crates. Large angled lacquered wooden gluts fitted in the base channel create a bias so that slabs fall towards the frame. Strong safety posts with section 100x50 (4”x2”) at the rail ends protect workers in case of mishaps where the slabs tip away from the frame. In many jurisdictions safety ‘A’ frames are a requirement of work safe policies and insurance policies when unloading crates containing large slabs. The ‘A’ frame Includes protective timber on the base rails and rubber cushioning material on the face of the uprights. Steel cross member and fasteners included.
Note: The safety posts are not included.
Aardwolf Stone 'A' Frame Plus Features:
- Heavy-duty steel construction.
- Full slab design.
- Store slabs on both sides.
- Durable powder coat finishes for weather protection.
- Holes in the base rail drain water to reduce corrosion.
- Rubber pads on the face of the vertical frame.
- The middle support bar connects each A-Frame end piece.
- 4 safety post 100x50 x1400 high strength posts. (The safety posts are not included.)
Aardwolf Stone 'A' Frame Plus Specifications:
| SAF03 | Metric (mm-kg) | Imperial (inch-lbs) |
| Working load limit | 15,000 kg | 33,069 lbs |
| Net weight | 102.5 kg | 226 lbs |
| Gross weight | 108 kg | 238 lbs |
| Dimensions of the frame: | 1,840 x 220 x 2,000 mm | 72.4"x8.7"x78.7" |
| SKU | T-AW SAF03 |
|---|---|
| Weight (lbs.) | 226.0 |
| Non-Returnable | No |
| Manufacturer | Aardwolf |
| Manufacturer Part Number | SAF03 |
| Dimensions (L x W x H) | 63" x 63" x 64.96" |
