Battipav Supreme 320S 12" Marble Bridge Saw - 83201
Brand: Battipav
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)

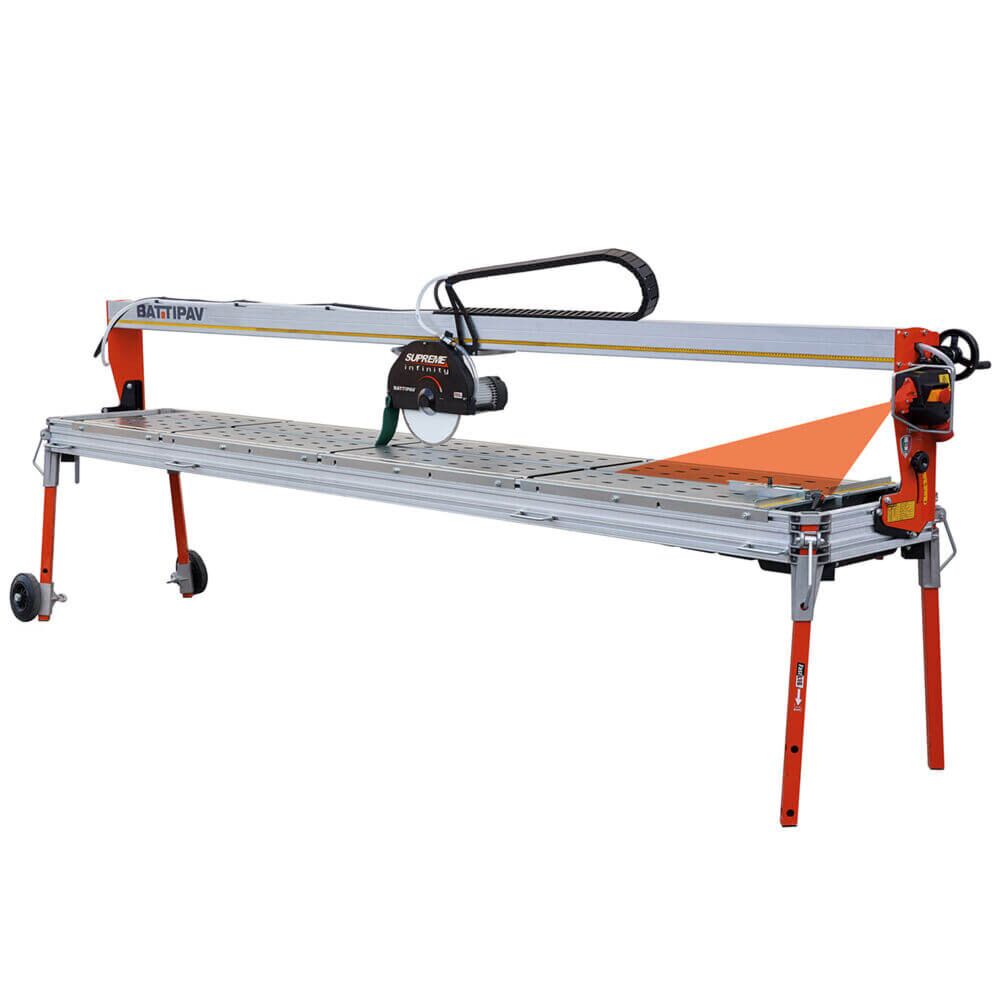

Battipav Supreme 320S Bridge Saw — Heavy-Duty 126" Wet Saw for Oversized Slabs
The Battipav Supreme 320S is a high-performance bridge saw engineered for professionals working with large-format stone, granite, marble, and engineered slabs. With an exceptional 126-inch maximum cut capacity and 4.5 HP motor, this Italian-made saw delivers power, accuracy, and durability on every job.
Designed for fabricators and contractors handling oversized materials such as kitchen islands, countertops, or wall panels, the Supreme 320S combines rugged construction with user-focused precision. Its manual feed system ensures full control during straight and miter cuts, while the rigid aluminum bridge and galvanized steel table eliminate flexing for clean, consistent performance.
An integrated water cooling system with a 45–50L tank and S3 submersible pump keeps dust down and blades cool during long cuts, extending tool life. The laser guide and goniometer fence provide fast, repeatable setup, while the included transport wheels make mobility easier despite its heavy-duty frame.
Now optimized for the U.S. market with a 120V single-phase configuration, the Battipav Supreme 320S delivers industrial-grade results with plug-and-play convenience. Built to handle demanding workloads, this is the ultimate saw for professionals who expect precision, performance, and reliability.
Ships to Commercial Address Only
Benefits
- Handles oversized slabs with unmatched precision.
- Reduces dust and extends blade life with efficient water cooling.
- Easy setup and transport despite heavy-duty frame.
- Delivers Italian engineering quality optimized for U.S. power systems.
- Ensures accurate, repeatable cuts for professional-grade results.
Structure
Alluminium draw-plate to get the maximum of rigidity and lightness at the same time.

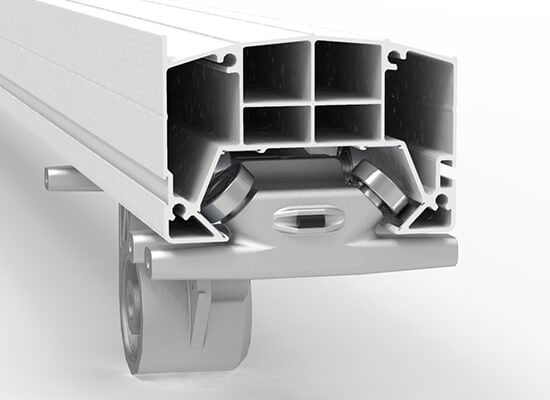

Bridge
The rail is in extrusion of aluminium at high resistance to the torsional stress.
It’s equipped with interchangeable stainless steel bearings-tracks.
Absolute cutting precision.
Scale Measure
Millimitres graduated scale for a fast execution of the cuts in series.
Goniometer Fence
A professional adjustable goniometer fence is included.
Side Table
The extension side table, made in galvanized steel, is optional and can be mounted in both the sides of the machine. It allows the cut of big sizes.

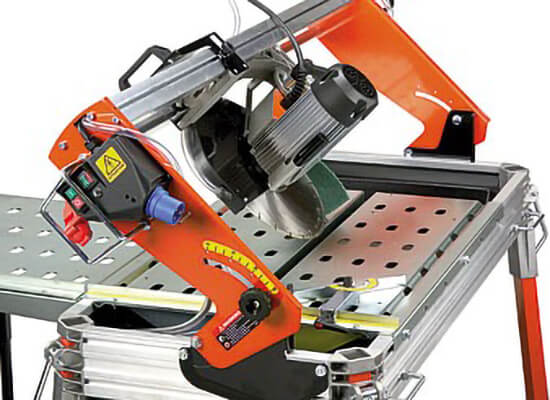

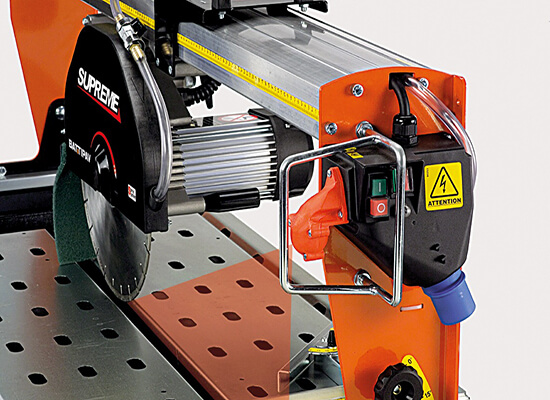

Control Board
The control board includes:
- Switch with release coil
- Overheat protection with manual reset in the event of the disk jamming
- Red light for signalling the presence to connection net
- Green light for signalling machine on function
- Laser instrument for the maximum cutting precision (optional in standard version)
- Plug industrial type

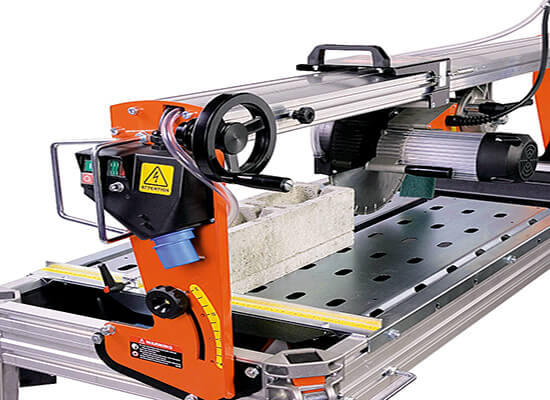

Working Table
The working table, of large dimension (620 mm.), is made in galvanized steel.
The water tank, realized in abs material, crash and consumption proof.
- It’s easy to clean and realized to divide the cutting rubble from the recycling water’s area.
- Water recycling pump type S3 included.

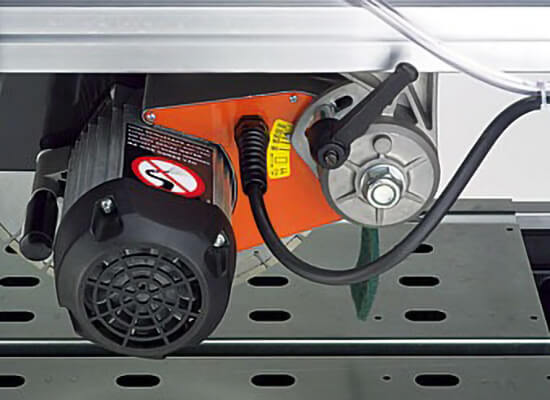

Cutting Depth
The adjustment of the cutting depth occurs by means the locking of the tilting of the engine group. A simple and easy graduated scale measures directly the cutting depth.

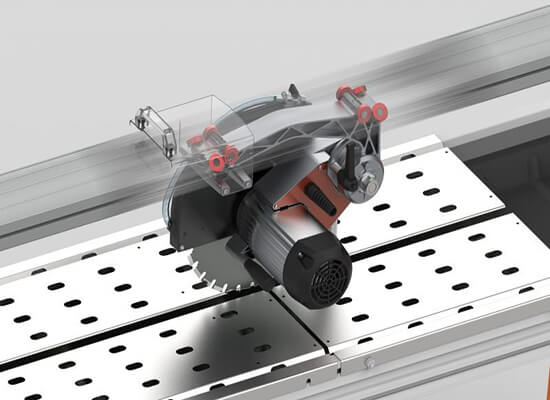

Carriage
The carriage engine group slides on the rail by means 8 ball-bearings, of which 4 works always in perpendicular way respect to the rail. So doing the sliding is very fast and precise.
Position 45° Angle Cuts
The wiring of the cables is integrated inside the rail to avoid they interfere in the cutting area. Powerfull engine 3Hp / 2,2 KW with thermal and amperometrical protection.
Specifications
| Supreme 150 | Supreme 200 | Supreme 260 | Supreme 320 | |
|---|---|---|---|---|
| Blade Capacity | 12" | |||
| Engine | 230V/50Hz 3 Hp (2.2kW) | 230V/50Hz 3 Hp (2.2kW) | 230V/50Hz 3 Hp (2.2kW) | 400V/50Hz 4.5 Hp (3.4kW) |
| Rotation Speed | 2,800 RPM | |||
| Amperometrical Protection | 13 A | 13 A | 13 A | 6-10 A |
| Max Length of Cut | 59" | 79" | 102" | 126" |
| Diagonally Cuts | 42" x 42" | 55.5" x 55.5" | 72" x 72" | 89" x 89" |
| Max Cutting Depth At 90° | 3" | |||
| Max Cutting Depth With 2 Runs | 5" | |||
| Max Cutting Depth At 45° | 2" | |||
| Dimensions (L x W x H) | 28" x 88.5" x 39" | 28" x 108" x 39" | 28" x 134" x 39" | 157" x 35" x 55.5" |
| Working Size Table | 58" x 25" | 81" x 25" | 107" x 25" | 131" x 25" |
| Water Recycling Pump Type | S3 standard | |||
| Weight | 211 lbs | 227 lbs | 356 lbs | 453 lbs |
| Product Brochure | Download | Download | Download | Download |
| SKU | T-BAT SAW 11 |
|---|---|
| UPC | 400000000028410 |
| Manufacturer | Battipav |
| Manufacturer Part Number | USA83201/B |
| Blade Capacity | 12" |
| No Load Speed (rpm) | 2,800 |
| Dimensions (L x W x H) | 157" x 35" x 55.5" |
| Max Length of Cut (in.) | 126" |
| Max Depth of Cut (in) | 5" |
| Arbor Size | 1" |
| Depth of Cut at 45° (in.) | 2" |
| Diagonally Cuts (in.) | 89" x 89" |
| Motor | Three-Phase, 400V~50Hz |
| HP | 4.5 |
| Amps | 6-10 |
| Voltage | 400 |
| Wet or Dry | Wet or Dry |
| Weight (lbs.) | 453 |
