Battipav VIP Radial-Bridge Tile Saw
Brand: Battipav
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)
Battipav Electrical Radial Tile Saw — Precision Wet Saw for Straight and 45° Angle Cuts
The Battipav Electrical Radial Tile Saw is a light, compact, and high-precision wet saw designed for professional tile cutting. Ideal for straight and 45° (jolly) angle cuts on single- and double-fired ceramic, porcelain, and gres tiles.
Equipped with a sliding cutting head, tilting motor, and foldable legs that tuck neatly under the workbench, this saw combines performance, portability, and clean operation.
Ships to Commercial Address Only
Features and Benefits
- Versatile Cutting Performance — Perfect for straight and 45° angle cuts on a wide range of ceramic and porcelain materials.
- Sliding Head with Tilting Engine — Ensures smooth, precise cuts and effortless beveling.
- Compact and Lightweight — Easy to transport and store, ideal for both job sites and workshops.
- Integrated Water Cooling System — Includes S1 water recycling pump for efficient cooling and dust suppression.
- High Visibility and Safety — Tilting blade guard minimizes water spray while maintaining a clear view of the cutting area.
- Durable Construction — Engine specifically designed for this machine runs on adjustable bearings for long-term reliability.
- Quick Series Cutting — Millimeter rail with locking handle allows fast, repeatable cuts with precise measurements.
- Easy Maintenance — Smooth surfaces and removable parts make cleaning fast and convenient.
- Optional Side Extension Table — Expands your working area for larger tiles.

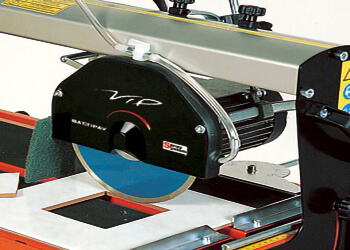

Guard Protection Disk
Tilting parallelly at the working bench, it raises the safety and reduces the water spray allowing a perfect visibility in the cut’s area.
Cleaning
Easy to clean.

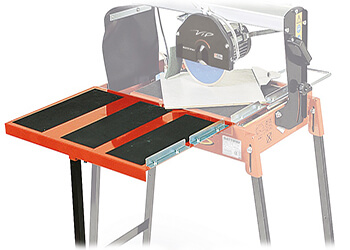

Optional
Extension side bench.
Particular Shapes
It makes every kind of shape due to the progressive adjustment of the cutting height.

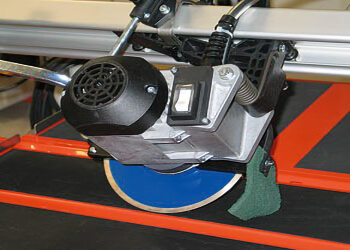

Engine
Engine, engineered for this machine only, is perfectly integrated on the rail. It runs on registrable bearings.
Millimetre Rail
Execution of the cuts in series due to the blocking handle with the immediate reading of the lenght on the rail.
Specifications
| Feature | Battipav VIP 260 | Battipav VIP 2125 |
|---|---|---|
| Side Bench Dimensions (in) | 23.6 x 15.9 | 46.1 x 20.5 |
| Machine Dimensions (in) | 45.3 x 17.9 x 49.2 | 73.6 x 24.6 x 52.8 |
| Weight (lbs) | 75 | 113.5 |
| Max Cutting Length (in) | 23.6 | 49.2 |
| Max Cutting Thickness (in) | 1.57 | 1.57 |
| Max Cutting Depth (45° / Jolly Cut) | 1.57 in | 1.38 in |
| Rotation Speed (RPM) | 2,800 | 2,800 |
| Engine Power | 1.3 HP / 1.0 kW | 1.8 HP / 1.4 kW |
| Voltage | 230V~50Hz (Single-phase) | 230V~50Hz (Single-phase) |
| Water Pump Type | S1 | S1 |
| Water Tank Capacity (L) | 25 | 45-50 |
| Max Cutting Depth (2-Pass) | 2.16 in | 2.16 in |
| Fence | Standard | Standard |
| Downloads | VIP 260 Product Brochure | VIP 2125 Product Brochure |
| SKU | VIP RADIAL |
|---|---|
| Manufacturer | Battipav |
| Blade Capacity | 8" |
| No Load Speed (rpm) | 2,800 |
| Dimensions (L x W x H) | 46" x 17" x 49" - 74" x 25" x 53" |
| Max Length of Cut (in.) | 25" - 49" |
| Max Depth of Cut (in) | 1.4" - 2" |
| Arbor Size | 5/8" - 1" |
| Depth of Cut at 45° (in.) | 1" - 1.5" |
| Diagonally Cuts (in.) | 18" - 35" |
| Motor | Single-phase, 230V~50Hz |
| HP | 1.3 - 1.8 |
| Voltage | 230 |
| Wet or Dry | Wet or Dry |
| Weight (lbs.) | 75 - 113.5 |
