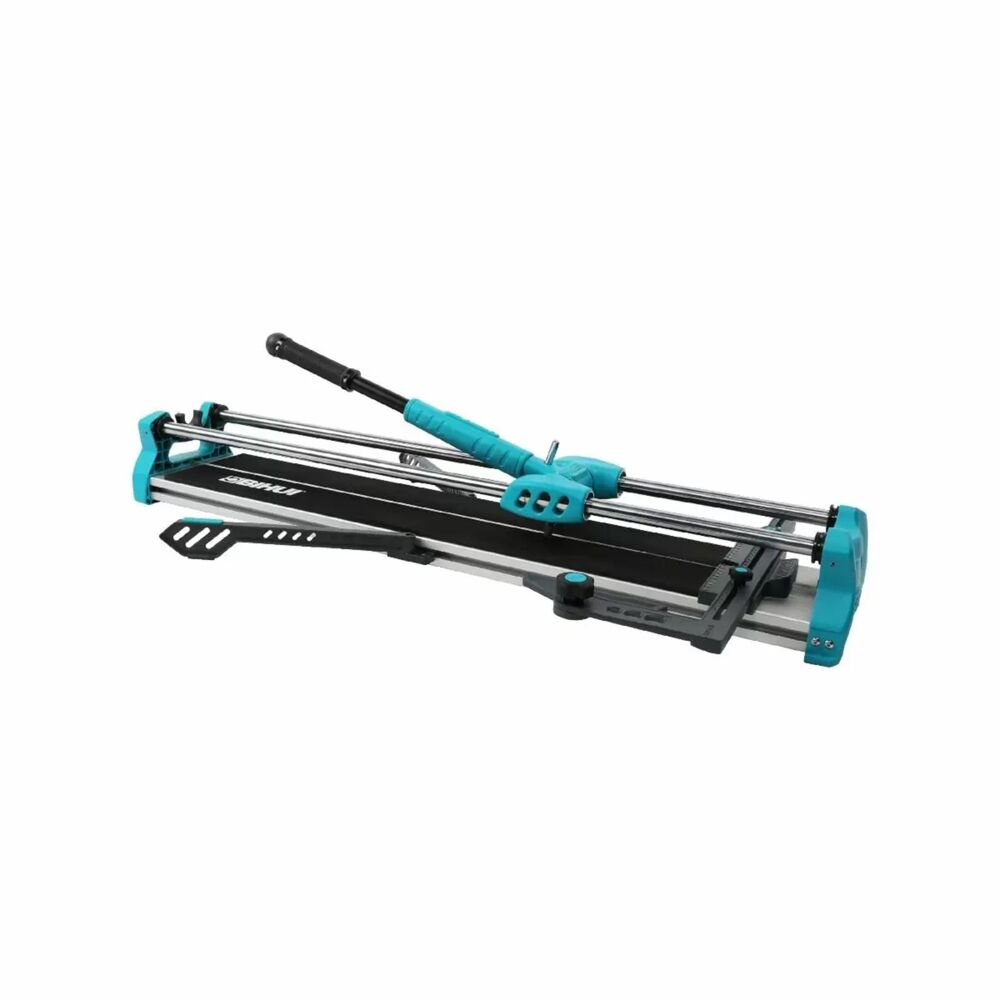

Bihui C-Lion Manual Tile Cutter w/LED Light
High-precision manual tile cutter with LED illumination, featuring a durable dual-layer aluminum chassis, magnetic breaking system, and interchangeable scoring wheels for clean, accurate cuts on all ceramic tile types.
Brand: Bihui
Availability: Ships from Factory (More Info)
Shipping: Standard (More Info)
Bihui C-Lion Manual Tile Cutter w/ LED Light — Precision Ceramic Tile Cutter
The Bihui C-Lion Manual Tile Cutter with LED Light is a professional-grade cutting solution engineered for clean, accurate cuts on all types of ceramic tiles—including wall tiles, polished tiles, and glazed tiles. Designed with a strong dual-layer aluminum alloy chassis, this cutter offers exceptional stability and long-lasting durability, ensuring consistent performance on demanding job sites.
Equipped with a tungsten carbide scoring wheel and an etched scale, it allows smooth scoring across various tile thicknesses. The anti-rotation handle enables quick scoring wheel changes from 1/4" (6 mm) to 7/8" (22 mm), with a 22 mm wheel included for immediate use.
For cutting power and precision, the magnetic absorption fast-release breaking device delivers up to 800 kg of breaking force, allowing single-handed operation while maintaining control and accuracy. An LED light enhances visibility along the cutting line, ensuring precise cuts even in low-light environments. Additional features such as an adjustable measurement guide, side ruler, anti-slip handle with tool storage, and models equipped with caster wheels for improved mobility make the C-Lion one of the most advanced manual tile cutters available.

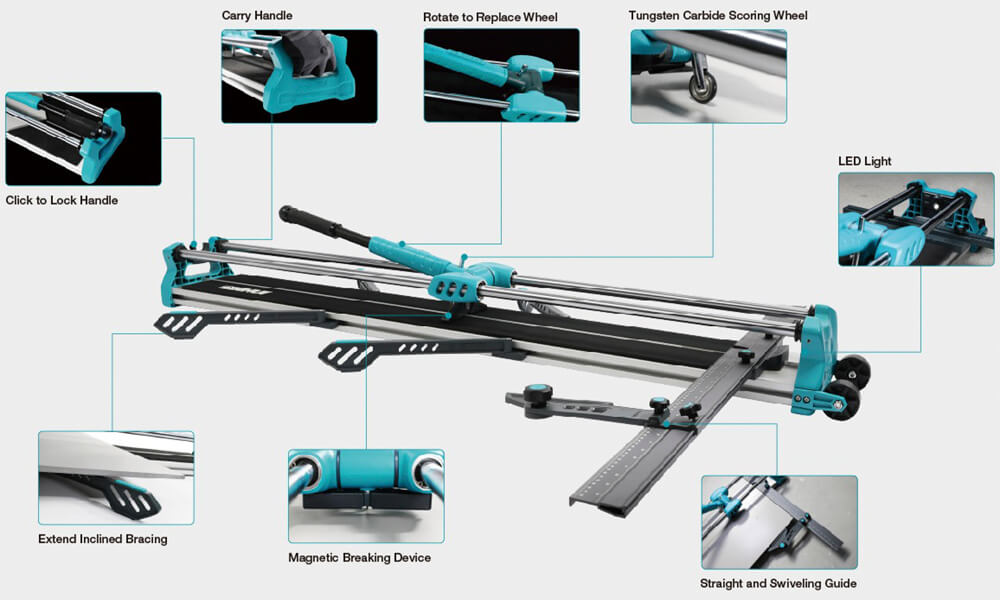

Key Features and Benefits
- Durable Dual-Layer Aluminum Chassis — Provides maximum strength, stability, and longevity
- Tungsten Carbide Scoring Wheel — Smooth scoring with etched scale for working with different tile thicknesses
- Interchangeable Wheels — Anti-rotation handle supports wheel changes from 6 mm to 22 mm; includes 22 mm wheel
- 800 kg Breaking Power — Magnetic absorption fast-release breaking device allows powerful single-handed tile breaking
- LED Illumination — Enhances visibility for precise cutting in any lighting conditions

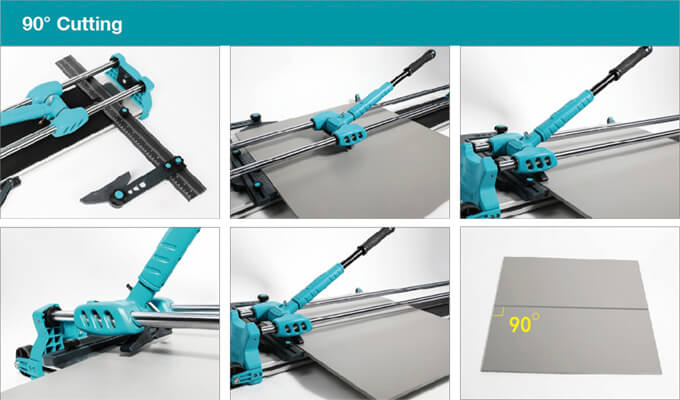

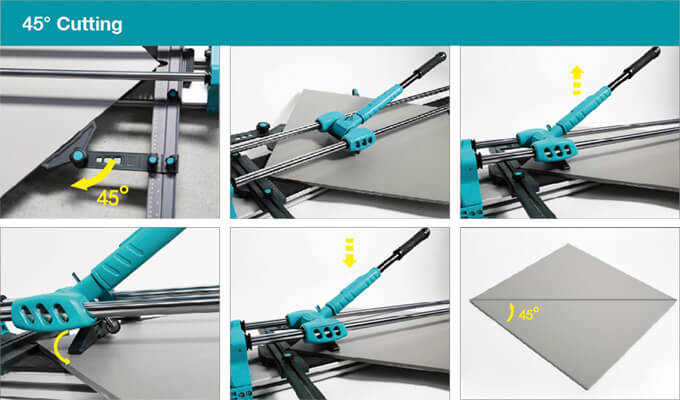

- Adjustable Measurement System — Side ruler and measurement guide for angled, straight, and repeat cuts
- Anti-Slip Handle with Storage — Comfortable grip plus built-in compartment for accessories
- Mobility-Friendly Design — 1.1 m and 1.2 m models equipped with caster wheels for easier transport
- Versatile Cutting Capability — Suitable for wall, polished, and glazed ceramic tiles

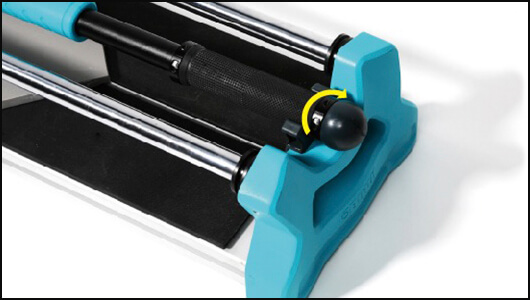

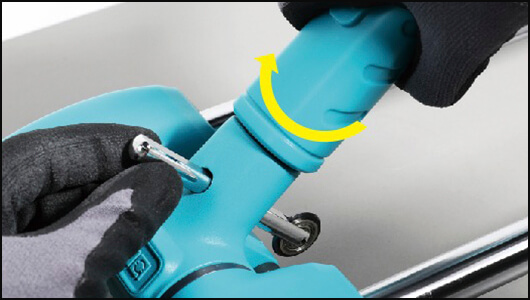

Screw to loose the ball cap, take out the scoring cutting wheel
Loose the handle and put in the cutting wheel then fasten the handle, choose 4 for cutting 4mm tiles, choose 10 for cutting 10mm tiles etc...
Specifications
| Art.No | Cutting Length (mm/in) | Diagonal Cutting Length (cm) | Cutting Thickness (mm) | Breaking Force (kg) | |
|---|---|---|---|---|---|
| TCB800 | 800 | 31-1/2 | 56 x 56 | 3 - 18 | 800 |
| TCB1000 | 1000 | 40 | 70 x 70 | 3 - 18 | 800 |
| TCB1200 | 1200 | 47-1/4 | 85 x 85 | 3 - 18 | 800 |
| Size (mm) | Scoring Wheel (mm) | Cutting length (mm) | Diagonal cutting length (mm) | Cutting height (mm) |
|---|---|---|---|---|
| 600 | 22 x 3 x 5 | 600 | 424 x 424 | 3 - 18 |
| 800 | 22 x 3 x 5 | 800 | 560 x 560 | 3 - 18 |
| 1000 | 22 x 3 x 5 | 1000 | 700 x 700 | 3 - 18 |
| 1200 | 22 x 3 x 5 | 1200 | 850 x 850 | 3 - 18 |
| SKU | T-MANUAL TILE CUTTER |
|---|---|
| Manufacturer | Bihui |
| Max Length of Cut (in.) | 31-1/2" - 47-1/4" |
| Max Depth of Cut (in) | 11/16" |
| Diagonally Cuts (in.) | 22" - 33" |
