Montolit Masterpiuma P3 Tile Cutters - 63P3 - 75P3 - 155P3

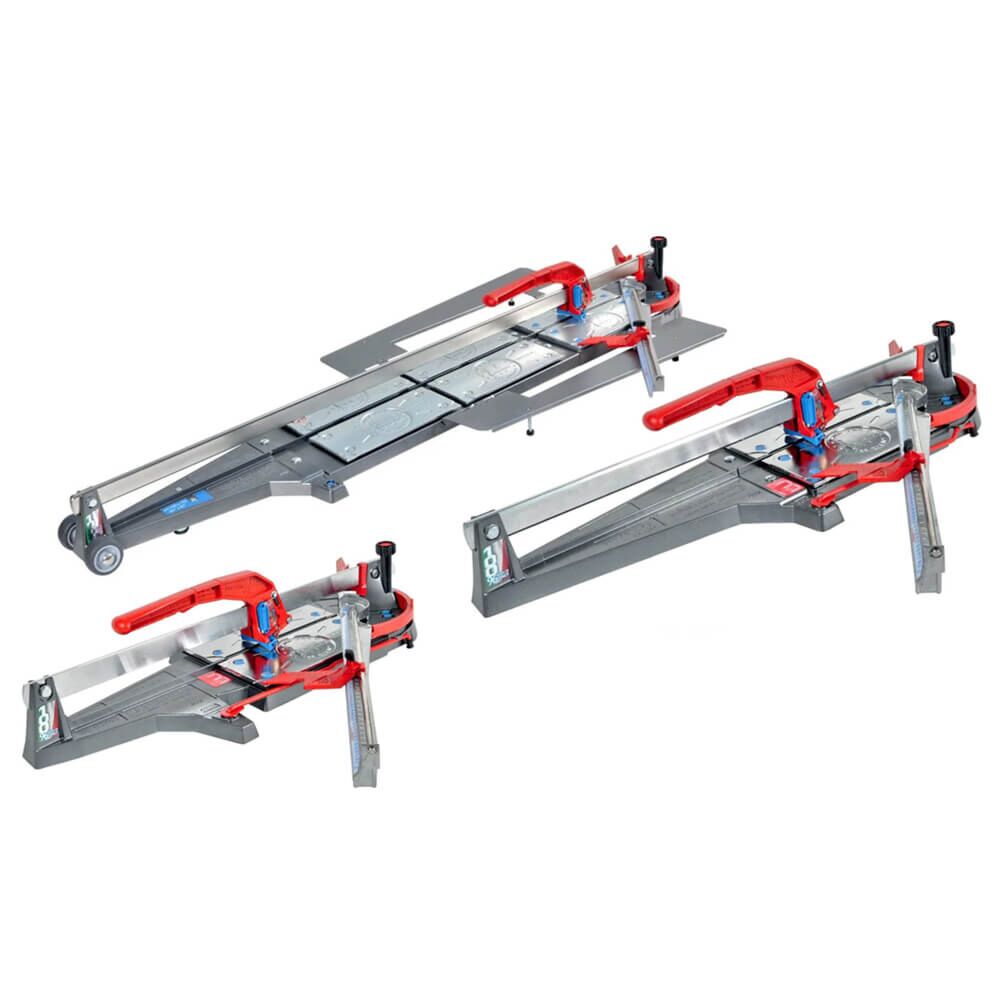

Montolit Masterpiuma P3 Push Tile Cutter — Professional Porcelain, Glass and Ceramic Tile Cutter

The Montolit Masterpiuma P3 Push Tile Cutter is one of the most advanced professional tile cutters on the market, engineered for installers who demand speed, accuracy, and reliability across all tile materials. Its innovative design allows clean, precise scoring and splitting even on thick or difficult porcelain, as well as glass tile and mosaics.

Featuring Montolit’s patented engraving system, the P3 provides consistent scoring with minimal effort, while the ergonomic push-style handle ensures total control. The dual splitting mechanism makes it possible to execute both straight and corner splits instantly—without lifting the handle after scoring.

The R.A.S. (Roller Adjuster System) enhances sliding accuracy by eliminating lateral movement of the tool holder carriage. Combined with the machine’s die-cast aluminum and nickel-plated steel construction, this ensures long-term durability and flawless performance even under heavy professional use.

The integrated lubrication system allows the installer to apply lubricant directly to the titanium-coated carbide scoring wheel, improving smoothness and extending tool life. The non-scratch breaking surface protects delicate materials such as glass mosaics.

The goniometric square includes two measuring scales: one for angled side measurements and another for 45° diagonal cuts. Both the square and the extension arm fold neatly into the body of the cutter, making transport and storage extremely convenient. Spring-loaded support tables and a pull-out side arm provide additional stability when cutting larger tiles.

Key Features and Benefits

• Ultimate All-Material Cutting Performance — Designed to cut porcelain stoneware, ceramic tile, glass tile, and glass mosaics with exceptional precision
• Patented Scoring System — Ensures smooth, consistent engraving across tiles of varying hardness and thickness
• Dual Splitting Mechanism — Delivers perfect breaks both during standard straight cuts and when splitting corners or mosaics—no need to lift or retract the handle after scoring
• Ergonomic Push Handle — Allows controlled scoring with minimal effort, reducing installer fatigue—especially on larger tiles
• R.A.S. (Roller Adjuster System) — An anti-friction device that eliminates side play and guarantees ultra-smooth, highly accurate sliding of the scoring carriage
• Durable, Professional Construction — Made from die-cast aluminum and nickel-plated steel for maximum rigidity, stability, and corrosion resistance
• Non-Scratch Breaking Support — Cut-off stand is made from a special scratch-resistant plastic ideal for delicate surfaces

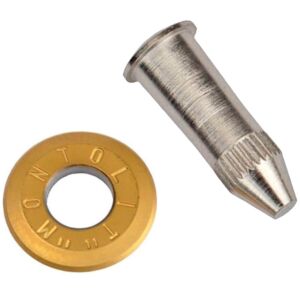

• Integrated Lubrication System — Built-in dispenser allows precise lubrication of the titanium-coated tungsten carbide scoring wheel when needed
• Complete Measuring System — Includes a dual-scale protractor square:
• side scale for exact angled cuts
• top scale for precise 45° diagonal cuts
• Foldable Design for Easy Transport — Square and extension fold fully into the machine’s footprint—no disassembly required
• Spring-Loaded Work Tables — Ensure safe and controlled tile splitting
• Large Tile Support — Pull-out side arm included for supporting larger tiles

Specifications

Downloads

Masterpiuma P3 Tile Cutter Instructions
