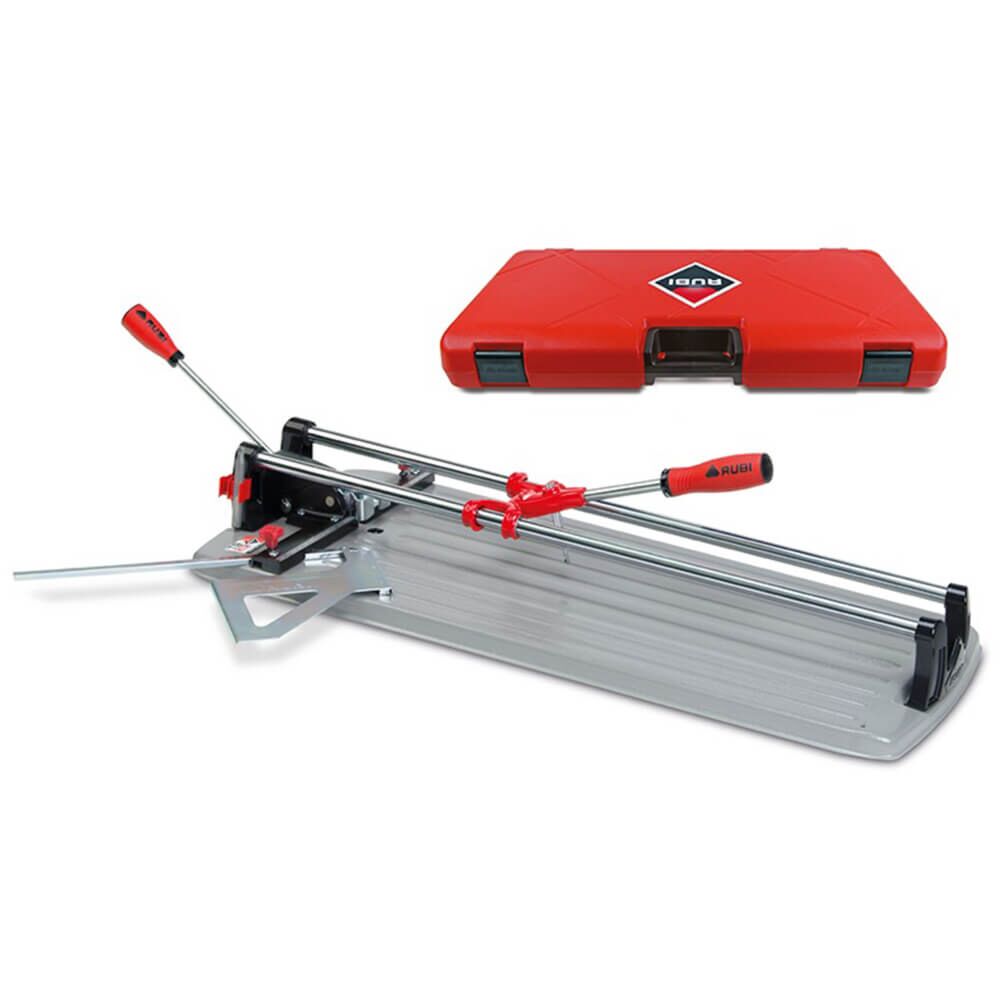

Rubi Tools TS-Max Series Tile Cutters w/ Case - TS 43, 66, 75
Lightweight yet powerful professional manual cutters designed for intensive cutting of ceramic tiles and frequent cutting of porcelain tiles (BIa). Featuring a Smart Power single-point breaker, ergonomic bi-material handle, and precision double-guide system.
Brand: Rubi Tools
Availability: Ships from Factory in 2 to 3 weeks (More Info)
Shipping: Standard (More Info)
Rubi TS-MAX Tile Cutters — Professional Manual Tile Cutter with Smart Power Function
The Rubi Tools TS-MAX Series Professional Manual Tile Cutters are engineered for tile installers seeking a lightweight, functional, and reliable cutting solution for intensive ceramic tile work and frequent porcelain tile cutting.
At the core of the TS-MAX design is the "Smart Power" single-point breaker, delivering up to 1,764 lbs of breaking force. This intelligent system automatically adapts the breaking pressure to the tile thickness, ensuring clean separation while reducing operator effort.
The double chromed steel guide system, rectified and calibrated with anti-corrosion treatment, provides exceptional scoring visibility and accuracy. Combined with the ergonomic bi-material handle and reinforced base, the TS-MAX series offers superior comfort, stability, and precision throughout the workday.
Each model is compatible with the full Rubi scoring wheel range and comes supplied with two wheels for immediate versatility. The included reinforced transport case ensures durability, protection, and easy jobsite mobility, making the TS-MAX series a dependable choice for professional tile installations.

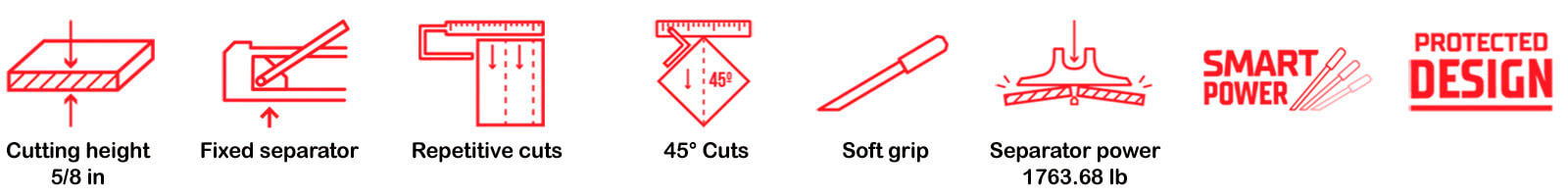

Key Features and Benefits
- Designed for Intensive Professional Use — Ideal for continuous cutting of ceramic tiles and regular cutting of porcelain tiles (BIa)
- Smart Power Single-Point Breaker — Automatically regulates breaking pressure based on tile thickness, ensuring optimal performance on both thin and thick materials
- High Breaking Capacity — Provides up to 1,764 lbs (800 kg) of breaking force, suitable for tiles up to 9/16" thick
- Precision Double Guide System — Two chromed steel guides, rectified and calibrated with anti-corrosion treatment, deliver excellent rigidity and clear visibility of the scoring line
- Ergonomic Bi-Material Handle — Comfort-focused handle design reduces fatigue and improves control during extended use
- Large Lateral Stop for Repetitive Cuts — Integrated side stop improves tile positioning and ensures high accuracy on repetitive and narrow cuts
- Reinforced Base Construction — Large, reinforced base provides stability, comfort, and vibration reduction during scoring and breaking
- Wide Scoring Wheel Compatibility — Compatible with the full Rubi interchangeable scoring wheel range from 1/4" to 7/8", allowing adaptation to different ceramic materials
- Scoring Wheels Included — Supplied with 1/4" scoring wheel for ceramic tiles and 13/32" scoring wheel for glazed stoneware
- Protective Transport Case — Includes a heavy-duty carrying case with reinforced latches and hinges for safe transport and storage
Specifications
| Model | TS-43 MAX GREY | TS-66 MAX GREY | TS-75 MAX GREY |
|---|---|---|---|
| Part # | 18972 | 18974 | 18975 |
| Cutting length (in) | 16-7/8 | 25 | 29-1/2 |
| Diagonal cutting length (in) | 11-3/4 x 11-3/4 | 18-1/8 x 18-1/8 | 20-7/8 x 20-7/8 |
| Cutting height (in) | 1/4 - 5/8 | 1/4 - 5/8 | 1/4 - 5/8 |
| Separator power (lb) | 1763.68 | 1763.68 | 1763.68 |
| Weight with carrying case (lb) | 19.40 | 29.54 | 33.28 |
Downloads
Rubi TS-Max Series Tile Cutters Product Brochure
Rubi TS-Max Series Tile Cutters User Manual
Rubi Large Format Ceramic Tile Installations Manual
| SKU | RUBI-TS MAX |
|---|---|
| Manufacturer | Rubi Tools |
| Dimensions (L x W x H) | 31.14" x 13.94" x 5.31" - 38.59" x 17.73" x 5.34" |
| Max Length of Cut (in.) | 17" / 22" / 26" / 29 1/2" |
| Weight (lbs.) | 19.4 - 34.8 |
