Rubi Tools TR-Magnet Series Tile Cutters w/ Case - TR-600, 710
Heavy-duty professional manual cutters designed for intensive ceramic tile cutting and frequent porcelain tile applications. Featuring a powerful Magnet one-hand operating system, mobile multipoint breaker, and swivel square for precise diagonal cuts.
Brand: Rubi Tools
Availability: Ships from Factory in 2 to 3 weeks (More Info)
Shipping: Standard (More Info)
Rubi TR-Magnet Tile Cutters — Professional Manual Tile Cutter with Magnet System
The Rubi Tools TR-Magnet Series Manual Tile Cutters are engineered for professional tile installers who demand power, precision, and durability for intensive ceramic and frequent porcelain tile cutting. Designed to handle tough jobsite conditions, the TR-Magnet cutters combine advanced mechanics with ergonomic one-hand operation.

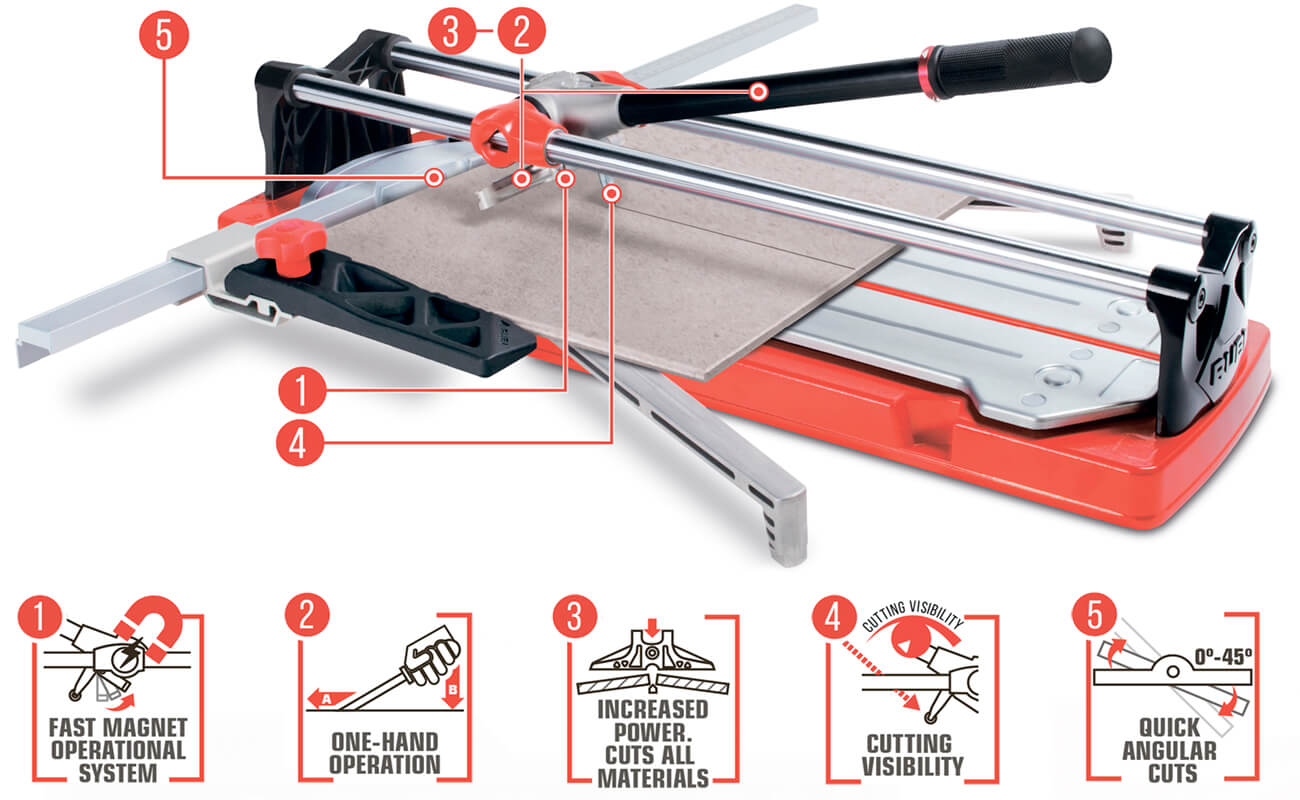

The Magnet system locks the breaker during scoring, improving visibility and control. With a simple upward movement of the lever, the mobile multipoint breaker is activated, delivering up to 1764 lbs of breaking force for clean, accurate cuts. The multipoint breaker design ensures even pressure distribution, making these cutters especially effective for diagonal cuts from end to end.
A central-pivot swivel square allows fast and precise angle cuts from -45° to 45°, while the double guide rail system enhances visibility and scoring accuracy. The reinforced two-layer aluminum base with shock absorption improves breaking performance and protects delicate tiles. Lateral supports provide additional stability for large-format tiles.
Key Features and Benefits
- Built for Intensive Professional Use — Ideal for intensive cutting of ceramic tiles and frequent cutting of porcelain tiles up to 9/16" thick
- Magnet One-Hand Operating System — Magnetic locking system allows scoring with one hand and quick activation of the breaker for faster, more precise cuts
- High Breaking Power — Applies up to 1764 lbs (800 kg) of breaking force for clean, controlled tile separation
- Mobile Multipoint Breaker — Ensures uniform pressure across the tile, delivering superior results on straight and diagonal cuts
- Precision Swivel Square — Central-pivot swivel square provides fast, accurate angular cuts from -45° to 0° to 45°
- Double Guide Rail System — Chrome-plated, rectified steel guides offer excellent visibility of the scoring line and high cutting precision
- Reinforced Floating Base — Two-layer aluminum base with shock-absorbing system improves breaking efficiency and tile protection
- Large Format Tile Support — Integrated lateral supports stabilize larger tiles during cutting
- Interchangeable Scoring Wheels — Compatible with the full Rubi range of scoring wheels from 1/4" to 7/8"
- Two Scoring Wheels Included — Supplied with 1/4" wheel for ceramic tiles and 13/32" wheel for glazed stoneware
- Heavy-Duty Transport Case — Reinforced case with strong latches and hinges ensures safe transport and storage
Specifications
| Model | TR-600 MAGNET | TR-710 MAGNET |
|---|---|---|
| Part # | 17907 | 17908 |
| Cutting length (in) | 23-5/8 | 27 |
| Diagonal cutting length (in) | 16-1/2 x 16-1/2 | 19-5/8 x 19-5/8 |
| Cutting height (in) | 1/8 - 5/8 | 1/8 - 5/8 |
| Separator power (lb) | 1763.68 | 1763.68 |
| Weight with carrying case (lb) | 30.64 | 34.17 |
Downloads
Rubi TR-Magnet Series Tile Cutters Product Brochure
Rubi TR-Magnet Series Tile Cutters User Manual
Rubi Large Format Ceramic Tile Installations Manual
| SKU | RUBI-TR-MAGNET |
|---|---|
| Manufacturer | Rubi Tools |
| Warranty | 5 Year Limited Warranty |
| Dimensions (L x W x H) | 33.46" x 13.39" x 6.3" |
| Max Length of Cut (in.) | 24" / 28" |
| Diagonally Cuts (in.) | 17" / 20" |
| Weight (lbs.) | 22.0 - 25.0 |
