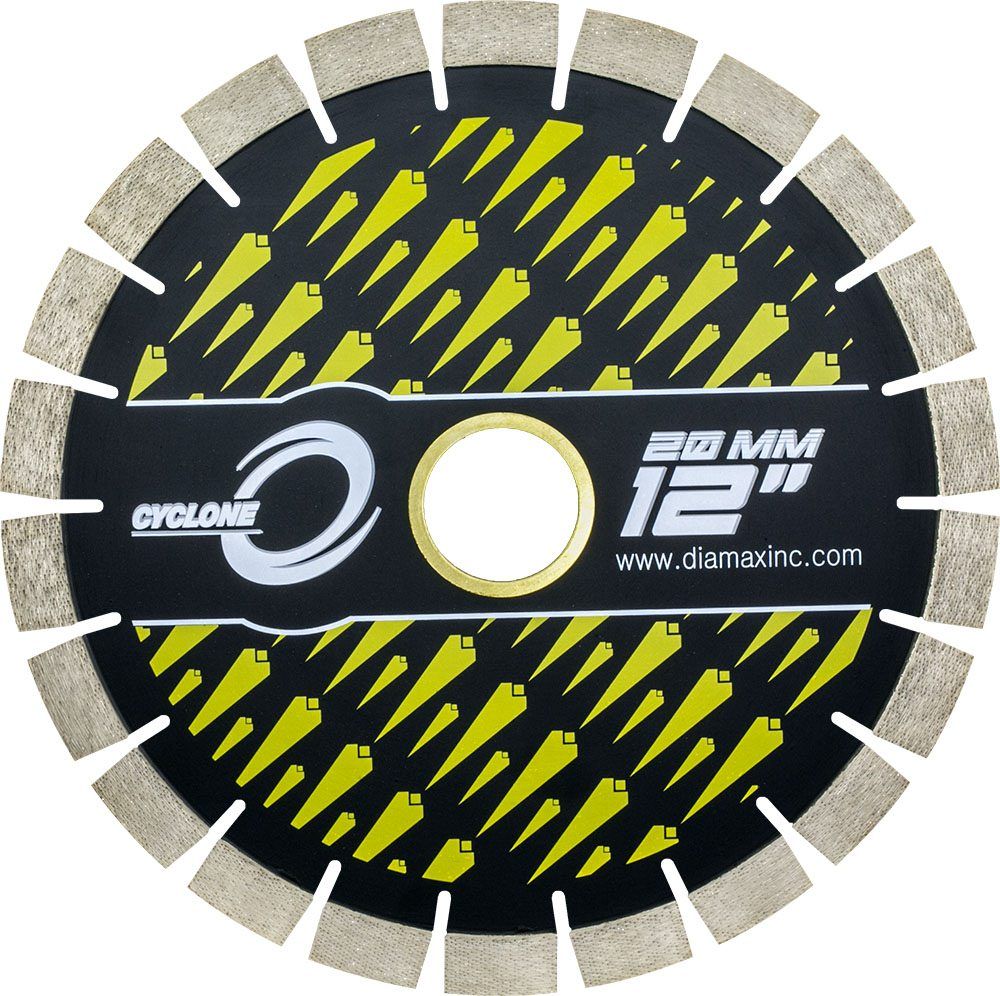

Diamax Cyclone Silent Core High Speed Diamond Blade The Diamax Cyclone Silent Core High Speed Diamond Blade features 9 layers of Diamond Arrayed Technology for fast precise cuts in granite, marble, quartz, and other hard stone material.
The Diamax Cyclone Silent Core High-Speed Diamond Blade Features:
9 layers of Diamond Arrayed Technology
Cyclone High Speed layered technology
Consistent cuts on granite, marble, and other quartz materials
Feed rate 10ft-17ft a minute
Segments are pressure tested to ensure solid welding
Available in your choice of 20mm or 26mm segment height
Wet cutting only
Diamax Cyclone Silent Core High-Speed Diamond Blade Specifications:
Item#
Size
Arbor
Max RPM
SCDA1420
14"
50/60mm
1,400 – 1,600
SCDA1426
14"
50/60mm
1,400 – 1,600
SCDA1620
16"
50/60mm
1,200 – 1,400
SCDA1626
16"
50/60mm
1,200 – 1,400
SCDA1826
18"
50/60mm
1,000 – 1,200
More Information SKU T-BLAD SCDA Manufacturer Diamax Blade Type Segmented Rim Arbor Size 50/60mm No Load Speed (rpm) 1,400 – 1,600 / 1,000 – 1,200 Ceramic Tile Performance Good Porcelain Tile Performance Good Glass Tile Performance Fair Marble Performance Excellent Wet or Dry Wet Only Segment Height (in) .787 - 1.023
