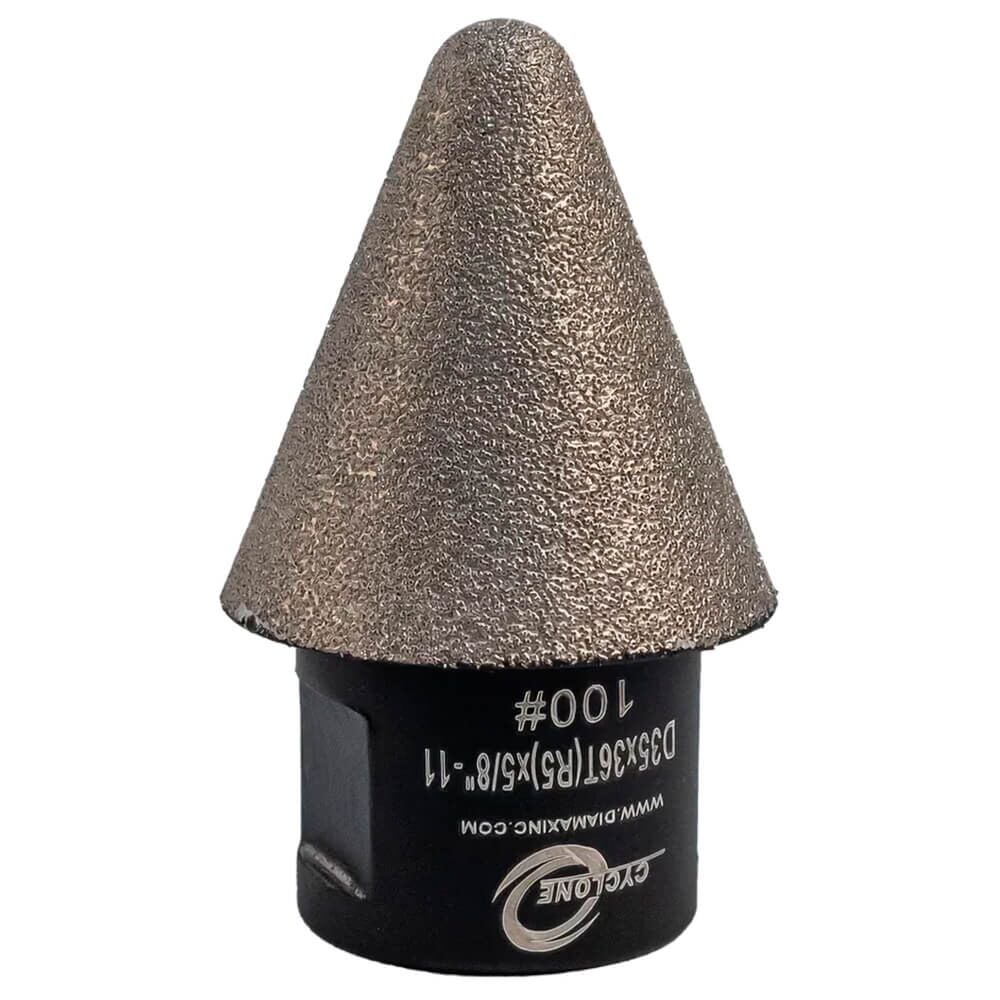

Diamax CDC100 Cyclone Diamond Cone
Expand and smooth small holes in porcelain, UCS, and granite with the Diamax Cyclone Diamond Cone. Its premium vacuum-brazed design delivers clean, precise bevels and prevents edge cracking.
$44.95
Brand: Diamax
Availability: Sold In Store - Ships From Store (2 available in store). (More Info)
Shipping: Standard (More Info)
SKU
T-CDC100
Diamax Cyclone Diamond Cone — Precision Hole Expanding Tool for Porcelain and UCS
The Diamax Cyclone Diamond Cone is engineered for precision hole expansion in porcelain, ultra-compact surfaces (UCS), and granite. Featuring a premium vacuum-brazed diamond bond, this tool delivers fast material removal while maintaining perfect control and leaving behind a clean, smooth beveled finish. Ideal for fabricators and tile installers who demand accuracy and durability when enlarging or refining core holes.
Can be Used on
Angle grinder, pneumatic machine
Material
Porcelain tile, Ultra-Compact, Granite
Use
Wet or Dry
Key Features
- Precision Hole Expansion — Ideal for enlarging small holes in porcelain, UCS, and granite.
- Premium Vacuum-Brazed Diamond Bond — Ensures consistent cutting performance and long tool life.
- Smooth Beveled Finish — Leaves polished, chip-free edges for a professional result.
- Durable, Shape-Retaining Design — Brazed diamond coating keeps the tool's original form, even after repeated use.
- Wet or Dry Use — Versatile performance for both shop and jobsite applications.
- Size Range — Expands from 1/4" tip up to 1 3/8" diameter.
Specifications
| Item # | Size (in) | Grit | Fitting | RPM |
|---|---|---|---|---|
| CDC100 | 1/4 Tip to 1-3/8 Diameter | Fine 100 | 5/8" – 11 thread | 3,000 – 4,000 |
| SKU | T-CDC100 |
|---|---|
| UPC | 8806000020466 |
| Manufacturer | Diamax |
| Manufacturer Part Number | CDC100 |
| Dimensions (L x W x H) | 1.35" x 1.35" x 2.21" |
| Wet or Dry | Wet or Dry |
| Weight (lbs.) | 0.33 |
