Diamax Cyclone Continuous Slot Rim Blade
Brand: Diamax
Availability: Sold In Store - Ships From Store (More Info)
Shipping: Free on orders over $49 to Continental US (More Info)

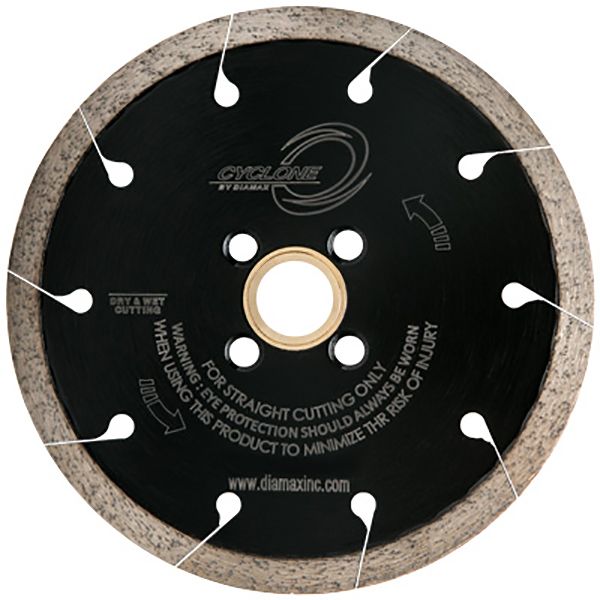

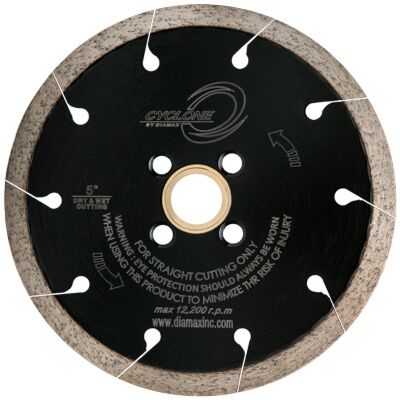

Diamax Cyclone Continuous Slot Rim Blade – Versatile Diamond Blade for Stone and Tile Cutting
The Diamax Cyclone Continuous Slot Rim Blade is a premium diamond cutting blade designed for smooth, fast, and precise cuts across a wide range of materials including granite, marble, porcelain, ceramic tile, and engineered stone. Favored by professionals in the countertop fabrication industry, this blade is ideal for cleaning seams and preparing stone for miter joints.
Its slotted continuous rim design delivers aggressive cutting performance while minimizing chipping (note: 10" size does not include slots). For sizes 12" and above, wet cutting is required for optimal performance and blade longevity.
Key Features
- High-performance diamond blade for granite, marble, porcelain, ceramic tile, and engineered stone
- Perfect for countertop fabrication, seam cleaning, and miter joint prep
- Slotted design provides fast, clean cuts with reduced chipping (except 10" blade)
- Compatible with angle grinders, wet saws, and bridge saws
- Wet cutting required for 12" and larger blades
Why Choose Diamax Cyclone Continuous Slot Rim Blade?
Engineered for clean, precise, and fast cutting. The continuous rim with cooling slots reduces vibration, prevents overheating, and extends blade life. Ideal for ceramic, porcelain, and natural stone, it delivers professional results without chipping.
Specifications
| Item # | Blade Size | Arbor Size | Max RPM |
|---|---|---|---|
| CSR040 | 4" | 5/8" – 7/8" – 20 mm | 15,300 |
| CSR045 | 4.5" | 5/8" – 7/8" – 20 mm | 13,200 |
| CSR050 | 5" | 5/8" – 7/8" – 20 mm | 12,200 |
| CSR060 | 6" | 5/8" – 7/8" – 20 mm | 10,000 |
| CSR070 | 7" | 5/8" – DKO | 8,600 |
| CSR100 | 10" | 5/8" – 7/8" – 1" | 6,100 |
| CSR120 | 12" | 5/8" – 7/8" – 1" | 6,300 |
| SKU | T-BLADE CSR |
|---|---|
| Non-Returnable | No |
| Manufacturer | Diamax |
| Blade Type | Continuous Rim |
| Arbor Size | 5/8" - 7/8" - 20 mm - DKO |
| No Load Speed (rpm) | 15,300 - 6,300 |
| Ceramic Tile Performance | Excellent |
| Porcelain Tile Performance | Excellent |
| Glass Tile Performance | Good |
| Marble Performance | Excellent |
| Wet or Dry | Wet or Dry |
