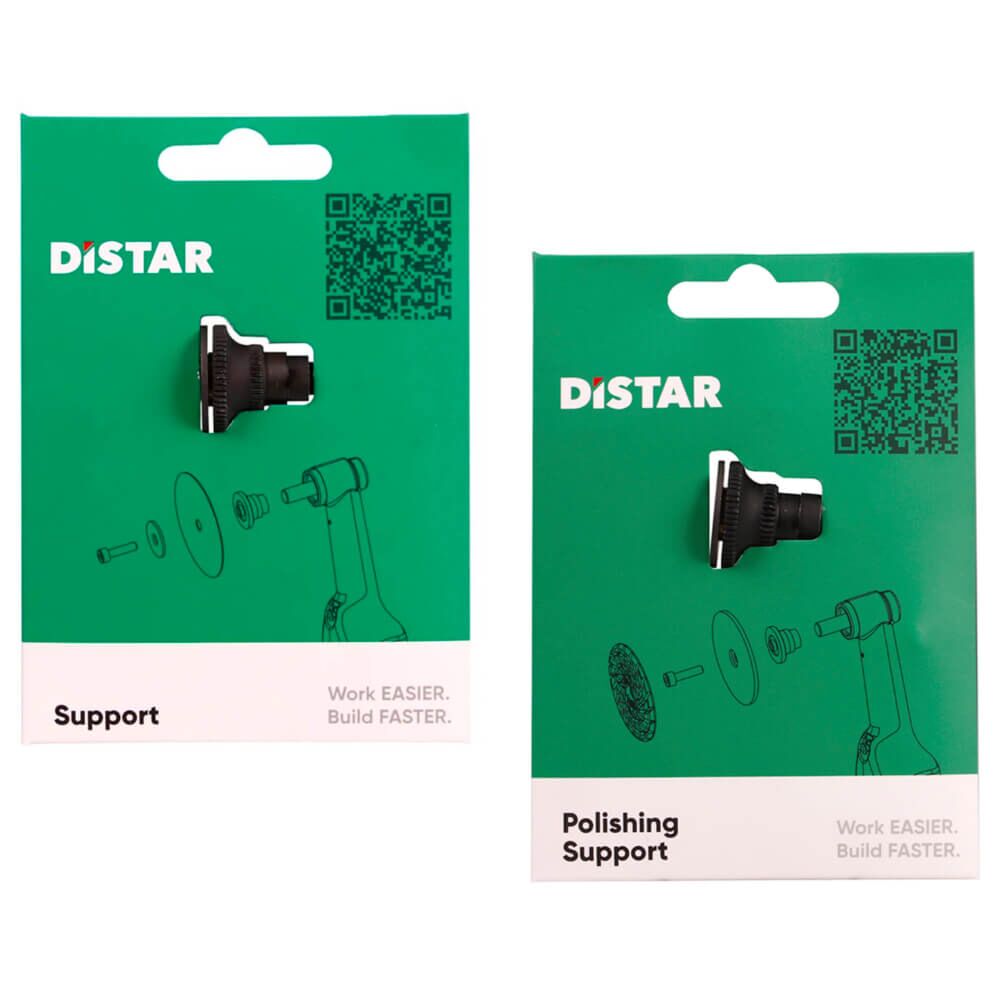

Distar Polishing Support Adapter for Proxxon Engravers
Distar Polishing Support is a universal adapter designed to provide stable, precise mounting of diamond discs, grinding cups, and polishing wheels on Proxxon engravers.
Brand: Distar
Availability: Sold In Store - Ships From Store (More Info)
Shipping: Standard (More Info)
Distar Polishing Support Adapter: Proxxon Diamond Tool Mounting
The Distar Polishing Support Adapter is designed to improve stability and precision when using diamond discs, grinding cups, and polishing accessories with Proxxon engravers.
When cutting or grinding porcelain stoneware with a collet clamp and standard adapter, tool slipping or loosening can affect control and accuracy. Excessive tool overhang can also place additional stress on the engraver bearings. The Distar Polishing Support provides a more stable mounting solution to help address these issues.
The support is compatible with a wide range of Proxxon engravers, including LWB, LWH, WP, and other compatible models. It is designed to accommodate Distar diamond discs with 5.8 mm and 9.6 mm mounting holes, as well as Nectar and Soft Edge grinding cups with a 5.8 mm mounting hole.
The universal design also features a base for mounting flexible polishing wheels, making the adapter suitable for cutting, grinding, edge processing, and polishing applications.
Key Features and Benefits
- Stable Tool Support
Helps prevent collet slipping and loosening during cutting and grinding applications for more consistent tool control - Reduced Tool Overhang
Provides a more stable setup than standard adapters, helping reduce excessive tool overhang and associated bearing wear - Universal Compatibility
Designed for use with Proxxon engravers including LWB, LWH, WP, and other compatible models - Multiple Mounting Options
Supports Distar discs with 5.8 mm and 9.6 mm mounting holes, as well as Nectar and Soft Edge grinding cups with 5.8 mm mounting holes - Supports Polishing Wheels
Includes a base for mounting flexible polishing wheels, expanding the capabilities of compatible Proxxon engravers - Precision Grinding and Polishing
Provides a stable connection for working with porcelain stoneware and other demanding materials - Versatile Diamond Tool Adapter
Combines support for cutting discs, grinding cups, and polishing accessories in one practical system
Downloads
| SKU | T-DIS ADAPTER |
|---|---|
| Manufacturer | Distar |
| Dimensions (L x W x H) | 2" x 2" |
| Arbor Size | 15/64" / 3/8" |
