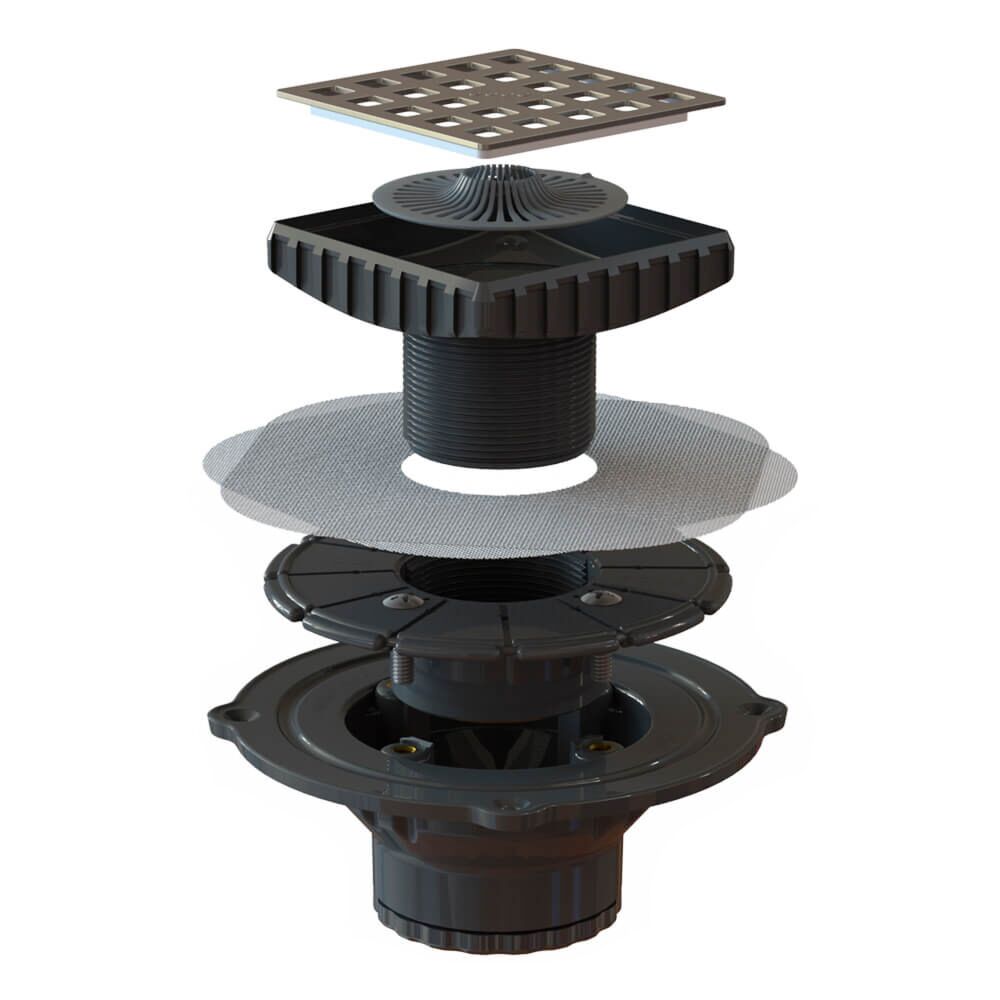

Ebbe Builder-Clamp ABS Collar Drain Bundle
This complete system combines a brushed stainless steel Builder Drain Cover, advanced clamp collar drain, Fast Weep Mesh protection, and the Ebbe Square Drain Riser — offering durability, installation efficiency, and future upgrade flexibility in one professional solution.
Brand: Ebbe
Availability: Sold In Store - Ships From Store (2 available in store). (More Info)
Shipping: Standard (More Info)
Ebbe Builder-Clamp ABS Shower Drain Bundle — Install Today. Upgrade Anytime
The Ebbe Builder-Clamp ABS Collar Drain Bundle is engineered to provide contractors and builders with a high-performance shower drain system that balances cost, durability, and ease of installation. Featuring a brushed stainless steel Builder Drain Cover and Ebbe’s latest clamp collar drain technology, this bundle delivers reliable waterproofing and long-term performance.
Innovative design elements—such as internal clamping screws, clamp heels, and a raised outer rim—simplify installation while ensuring a superior membrane seal. The drain fits a standard 4" subfloor cut and supports thick mortar beds up to 4", making it adaptable to a wide range of shower builds.
At the center of the system, the Ebbe Square Drain Riser acts as a universal platform for all Ebbe drain covers. Its square, frameless design allows for straight tile cuts only and creates a seamless, modern look. With built-in Fast Weep Mesh protection and an easy-to-clean hair trap, this drain bundle offers professional performance with minimal maintenance—now and in the future.
Key Benefits
- Install Once. Upgrade Anytime — The included Square Drain Riser allows seamless future upgrades to Ebbe PRO or UNIQUE drain covers without removing tile or modifying the drain body
- Builder Value Without Compromise — Delivers premium performance and stainless steel aesthetics for only slightly more than the cost of a drain body alone
- Reliable Waterproofing You Can Trust — Advanced clamp collar design with clamp heels and internal screws ensures consistent membrane compression and a secure, long-term seal
- Faster, Simpler Installation — Fits a standard 4" subfloor cut and installs with Phillips head screws—no specialty tools, odd cuts, or extra prep required
- Optimized Mortar Bed Compatibility — Supports thick mortar beds up to 4" by inverting the clamping ring, making it adaptable to a wide range of shower builds
- Unrestricted Weep Flow Performance — Ebbe’s Advanced Weep System with multiple channels, holes, and thread gaps ensures water drains freely from the mortar bed, preventing odor and moisture damage
- No Gravel. No Guesswork — Fast Weep Mesh eliminates the need for pea gravel, spacers, or broken tile—simply place mortar directly over the mesh and move on
- Clean, Frameless Tile Integration — Square riser design requires only straight tile cuts and delivers a seamless, screw-free finished appearance
- Built for Longevity — 100% stainless steel Builder Drain Cover resists corrosion and is designed to last a lifetime in wet environments
- Low Maintenance by Design — Smooth interior surfaces and an integrated hair trap make cleaning fast and hassle-free for long-term performance
Ebbe Drain Body Features:
- Raised Outer Rim — The raised rim helps you screed the pre-slope without hitting obstructions
- Clamp Heels — Clamp heels focus pressure on the outer edge of the clamping ring to provide the best clamp possible
- Internal Screws — The clamping bolts are located at the inner circumference of the drain. No need to make extra cuts or search for the bolts through the membrane
- Fits a 4" subfloor cut — A 4-inch hole saw makes the perfect cut. No beveled edges, no odd shapes to chisel out
- Phillips head screws — Don’t waste time looking for that wrench or socket. Simply use your drill with a Phillips bit
- Thick Mortar Bed Compatible — Invert the clamping ring to accommodate mortar beds up to 4"
- Easy Subfloor Mounting — A flat flange with 4 mounting holes allows the drain to be securely fixed to the floor
Ebbe’s Advanced Weep System
For optimal weepage:
- Thread Gaps
- 12 Weep Holes
- 12 Channels
- 12 Indentions
Fast Weep Mesh keeps mortar out of sensitive weep passages and allows water to flow freely to the drain.
Don’t waste your time with pea gravel, spacers, or broken tile.
Simply place the mortar directly over the Fast Weep Mesh.

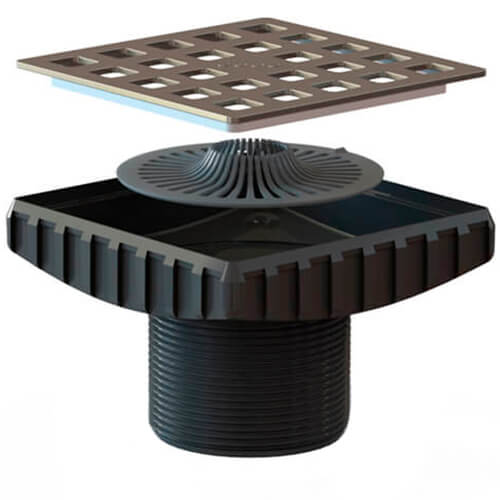

Ebbe Square Riser Features:
- Exceptional Value System — For only slightly more than the cost of a drain body alone, the Builder Drain Bundle includes both the drain body and a premium stainless steel Builder Drain Cover.
- 100% Stainless Steel Builder Drain Cover — Manufactured from solid stainless steel and finished in brushed stainless, the Builder Drain Cover is designed to last a lifetime.
- Future Upgrade Compatibility — The Builder Drain Cover can be easily replaced with an Ebbe PRO or UNIQUE Drain Cover at any time—no modification required.
- Bundle-Only Availability — The Builder Drain Cover is not sold separately and is exclusively available as part of the Ebbe Builder Drain Bundle.
- Proven Ebbe Quality — Built to Ebbe’s exacting standards, Builder drains deliver dependable performance for residential and builder-grade shower installations.
| SKU | T-DRAIN EZ EBDB-ABS |
|---|---|
| In the Box |
|
| Non-Returnable | No |
| Manufacturer | Ebbe |
| Manufacturer Part Number | EBDB-ABS |
