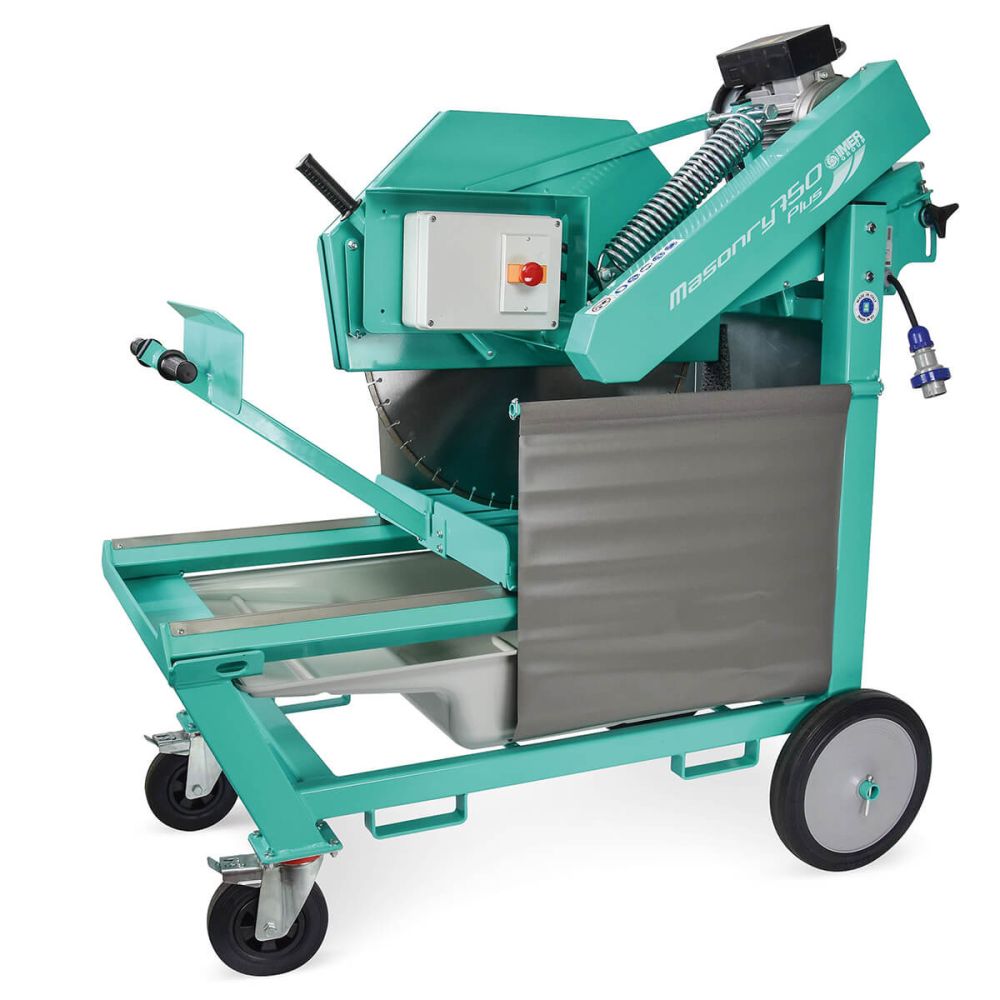

Imer Masonry 750 Plus - Block and Brick Saw
The Masonry 750 Plus allows operators to cut 8” and 10” blocks in a single pass – without the added hassle and effort of a foot pedal. The powerful 7.5 hp electric motor combined with the 30” blade delivers 12” of cutting depth.
Brand: Imer
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Free to Continental US (More Info)
The Masonry 750 Plus Brick & Block Saw allows operators to cut 8 inch and 10 inch blocks in a single pass – without the added hassle and effort of a foot pedal. The powerful 7.5 hp electric motor combined with the 30” blade delivers 12” of cutting depth. Cut through blocks, pavers, and pre-cast concrete products with ease. The frame and cutting tray are hand fabricated using heavy-duty steel, while the ergonomic design allows the operator to transport the saw with little effort.
Imer Masonry 750 Plus Brick & Block Saw Features:
- Low profile allows for easy loading and unloading of heavy pieces
- Built in forklift slots for easy loading to trucks
- Versatile with smooth and precise plunge cut ability
- Rigid high strength box steel frame design for rugged longevity
Imer Masonry 750 Plus Brick & Block Saw Specifications:
| Imer | Masonry 750 Plus |
| Blade Capacity | 30" |
| Blade shaft size | 1" |
| Cutting depth | 14" |
| Cutting length (w/plunge cut) | 18" (27") |
| Motor rating | 220V/60Hz, 6HP, Single-Phase or 220V/60Hz, 7.5HP, 3 Phase |
| Blade speed | 1700 rpm |
| Water pan capacity | 9 gal |
| Water pump flow | 3 gpm |
| Weight | 495 lb |
| SKU | MAS750PLUS |
|---|---|
| Manufacturer | Imer |
| Blade Capacity | 30" |
| No Load Speed (rpm) | 1700 |
| Dimensions (L x W x H) | 61" x 63" x 33 1/2" |
| Max Length of Cut (in.) | 18 / 27" |
| Arbor Size | 1" |
| Motor | 220V/60Hz, 6HP, Single-Phase or 220V/60Hz, 7.5HP, 3 Phase |
| HP | 7.5 |
| Voltage | 220 |
| Wet or Dry | Wet Only |
| Weight (lbs.) | 495 |
