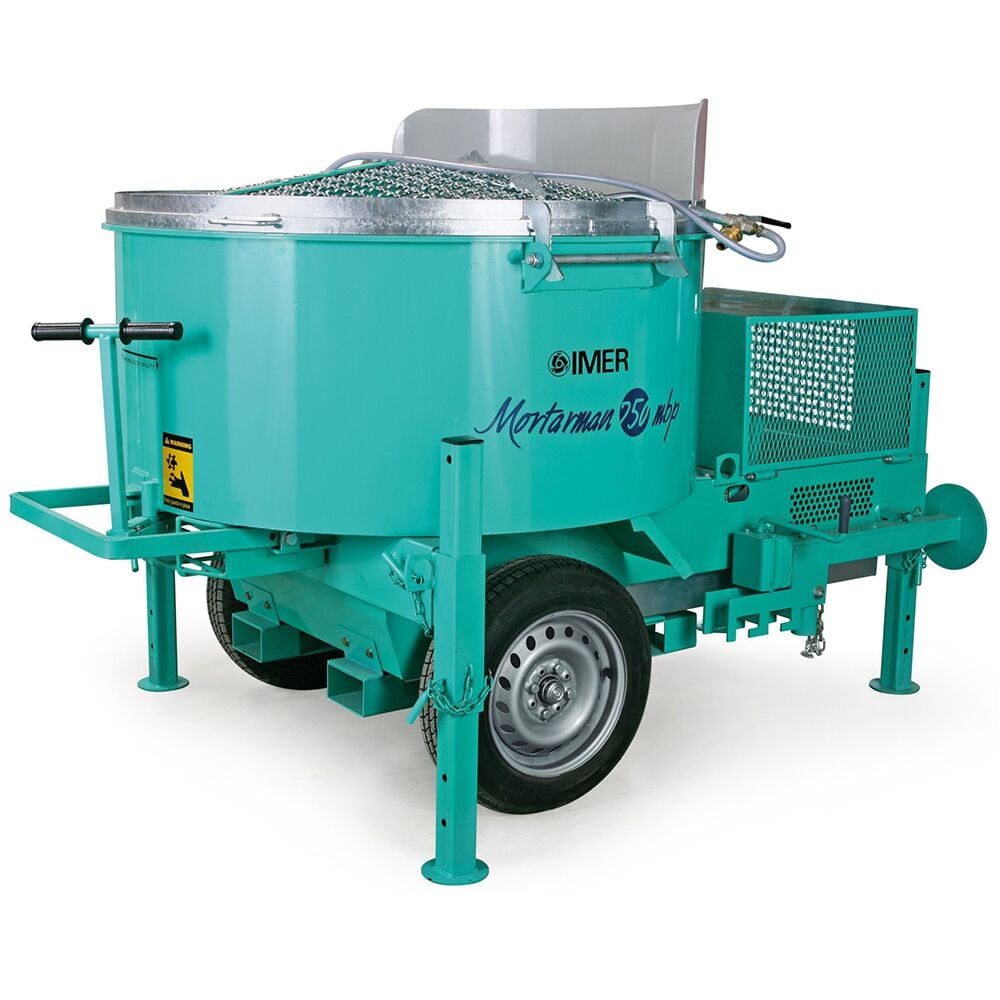

Imer Mix 750 Plus (Mortarman) Vertical Shaft Towable Mortar/Cement Mixer

The Imer Mix 750 Plus (Formerly named the Mortarman 750) will batch 16 cubic feet of mud every three to four minutes. Perfect for large precast mixing operations.
As low as $13,599.00

Brand: Imer

Availability: Ships from Factory (More Info)

Shipping: Standard (More Info)

Only %1 left
SKU
MM750

The Imer Mix 750 Plus (Formerly named the Mortarman 750) will batch 16 cu. ft. of mud every three to four minutes. These Imer mixers are perfect partners for busy precast mixing operations. The discharge system is now easier to open and close and better protected from being hit by the mud bucket or forklift. Output has been increased to 9-18 cu.ft. of mud every three to four minutes-perfect partners for busy precast mixing operations system.  The Mortarman 750 Safety Grate has been improved, it is now hinged, and access for clean up is immediate and complete. Mini Batch Plant production for the cost of a mortar mixer.

The paddle systems are powered by monster gearboxes which were developed in Imer's batch plant division. The included stability legs slide outward to accomodate a wide variety of mud pans. They can also be adjusted up or down depending upon the desired discharge height. These extra wide stability legs are standard on the Mix 750 MBP (Mortarman 750 MBP.)

**This Towable Mixer requires a forklift for removal from the shipping truck. It is too large for a lift-gate.**

Imer Mix Towable Mortar Mixer Specifications:

  Mix 360 Mix 750
Drum capacity 12 cu ft 22 cu ft
Batch output 9 cu ft 18 cu ft
Drum diameter 38" 52"
Maximum aggregate size 3/8" 3/8"
Discharge outlet height: max/min 30/18" 29/23"
Pneumatic wheels 18" 22"
Weight: electric/gas 787/794 lbs. 1588 lbs.
Electric motor rating 5 hp 220v 1ø or 3ø 5 hp 220v 1ø / 7.5 hp 220v 3ø
Gas engine 11 hp Honda 13 hp Honda w/elec. start

Download Product Brochure
Download User Manual
Download User Guide

More Information
SKU MM750
In the Box
  • Tow package - bar, hitch
  • 22" pneumatic highway tires and torsion bar suspension
  • 22 cu ft drum capacity
  • 16 cu ft batch output
  • Forklift pockets
Manufacturer Imer
Warranty One Year Warranty
Manufacturer Part Number 1194626
Drum Size 22 cu. ft.
Batch Size 18 cu. ft.
Motor Electric motor/Gas motor
HP 5 - 13
Dimensions (L x W x H) 90" x 63" x 62"
Weight (lbs.) 1588.00
