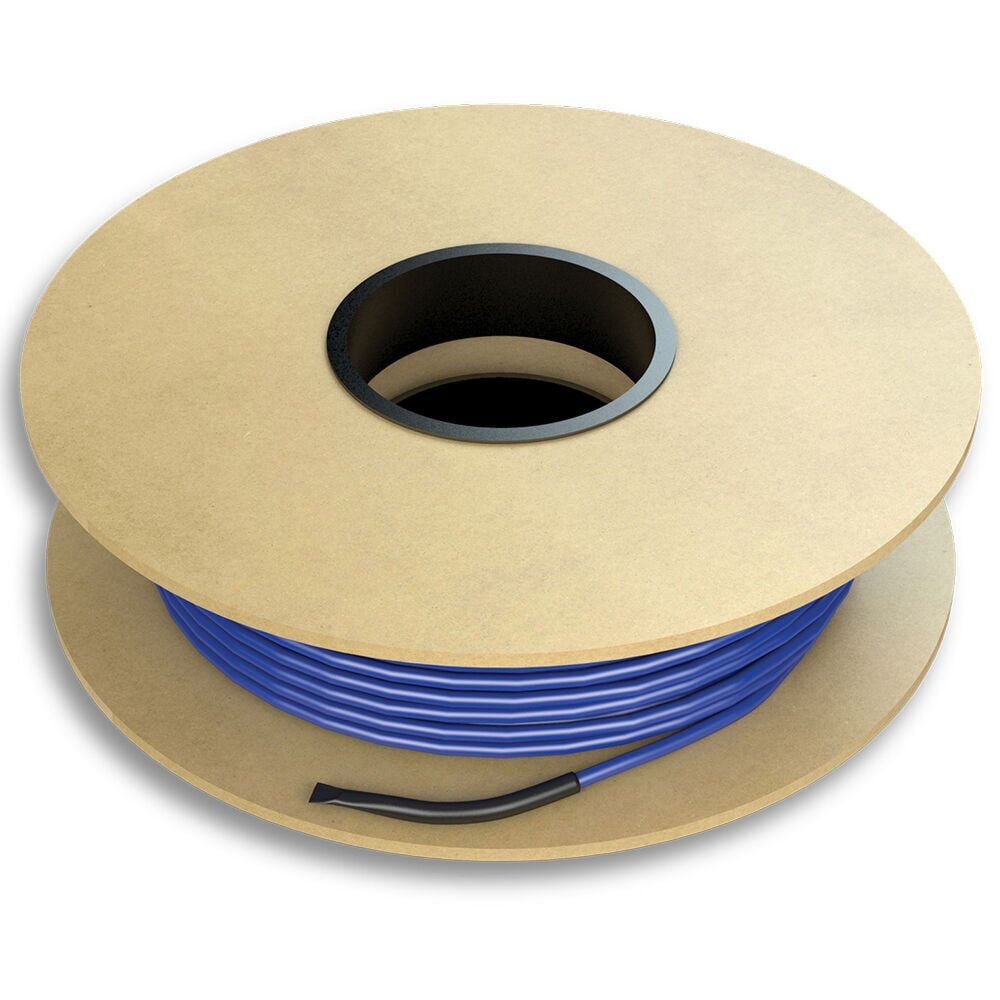

Laticrete Strata Heat Wire Heat Cable 240V
Brand: Laticrete
Availability: Sold In Store - Ships From Store (More Info)
Shipping: Free to Continental US (More Info)
Strata Heat Spliceless Wire is a productivity-based spliceless heat wire that maximizes heat transfer and simplifies the installation process. This floor warming wire system is designed for use under many types of finished floor coverings to provide luxury and comfort. It's designed for use with Strata Heat Thermostat, Strata Heat Mat and Strata Heat Spacing Strips. With Strata Heat Spliceless Wire there isn't any need to dig out the mat to bury splices between the cold lead and the heating portion of the wire or the heated wire termination. These spliceless junctions have a uniform diameter and easily fit into the Strata Heat Mat castellations.
Laticrete Strata Heat Wire 240V Features:
- Component of LATICRETE Lifetime System Warranty
- Spliceless design, to allow for an easier installation process
- No need to cut out the mat and/or the sub-floor to bury the cold lead
- Multiple spacing options allow for variability in heat output.
- This appliance wiring material component is recognized by Underwriters Laboratories, Inc. (UL) Representative samples have been evaluated by UL and meet applicable UL requirements.
Strata Heat Spliceless Wire 240V Specifications:
| Item # | Cable Length ft (m) |
2.5 Pegs Area ft2(m2) |
3 Pegs Area ft2(m2) |
4 Pegs Area ft2(m2) |
Amps Draw |
Watts Range (Ohms) |
| 0802-0083-4 | 83 (25.3) | 21 (1.9) | 26 (2.4) | 34 (3.1) | 1.4 | 325 |
| 0804-0100-4 | 100 (30.5) | 25 (2.3) | 31(2.8) | 41(3.8) | 1.6 | 390 |
| 0804-0133-4 | 133 (40.5) | 33 (3.0) | 41 (3.8) | 55 (5.1) | 2.2 | 535 |
| 0804-0166-4 | 166 (50.6) | 42 (3.9) | 52 (4.8) | 69 (6.4) | 2.7 | 670 |
| 0804-0200-4 | 200 (61) | 50 (4.6) | 62 (5.7) | 83 (7.7) | 3.3 | 800 |
| 0804-0233-4 | 233 (71) | 58 (5.3) | 72 (6.6) | 96 (8.9) | 3.8 | 935 |
| 0804-0266-4 | 266 (81.1) | 67 (6.2) | 83 (7.7) | 110 (10.2) | 4.4 | 1070 |
| 0804-0299-4 | 299 (91.1) | 75 (6.9) | 93 (8.6) | 124 (11.5) | 4.9 | 1205 |
| 0804-0332-4 | 332 (101.2) | 83 (7.7) | 103 (9.5) | 138 (12.8) | 5.5 | 1340 |
| 0804-0415-4 | 415 (126.5) | 104 (9.6) | 129 (11.9) | 172 (15.9) | 6.8 | 1675 |
| 0804-0498-4 | 498 (151.8) | 125 (11.6) | 155 (14.4) | 207 (19.2) | 8.2 | 2010 |
| 0804-0581-4 | 581 (177.1) | 146 (13.5) | 181 (16.8) | 241 (22.3) | 9.6 | 2345 |
| 0804-0664-4 | 664 (202.4) | 167 (15.5) | 207 (19.2) | 275 (25.5) | 11.0 | 2680 |
| 0804-0747-4 | 747 (227.7) | 188 (17.4) | 232 (21.5) | 310 (28.7) | 12.3 | 3015 |
| 0804-0830-4 | 830 (253) | 208 (19.3) | 258 (23.9) | 344 (31.9) | 13.5 | 3240 |
Download Brochure
Download Strata Heat System Sell Sheet
Download Strata Heat Spacing Chart
Download Strata Heat User Manual
Download Strata Heat Troubleshooting Guide
| SKU | L-STRATA 240V |
|---|---|
| Non-Returnable | No |
| Manufacturer | Laticrete |
| Voltage | 240 |
| Dimensions (L x W x H) | 9" x 9" x 3" |
