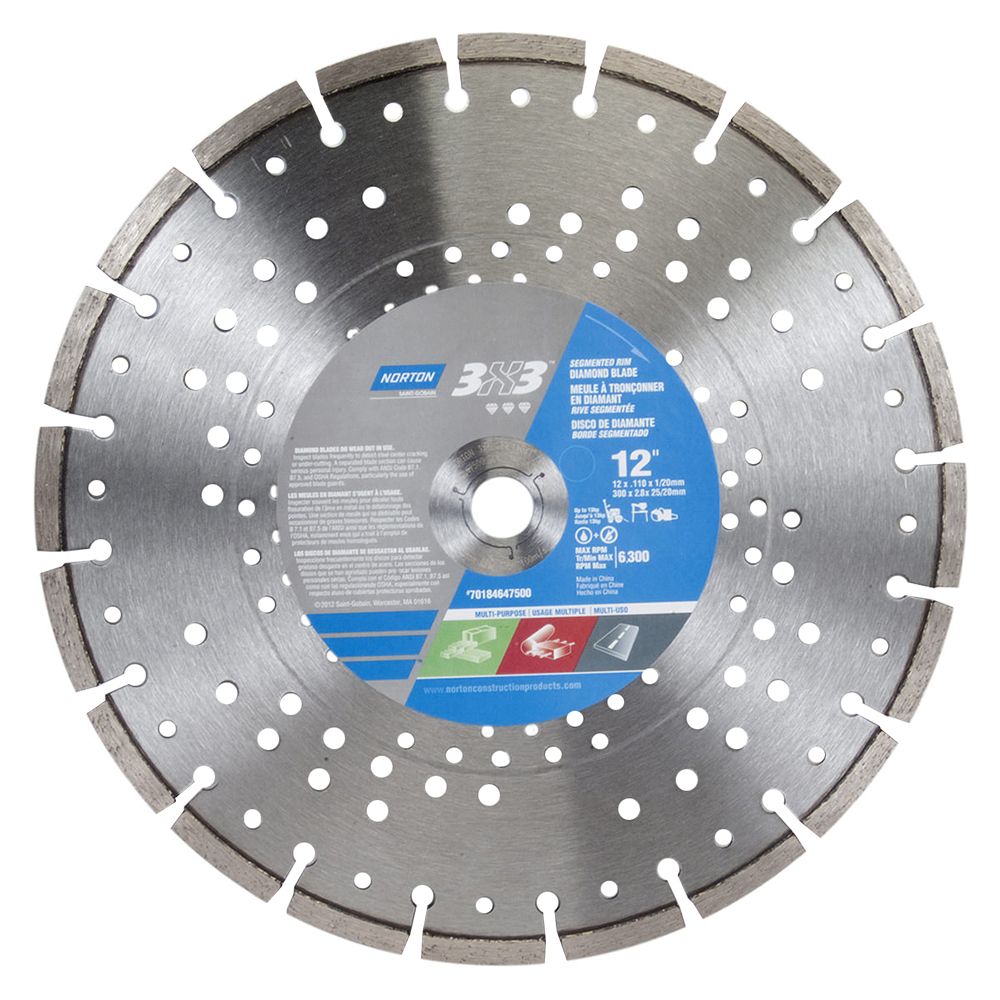

Norton 3x3 Multi-Purpose Concrete Diamond Blade

The laser welded 3X3 cuts concrete, reinforced concrete, asphalt and abrasive building materials and more.
As low as $102.92

Brand: Norton

Availability: Ships from Factory (More Info)

Shipping: Standard (More Info)

SKU
NORTON 3X3

Seen if for less? Buying in quantity? Make us an offer!

The laser welded 3X3 cuts concrete, reinforced concrete, asphalt and abrasive building materials and more. High quality diamond increases the speed of cut on a variety of materials without changing blades. Premium blade characteristics and price point where it would take multiple sintered blades to achieve.

Features:

  • Anti-Crack Gullet - The patented ellipsoidal gullets increase safety while significantly decreasing the risk of core cracking under the harshest conditions.
  • Wear Indicator - A new segment design has a built-in blade life gauge to signify 1/3 or 2/3 usage so operator can plan blade change needs.
  • Patented Depth Indicators - The stroboscopic depth indicators cut into the steel core helps control the depth of each cut, providing a non-wearing directional arrow, which also keeps the blade cool.
12" 14"
Size 12 x .118 x 1/20mm 14 x .118 x 1/20mm
MAX RPM 6300 5460
Segment Height .314" .314"
Part Number 70184647500 70184647499

More Information
SKUNORTON 3X3
Non-ReturnableNo
ManufacturerNorton
Net Weight (lbs.)2.16 - 4.00
Blade TypeSegmented Rim
Arbor Size1", 20mm
Ceramic Tile PeformanceNot Recommended
Glass Tile PeformanceNot Recommended
Thickness.118"
Wet or DryWet or Dry
Segment Height (in).314"
Size (L x W x H)12" x 12" x .118" - 14" x 14" x .118"
