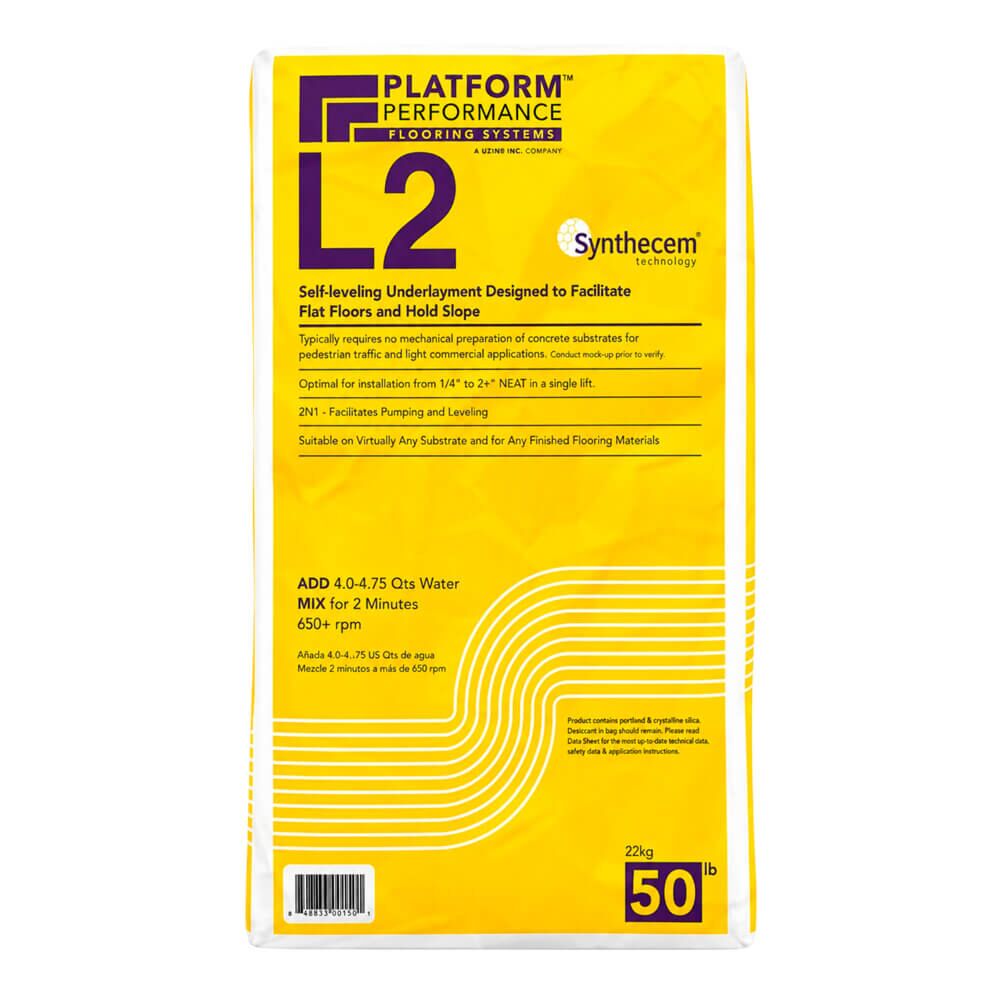

Platform L2 Self-Leveling Underlayment - 50 lb Bag

Surface Preparation

All Substrates must be sound, clean, dry and free of contaminants (oil, dirt, laitance etc.) that may interfere with adhesion. Areas of the floor that do not exhibit a tensile pull strength greater than 100 psi are not suitable and must be mechanically removed to a sound, stable base and subsequently repaired prior to application of Platform L2. Do not use solvents, acids, chemical adhesive removers to prepare the substrate. All bond breaking substances (cure residues, excess salts from silicates etc.) must be removed prior to priming. Completely vacuum all dust and debris from the substrate prior to priming with designated Platform primer.

Gypsum substrates must exhibit a sound surface, be free from dust and surface weakness prior to application of the primer.

Non-soluble adhesives must be scraped to a well bonded residue. Water soluble adhesives must be removed mechanically to the substrate. Verify type of adhesive prior to mechanical removal to ensure adhesive containing asbestos is not introduced into the environment. Follow all local, state and federal laws for removal and disposal of adhesive or flooring materials containing asbestos. Platform L2 is not for use as a suitable means to encapsulate residue of hazardous materials.

Wood floors must satisfy local building codes, utilize exterior grade plywood, suitable OSB or other resistant to water, and be free from deflection. The wood must be free of contaminants (oils, wax, dirt etc.) that could function as bond breaker prior to application of the primer. Platform recommends use of reinforcing lath when installing L2 over wood subfloors, contact technical support for details.

Substrate Priming

Prime properly prepared substrate with Platform P360 prior to the application of L2, Prime properly prepared porous (concrete) and non-porous substrates (adhesive residue, epoxy terrazzo, ceramic tile etc.) with Platform P360 by soft tipped broom (porous) or 3/8" nap roller (non-porous). Carefully read Primer data sheet to ENSURE Primer is utilized diluted (porous substrates) or undiluted (non-porous substrates) per given substrate.

Platform L2 is very flowable and will flow through any exposed voids. To avoid material flow in undesirable areas, seal voids or penetrations with a rapid setting patch or expanding foam. L2 has tremendous bonding properties, place tape or bond breaker on vertical surfaces that will contact the Platform L2. Provide a barrier between Platform L2 and metallic construction (e.g. heating pipes).

When applying Platform L2 on wood substrates, double prime with P360 NEAT and utilize reinforcing lath stapled to the wood floor after priming.

Mixing

Water: 4 - 4.75 US Qts (3.75 - 4.5 L) per 50 lbs (22.7 kg)

Mix Time: 2 minutes with minimum 650 rpm drill or through pump.

Over-watering and/or under mixing (failing to generate adequate shear) will result in lower ultimate compressive strengths.

Add designated clean, potable water to a clean mixing barrel, add the powder and mix at the designated speed for 2 minutes. Ensure all material is homogenous, and no dry lumps or unmixed material is at the bottom of the mix. During mixing, keep the paddle below the surface of the material to reduce introduction of excess air into the mix. Once mixed, pour onto the substrate immediately to maximize material flow and placement time.

Pumping

Platform L2 may be mixed and/or pumped with most standard batch or inline mixing/pumping equipment. Contact Platform Technical services for pump questions.

Material Application

Immediately after mixing is complete pour the mix on the substrate, rake to the required depth and smooth using appropriate tools (smoother or porcupine roller). When placing mixed material, maintain a wet edge, always pouring back into the leading edge of the previous placement.

Drying Time

Do not use forced air to assist in drying Platform L2, but do provide for adequate ventilation and circulation of air. Platform L2 generally hardens to accept light foot traffic 3 - 4 hours after placement. Avoid construction traffic for a minimum of 16 - 24 hours (temperature dependent).

L2 is self drying, do not wet cure or use curing or sealing compounds. To facilitate drying, ensure rooms where L2 is installed have air circulation. Do not introduce heavy airflow to the surface of L2 until after 16-24 hours of drying. Temperature, humidity and airflow will impact drying time. The use of a moisture meter is recommended to verify readiness for flooring. Multiple areas should be surveyed to ensure dryness throughout. Use of a Delmhorst G-79 and a reading of 5% moisture content or lower, or a GE Protimeter moisture meter such as the Aquant. In the RF (Radio Frequency) mode a ready of 180 or lower indicates suitable dryness for any floor covering.

General drying guidelines assuming ambient temps of 70ºF with air circulation (Cooler temperatures and/or high humidity will increase drying times);

Breathable Flooring Systems

Depth         Dry time required before installing flooring

0 - 1"           16 hours (next day)

1 - 2"           36 hours (1.5 days)

2 - 3"           60 hours (2.5 days)

Non-Breathable/Impervious Flooring Systems

Depth         Dry time required before installing flooring

0 - 1/2"       24 hours

1/2 - 1"       48 hours

1"                48 hours plus 36 hours for each additional 1/2"

Internal testing of the latest generation of high performance underlayments including L2 indicates bond of cementitious adhesives like thinset and patch is significantly enhanced with the use of a primer. When utilizing cementitious patch or setting materials(thinset) enhanced bond can be realized by priming dried L2 with P360 primer diluted at 3:1 (water:primer). For enhanced bond and resistance to the movement of moisture and alkalinity prime the L2 with P360 diluted.
