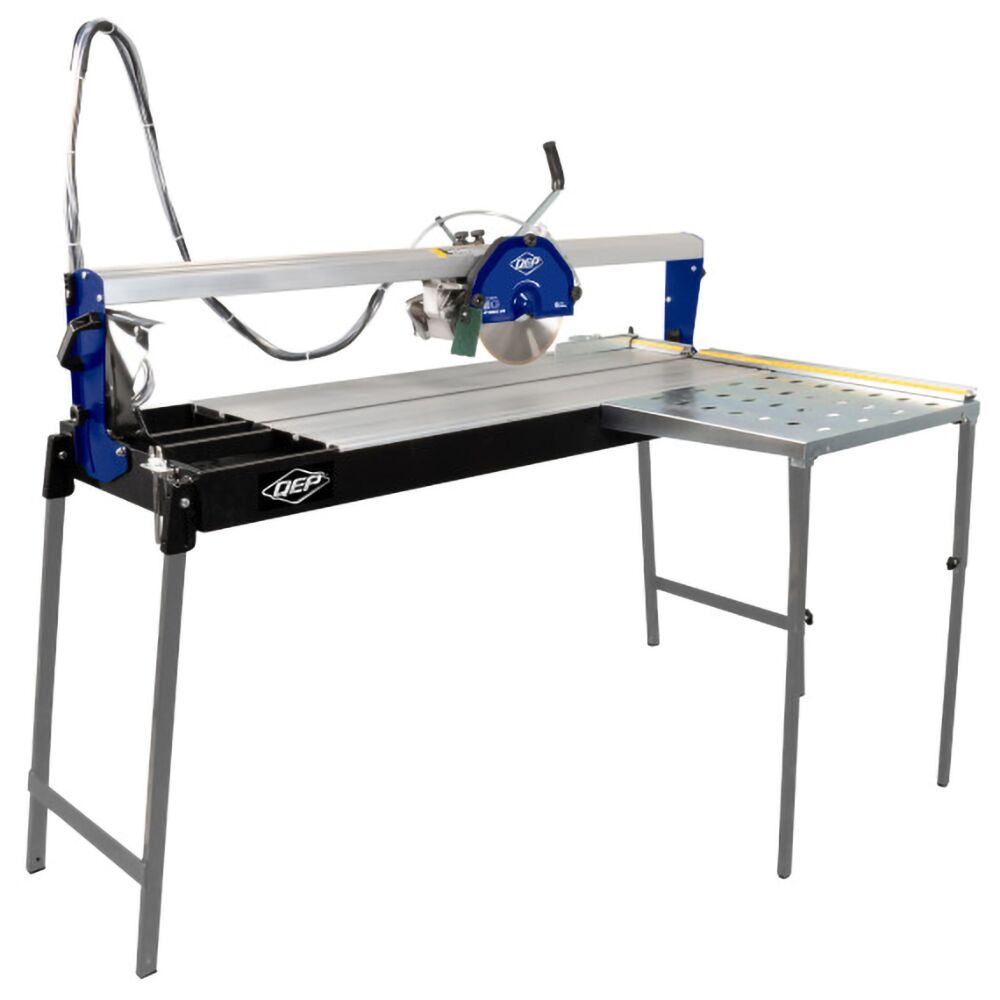

QEP 83249 Bridge Saw - 49"
Brand: QEP
Availability: Sold In Store - Ships From Store (2 available in store). (More Info)
Shipping: Standard (More Info)
QEP 83249 Bridge Saw — Power. Precision. Performance
The QEP 49" Bridge Saw is engineered for professional contractors seeking power, precision, and durability when cutting large-format tiles, porcelain, and stone. Featuring a 1.8 HP plunging motor (1400 W) and a premium 10" diamond blade, it effortlessly handles straight cuts up to 49" with plunge and diagonal cuts up to 34-1/2", with a maximum cutting depth of 2-3/4" (1-1/2" single pass).

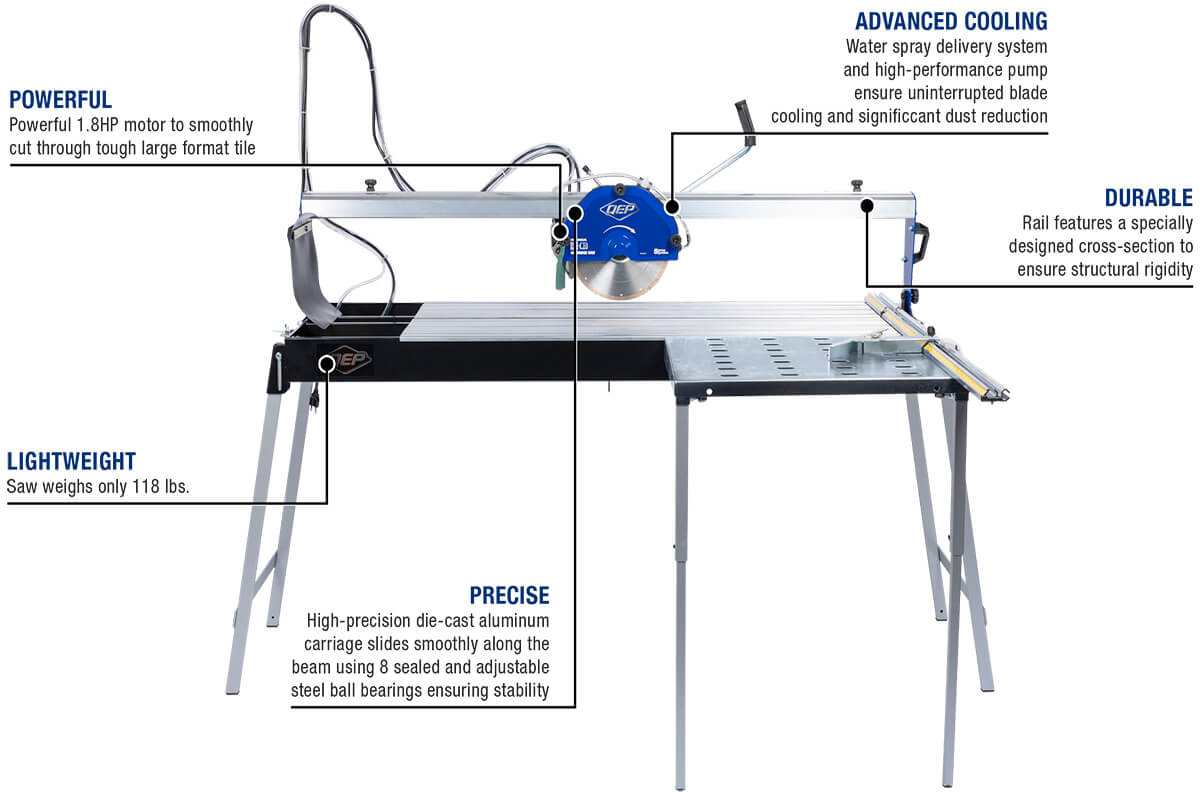

Designed for consistent accuracy, the high-precision die-cast aluminum carriage glides smoothly along the rail on eight sealed and adjustable steel ball bearings, ensuring stability and flawless cuts every time. The tilting rail allows for precise angle cuts up to 45°, expanding versatility for complex installations.
The integrated water spray system with a high-performance pump provides efficient blade cooling, extends blade life, and minimizes dust during operation. Its lightweight 118 lb. frame, folding legs, and detachable side table make it easy to transport and set up on any jobsite.

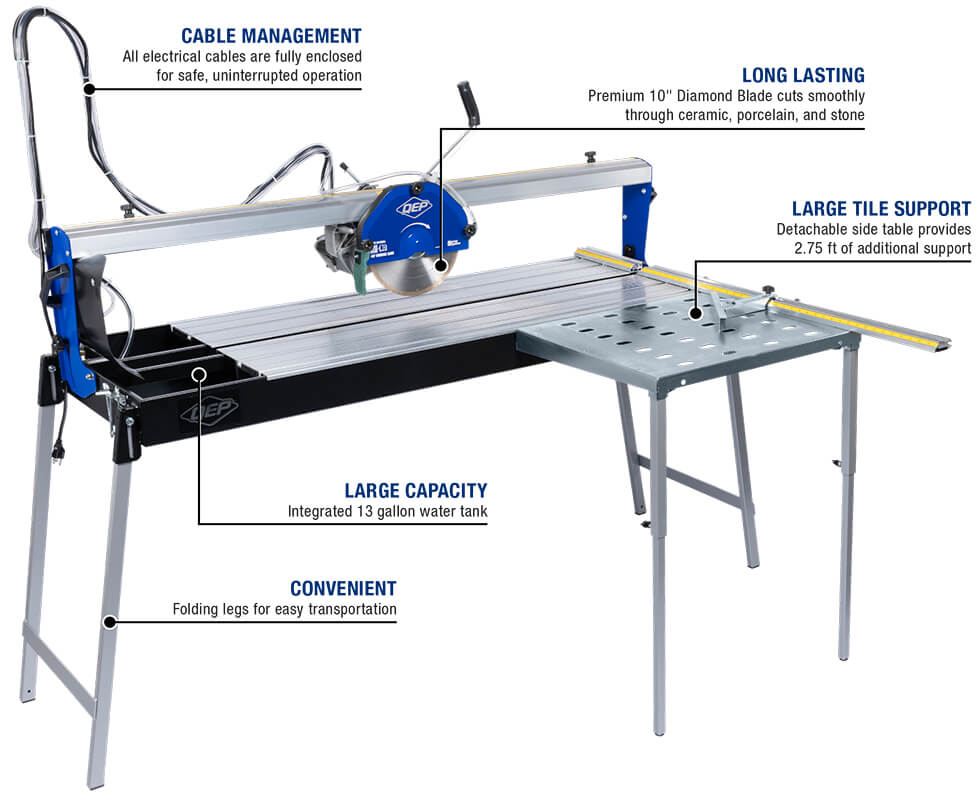

With its fully enclosed cable system, rigid cross-section rail, and 13-gallon integrated water tank, the QEP 49" Bridge Saw offers long-lasting reliability, safety, and convenience for demanding tile professionals.
Benefits
- Faster, smoother cutting performance — the 1.8 HP motor and premium 10" diamond blade deliver powerful, precise cuts through porcelain, ceramic, and stone with minimal effort.
- Superior accuracy on every cut — the precision die-cast aluminum carriage with 8 sealed ball bearings ensures ultra-smooth, stable sliding motion for flawless results.
- Versatile cutting options — straight cuts up to 49", diagonal cuts up to 34-1/2", and a tilting rail for accurate miter or bevel cuts up to 45°.

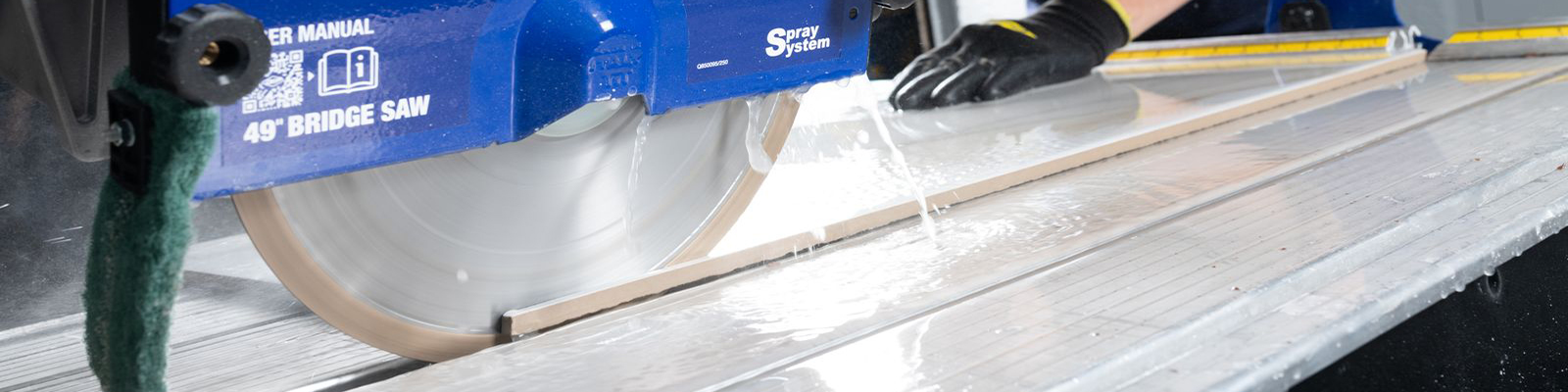

- Clean, cool operation — the integrated water spray system and high-performance pump maintain optimal blade temperature and drastically reduce dust.
- Work longer without refills — the large 13-gallon water tank allows uninterrupted operation on big projects.
- Lightweight yet durable — weighing only 118 lbs, it’s easy to transport, set up, and store, while maintaining structural rigidity.
- Professional results anywhere — folding legs and detachable side table provide flexibility and stability on any jobsite.
- Built for longevity — enclosed electrical cables and a reinforced rail design enhance safety and long-term durability.
- Reduced downtime and cleanup — tool-free setup, efficient water management, and smooth operation save time on every job.
Key Features
- Powerful 1.8 HP (1400 W) motor – delivers smooth, efficient cutting through tough, large-format tile and stone.
- 10" premium diamond blade – ensures fast, clean cuts with long blade life.
- Advanced water spray system – high-performance pump provides continuous cooling and dust reduction.
- Extended cutting capacity – 49" rip with plunge, 34-1/2" diagonal with plunge, 2-3/4" maximum depth.
- Precision die-cast aluminum carriage – slides on 8 sealed, adjustable ball bearings for unmatched accuracy.
- Tilting rail (up to 45°) – supports miter and bevel cuts for professional finish work.
- Lightweight and portable (118 lbs) – folding legs and detachable side table for easy transport and setup.
- Large 13-gallon water tank – integrated for longer cutting sessions without interruption.
- Fully enclosed cable management – ensures safe, reliable operation.
- Durable frame construction – reinforced cross-section rail maintains structural rigidity over time.
Plunge Function for Interior Cutouts
Tilting Rail for Angle Cuts Up to 45 Degrees
Convenient Tool Holder to Store Included Tools
Wheels Provide Easy Transport
Specifications
| Model | 83249 | Type | 49" Bridge Saw |
|---|---|---|---|
| Motor Power | 1.8 HP / 120 V – 60 Hz / 12 A | Wattage | 1400 W |
| RPM | 3400 | Blade Size | 10" (Premium Diamond Blade) |
| Arbor Size (in) | 5/8 | Max Cutting Depth (in) | 2-3/4 (1-1/2 single pass) |
| Rip Cut Capacity (in) | 49 (with plunge) / 47 (without plunge) | Diagonal Cut Capacity (in) | 34-1/2 (with plunge) / 32 (without plunge) |
| Tilt Range | Up to 45° | Water Tank Capacity | 13 gallons |
| Dimensions (L x W x H) | 63" x 20.3" x 33" | Weight (lbs) | 118 |
| Construction | Aluminum carriage on sealed steel bearings | Cooling System | Integrated water spray with pump |
Downloads
| SKU | T-TILESAW QEP 83249 |
|---|---|
| In the Box |
|
| Manufacturer | QEP |
| Manufacturer Part Number | 83249 |
| Blade Capacity | 10" |
| No Load Speed (rpm) | 3,400 |
| Dimensions (L x W x H) | 63" x 20.3" x 33" |
| Max Length of Cut (in.) | 49 |
| Max Depth of Cut (in) | 2-3/4" |
| Arbor Size | 5/8" |
| Diagonally Cuts (in.) | 34-1/2" |
| HP | 1.8 |
| Amps | 12 |
| Voltage | 120 |
| Wet or Dry | Wet Only |
| Weight (lbs.) | 118 |
