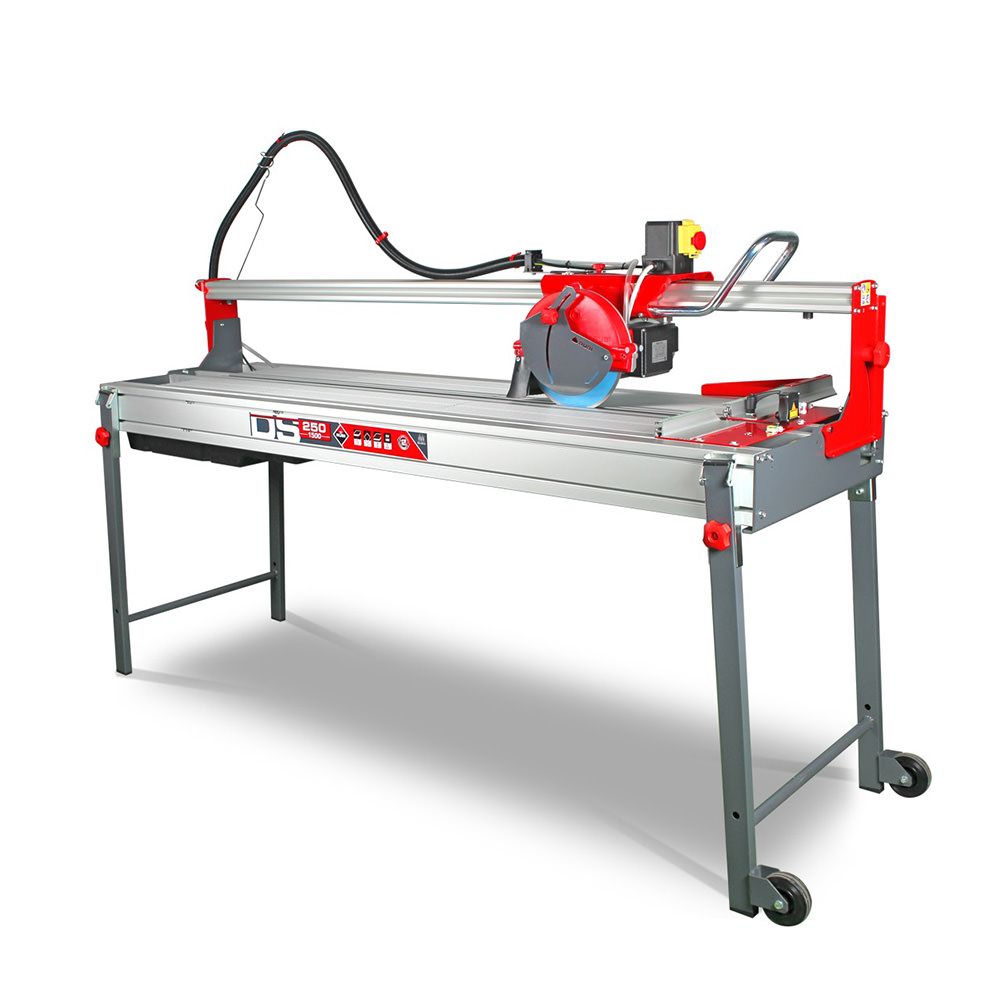

Rubi Tools DS-250-N Laser and Level Wet Saw

The Rubi Tools DS-250-N Laser and Level Wet Saw includes a powerful 3hp motor mounted on sliding bearings for maximum precision and cutting quality, and a 10" blade capacity.
As low as $2,500.00

Brand: Rubi Tools

Availability: Ships from Factory (More Info)

Shipping: Standard (More Info)

Only %1 left
SKU
RUBI DS-250-N

With its powerful 3 HP motor the Rubi Tools DS-250-N Laser and Level Wet Saw is ideal for the cutting and mitering of all types of ceramic tiles and especially porcelain tiles. Of course, the DS-250-N 1300 and 1500 are also an excellent solution for cutting natural stones such as marble, granite, slate, etc.

The motor assembly is mounted on sliding bearings for maximum precision and cutting quality, which helps obtain perfect cuts. The aluminum structure of the DS-250-N's is light and durable. Thanks to the protector that includes the cutting head, this saw can use a variety of continuous rim, turbo, segmented rim blades.

The system of retractable legs offers extra protection during transport and storage of the electric cutter and mitre saw. And its built-in wheels facilitate handling and movement over short distances at the same site. Maintenance is minimal, thanks to the aluminum chassis, and daily cleaning is simple with the removable tables and trays.

The Rubi DS Series Tile Saws now feature the Rubi Zero Dust System. RUBI is strictly committed to the safety of professional tile installers. For this reason, Rubi has developed the ZERO DUST system which is in collaboration with TNO (The Netherlands Organization for applied scientific research) as part of the DUST FREE WORKING program. This ZERO DUST system reduces the total amount of breathable quartz dust particles, providing a clean and safe working environment.

These saws include a 2 mW power laser tracer (Class 2) that facilitates cutting visibility and positioning, as well as a spirit level system for installing the electric cutters and mitre saws at the worksite.

**Due to Regulatory Requirements and OSHA Requirements Rubi is just supplying the 30 Amp plug with the DX 350 (REF# 52918), and DS 250 (REF#'s 52934 and 52944).

Rubi Tools DS-250-N Laser and Level Wet Saw Features:

  • Motor assembly mounted on sliding bearings for maximum precision and reliability. Perfect finishes.
  • Aluminum structure. Lighter cutter with maximum resistance to working conditions.
  • Wheels and handle included. Easy transport.
  • Miter cuts up to 90 degrees
  • Removable aluminum tables for easy cleaning of the machine.

Rubi Tools DS-250-N Laser and Level Wet Saw Specs:

Model DS250 51" (52934)   DS250 59" 120V (52944)   DS250 59" 220V (52946)
Cutting length 51" 59" 59"
Diagonal cutting length 36" 42" 42"
Cutting height 2" 2" 2"
Miter Thickness cut 1" 1" 1"
Power (Direct Drive) 3 hp 3 hp 3 hp
RPM 3400 3400 3400
Outside diameter 10" 10" 10"
Inside diameter 1" 1" 1"
L x W x H 78.6" x 28.6" x 50" 86.6" x 33.85" x 50" 86.6" x 33.85" x 50"
Net weight 212.74 lbs 287 lbs 287 lbs



Download User Manual

More Information
SKU RUBI DS-250-N
In the Box
  • Extruded aluminum tables, removable for easy cleaning of the machine.
  • Diamond blade Ø10” (250mm) not included.
  • With a double set of flanges, one especially designed for miter cuts.
  • Motor assembly mounted on sliding bearings and foldable for maximum accuracy miter cuts.
  • Safety protector for segmented blades.
  • With lateral stop for repetitive cuts.
  • Retractile legs with "shield" function and wheels for transportation.
  • Removable water tank system.
  • 2mW line laser.
  • Circular level for easy field installation.
  • Machine supplied without cable
  • It comes with the new ZERO DUST system mounted, as well as a second set of standard splash skirt.
Manufacturer Rubi Tools
Blade Capacity 10"
No Load Speed (rpm) 3405
Size (L x W x H) 78.75" x 33.86" x 50"
Max Length of Cut (in.) 52"
Arbor Size 1"
HP 3
Voltage 120
Wet or Dry Wet Only
Net Weight (lbs.) 264.60
