The Rubi Tools DCX-250 Xpert Wet Saw is designed for the intensive cutting of porcelain stoneware tiles (BIA) and any other type of ceramic tile (BIIa / BIIb / BIII / AIB) while allowing the occasional cutting of pieces of natural stone.
The design of the DCX-250 Xpert cutters includes a highly reinforced aluminum chassis with an innovative triple beam system and steel fronts to improve the stability and rigidity of the entire chassis.

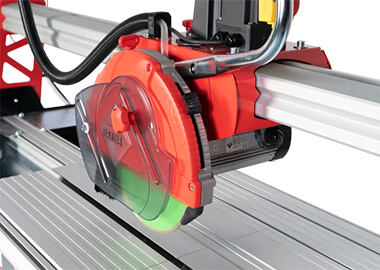

The moving head of the DCX-250 Xpert moves through a reinforced guide made of aluminum for a better and precise finish in the cut. This system also incorporates a high-performance chopping effect, allowing the cutting height to be adjusted to the user's needs.

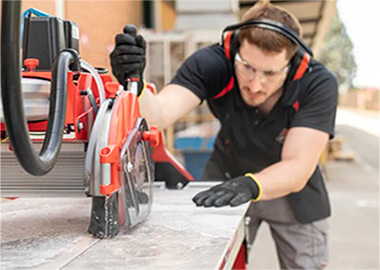

RUBI's DCX-250 Xpert electric cutters include the C3 Phyton cooling system. It allows the water application point to be adjusted according to the thickness of the material, ensuring that the water hits the cut point directly. The C3 Phyton system increases the efficiency of the refrigeration and reduces the dispersion and loss of water. More efficient cooling helps increase the performance of the diamond blade.
The cooling system of the DCX-250 Xpert is completed with a double steel decanter for more efficient recovery of the used water, directed towards the external water tank of 30 liters of capacity. By using an external tank, handling it in cleaning and filling operations is easier and faster.

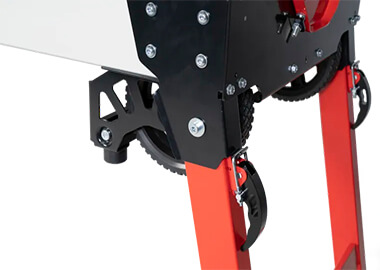

The models of the DCX-250 Xpert range incorporate reinforced handles and wheels (off-road type), which provide a better experience in transporting and handling the cutters. Its folding system with reinforced legs includes a quick locking system with a safety device that prevents involuntary folding during work or any possible movements that we can experience at job sites. In addition, the DCX tile cutter includes a regulator that assists in the correct leveling of the cutting table.
Rubi Tools DCX-250 Xpert Wet Saw Specifications:
|DCX-250 Xpert 1250 (2hp) 49"||DCX-250 Xpert 1550 (2hp) 61"|
|Motor||120V/60Hz2 HP (1.5kW)|
|No Load Speed (rpm)||3350|
|Max Length of Cut||49-3/16"||61-1/16"|
|Diagonally Cuts||35" x 35"||43.3" x 43.3"|
|Max Depth of Cut||2-3/8" - 3-9/16"|
|Weight||185.19 lbs||214.95 lbs|
|SKU||RUBI DCX-250 XPERT|
|In the Box||
|No Load Speed (rpm)||3,350|
|Dimensions (L x W x H)||75.5" x 51" x 29" / 87.4" x 51" x 29"|
|Max Length of Cut (in.)||49-3/16" / 91-1/16"|
|Max Depth of Cut (in)||3-9/16"|
|Depth of Cut at 45° (in.)||1-15/16"|
|Diagonally Cuts (in.)||35" x 35" / 43.3" x 43.3"|
|Wet or Dry||Wet Only|
|Weight (lbs.)||185.19 / 214.95|
