Rubi Tools TP-T PULL Series Tile Cutters - TP 66T, 75T, 102T
Professional-grade manual cutters engineered for intensive cutting of ceramic and porcelain tiles. Featuring a highly impact-resistant single guide system, ergonomic pull-handle operation, and a powerful retractable breaker.
Brand: Rubi Tools
Availability: Ships from Factory in 2 to 3 weeks (More Info)
Shipping: Standard (More Info)
Rubi TP-T PULL Tile Cutters — Professional Manual Porcelain Tile Cutter
The Rubi Tools TP-T PULL Series Manual Tile Cutters are designed to meet the demands of professional tile installers who require a powerful, precise, and ergonomic cutting solution for intensive ceramic and porcelain tile work.
The highly impact-resistant single guide system delivers long-term durability and consistent cutting accuracy, even under heavy jobsite use. Unlike traditional push-style cutters, the TP-T PULL series is operated from behind the machine, using an ergonomic pull handle that increases working speed and control.
A retractable breaker with up to 2204.6 lbs of breaking power allows clean separation of tiles with thicknesses from 13/64" to 25/32". The mobile breaker design ensures superior results on diagonal and angular cuts, while the central-pivot swivel square and laser-engraved measuring guides provide fast, precise angle and repetitive cuts.
The reinforced two-layer aluminum base with shock absorption and lateral supports ensures stability when working with large-format tiles. Supplied with a durable 7/8" tungsten carbide scoring wheel, the TP-T series offers a versatile, low-maintenance, and highly efficient cutting system for professional installations.

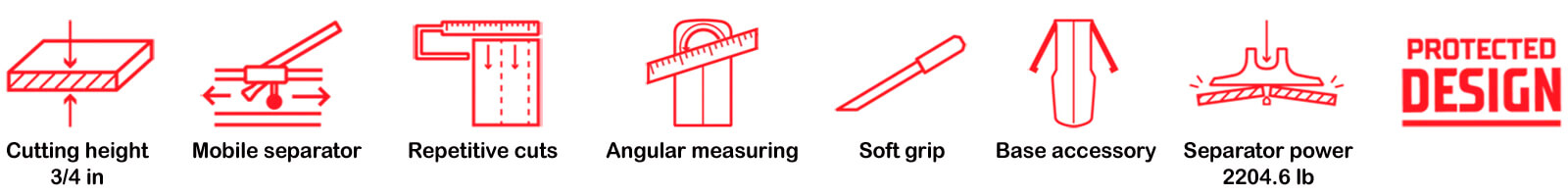

Key Features and Benefits
- Designed for Intensive Professional Use — Ideal for continuous cutting of all types of ceramic tiles and high-performance porcelain tiles (BIa)
- Single Guide Monoguide System — Highly impact-resistant guide system provides exceptional rigidity, accuracy, and long service life
- Pull-Handle Ergonomic Design — Optimized for pulling rather than pushing, allowing the operator to work behind the cutter for greater control and reduced fatigue
- High-Power Retractable Breaker — Delivers up to 2204.6 lbs (1000 kg) of breaking force and handles tile thicknesses from 13/64" to 25/32"
- Mobile Breaker for Angle Cuts — Mobile breaker assembly ensures clean, high-quality diagonal and angular cuts
- Precision Swivel Square — Central-pivot swivel square allows fast and accurate angular cuts with excellent repeatability
- Repetitive Cut Lateral Stop — Laser-engraved square and lateral stop ensure fast, precise repetitive cuts
- Reinforced Floating Base — Two-layer aluminum base with shock absorption enhances breaking efficiency and tile protection
- Large Format Tile Support — Integrated lateral supports improve stability when cutting large tiles
- Long-Lasting Scoring Wheel — Equipped with a 7/8" tungsten carbide scoring wheel, offering excellent versatility across ceramic materials
- Low Maintenance Design — Guide system requires no lubrication, reducing maintenance and downtime
Specifications
| Model | TP-66-T | TP-75-T | TP-102-T |
|---|---|---|---|
| Part # | 12917 | 12929 | 11903 |
| Cutting length (in) | 25 | 29-1/2 | 40-1/8 |
| Diagonal cutting length (in) | 18-1/8 x 18-1/8 | 20-7/8 x 20-7/8 | 27-1/2 x 27-1/2 |
| Cutting height (in) | 1/4 - 3/4 | 1/4 - 3/4 | 1/4 - 3/4 |
| Separator power (lb) | 2204.6 | 2204.6 | 2204.6 |
| Net weight without packaging (lb) | 25.35 | 26.45 | 36.15 |
Downloads
Rubi TP Series Tile Cutters Product Brochure
Rubi TP Series Tile Cutters User Manual
Rubi Large Format Ceramic Tile Installations Manual
| SKU | RUBI-TPT |
|---|---|
| Manufacturer | Rubi Tools |
| Warranty | 5 year limited warranty |
| Dimensions (L x W x H) | 36" x 13" x 9" - 45" x 13" x 9" |
| Max Depth of Cut (in) | 13/16" |
| Weight (lbs.) | 25.0 - 37.03 |
