Schluter KERDI-SHOWER-FRS Floor Recessing System for Curbless Showers

Schluter KERDI-SHOWER-FRS: Curbless Shower Floor Recessing System

Schluter KERDI-SHOWER-FRS Floor Recessing System provides a practical solution for constructing modern curbless showers without compromising the structural integrity of the existing floor system.

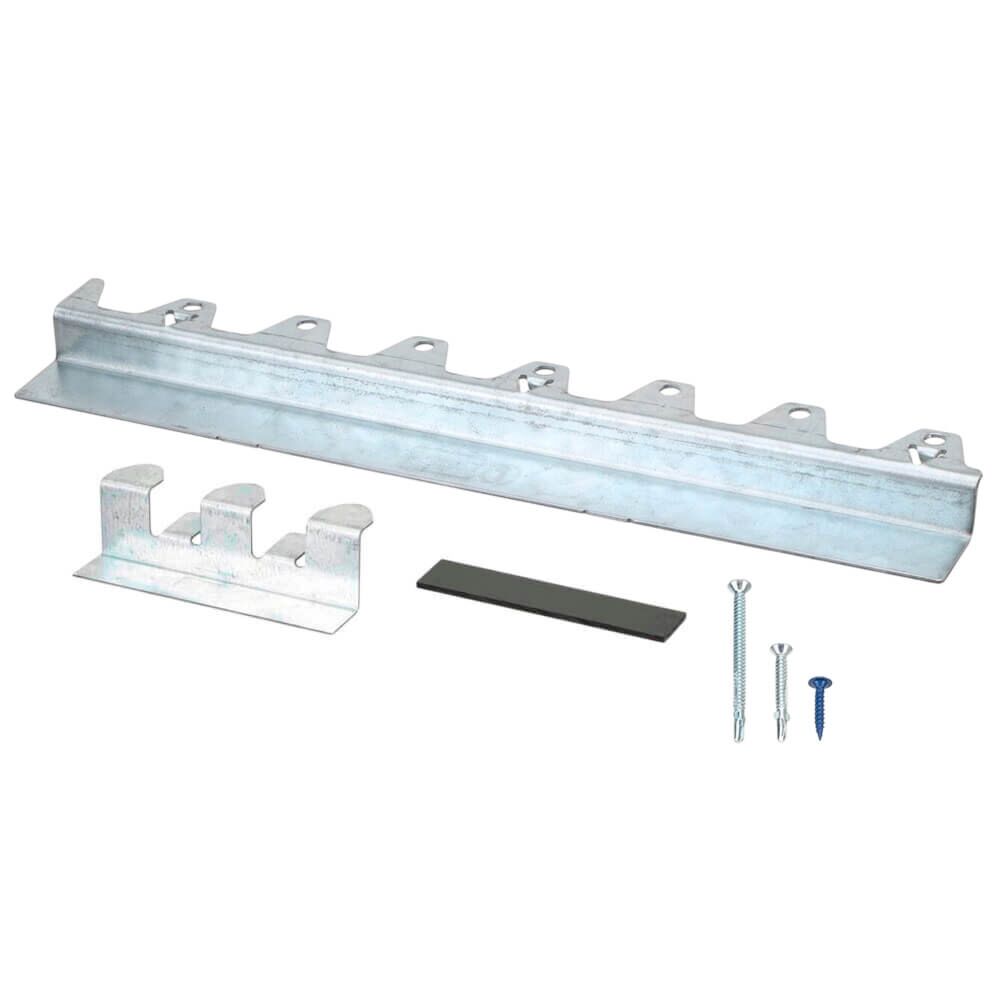

The system uses galvanized steel J Brackets that fasten to the top of the joists and P Brackets that attach to the unmodified subfloor perimeter. Together, they support the recessed subfloor panels and create a stable foundation for the shower assembly.

Because the brackets are installed from the top, there is no need to cut or modify joists or install ledger boards. This installation approach also helps minimize conflicts with plumbing, HVAC, and electrical components located inside floor cavities.

KERDI-SHOWER-FRS lowers the subfloor by 11/16" (17.5 mm) and is compatible with dimensional lumber and I-joists spaced up to 19.2" on center. Shims are included to accommodate 5/8" subflooring and provide a secure interface with the P Brackets.

Designed to integrate with the Schluter Shower System, KERDI-DRAIN point drains, and compatible KERDI-SHOWER prefabricated trays, the KERDI-SHOWER-FRS provides a dependable foundation for fully waterproof, accessible curbless shower installations.

Key Features and Benefits

• Supports Curbless Shower Design
  Creates a recessed floor area that helps achieve a low-profile, accessible curbless shower installation
• Galvanized Steel Brackets
  Durable galvanized steel J and P brackets provide strong, reliable support for recessed subfloor panels
• Preserves Structural Integrity
  Installs without modifying or cutting joists, helping maintain the structural integrity of the floor system
• Top-Mounted Installation
  Brackets fasten directly to the top of the joists, eliminating the need for ledger boards and simplifying installation
• Compatible with Multiple Joist Types
  Designed for both dimensional lumber and I-joists spaced up to 19.2" (488 mm) on center
• Minimizes Utility Conflicts
  Top fastening helps reduce interference with plumbing, HVAC, and electrical components located within floor cavities
• 11/16" Floor Recess
  Lowers the subfloor by 11/16" (17.5 mm) to accommodate a recessed shower floor assembly
• Integrated Schluter System
  Designed to work with KERDI-DRAIN point drains and a variety of KERDI-SHOWER prefabricated trays for a complete shower installation
