Stabila LA-5P G 5-Point Dot GREENBEAM Self-Leveling Laser

The Stabila LA-5P G GREENBEAM Laser provides the fastest, most reliable way to plumb and square greater than 12 ft. up to 60'.
$385.00

Brand: Stabila

Availability: Sold in Store - Ships from Store or Factory (1 available in store). (More Info)

Shipping: Free to Continental US (More Info)

SKU
T-LEVEL 03165

The self-leveling, Stabila LA-5P G, projects 5-bright GREENBEAM laser dots, visible up to 60 ft. Layout points can be transferred and right angles can be set in an instant. It features a mechanical on/off switch and pendulum lock. This durable and compact, pouch laser is excellent for framing walls, interior, and exterior. The highly efficient LA-5P G laser is powered by 3-AA batteries, providing you up to 15 hours of constant run time.

Stabila LA-5P G Features:

  • Quickly transfer layout points and set right angles, even in brightly lit conditions.
  • The LA-5P G comes with a v-groove rare earth magnet built into the housing for secure attachment to metal.
  • 5 green bright and tight dots are visible up to 60ft.
  • Up dot accuracy tolerance: Will not exceed 3/16 in @ 50ft.
  • Down dot accuracy tolerance: Will not exceed 1/4 @ 50ft.
  • Level dot accuracy tolerance: Will not exceed 3/16in @ 50ft.
  • Square dot accuracy tolerance: Will not exceed 1/8in @ 50ft.
  • Warranty: Up to 2 years from the date of purchase.
  • Mechanical off/on switch with pendulum lock.
  • Self-leveling range: 4.5 degrees.
  • Up to 15 hours of constant run time on 3-AA batteries.

Stabila LA-5P G Specifications:

Laser class 2
Output < 1 mW
Laser wavelength 510 - 530 nm
Self-levelling range +/- 4.50°
Levelling accuracy +/- 3/16 in @ 30 ft
Laser beam accuracy (up) +/- 3/32 in @ 30 ft
Laser beam accuracy (down) +/- 1/8 in @ 30 ft
Measuring range of visible point 60 ft
Operating life 7 h
Protection class IP 54
Tripod connection 1/4"-20

Download User Manual

More Information
SKU T-LEVEL 03165

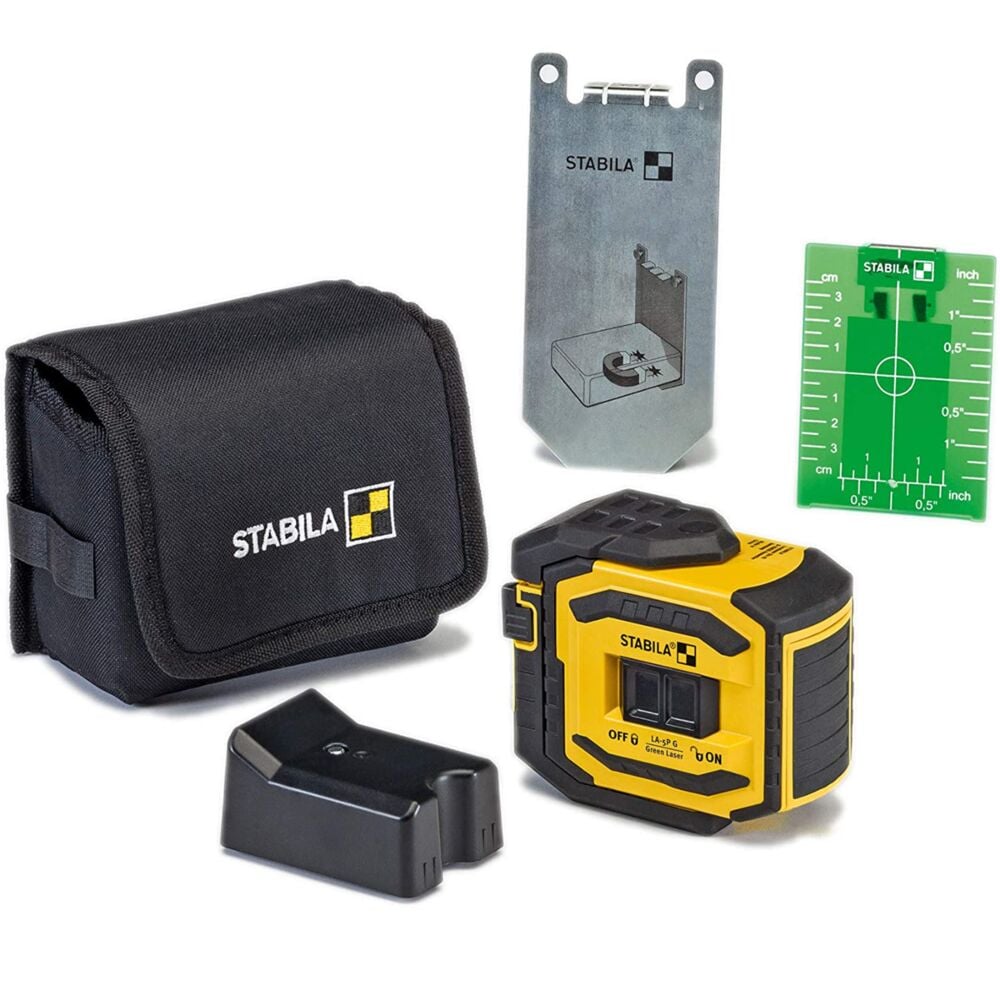

In the Box
  • LA-5PG 5-point laser
  • Metal wall mount plate
  • Green plastic target plate
  • Pouch
  • 3 x AA 1.5 V batteries
UPC 089634031659
Weight (lbs.) 2.40
Non-Returnable No
Manufacturer Stabila
Manufacturer Part Number 03165
Dimensions (L x W x H) 9.15" x 7.4" x 3.9"
