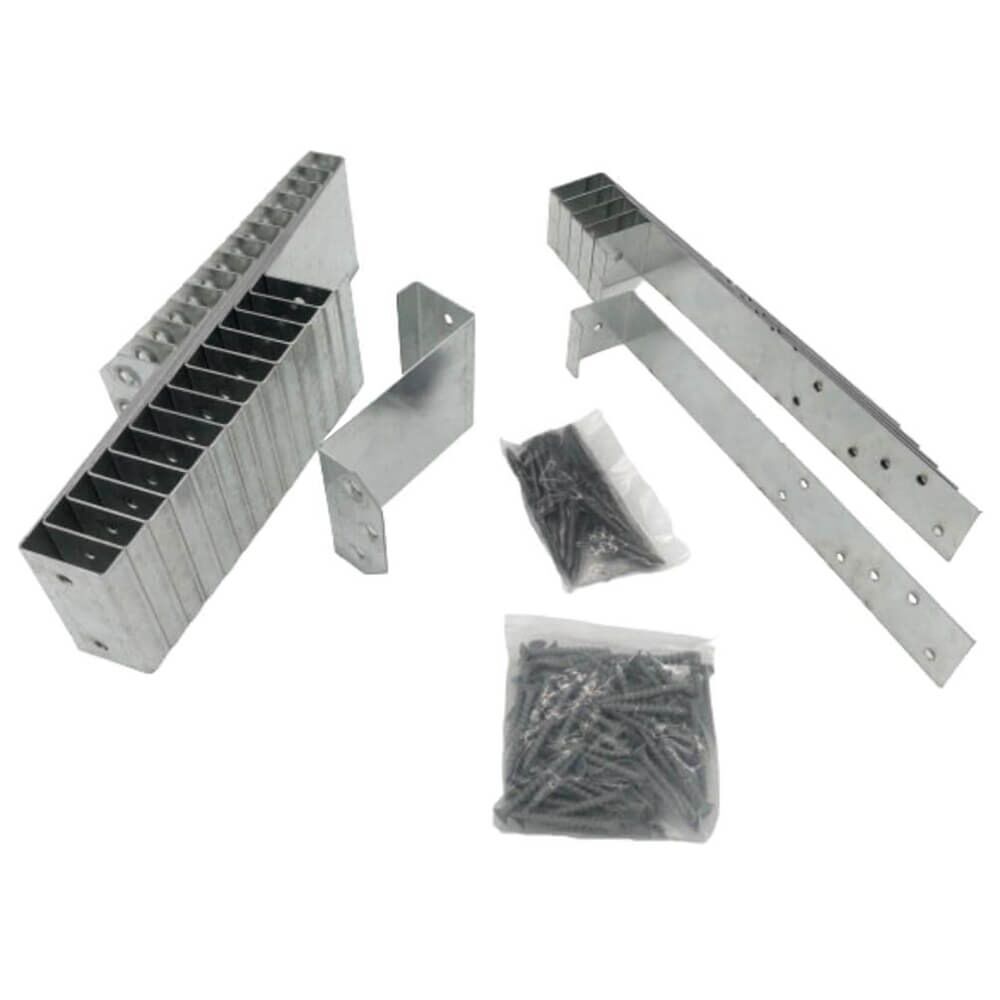

Ebbe Subfloor Lowering Kit

The Ebbe Subfloor Lowering Kit quickly and easily lowers a subfloor between the joists for a Barrier-Free, Curbless shower installation.

Perfect for ADA Showers (American Disability Act) to lower the shower floor. The lower shower floor enables wheelchair access.

Brackets need to be spaced at a maximum of 36" to achieve L/360 with a live load of 40PSF and a dead load of 20PSF. Each Bracket supports up to 600 lbs.

Perfect for I-Joists because you install the bracket on top of the I-Joist. Instead of attaching the 2×4 support to the side of the I-Joist.

Ebbe Subfloor Lowering Kit Features:

• Perfect for ADA Showers
• One Kit will rapidly recess your subfloor up to 24 Square Feet
• If you need to recess more than 24 Square Feet you will need additional Floor Lowering Kits
• Quick install avoids joist penetrations and need for web stiffeners
• Wall brackets can be adapted to be used at joists
• Use of subfloor adhesive at hanger seats recommended
• Patent Pending

Note: You supply the 2×4 lumber that will sit on the brackets (2×4 and subfloor material not included).

Download Installation Instructions
