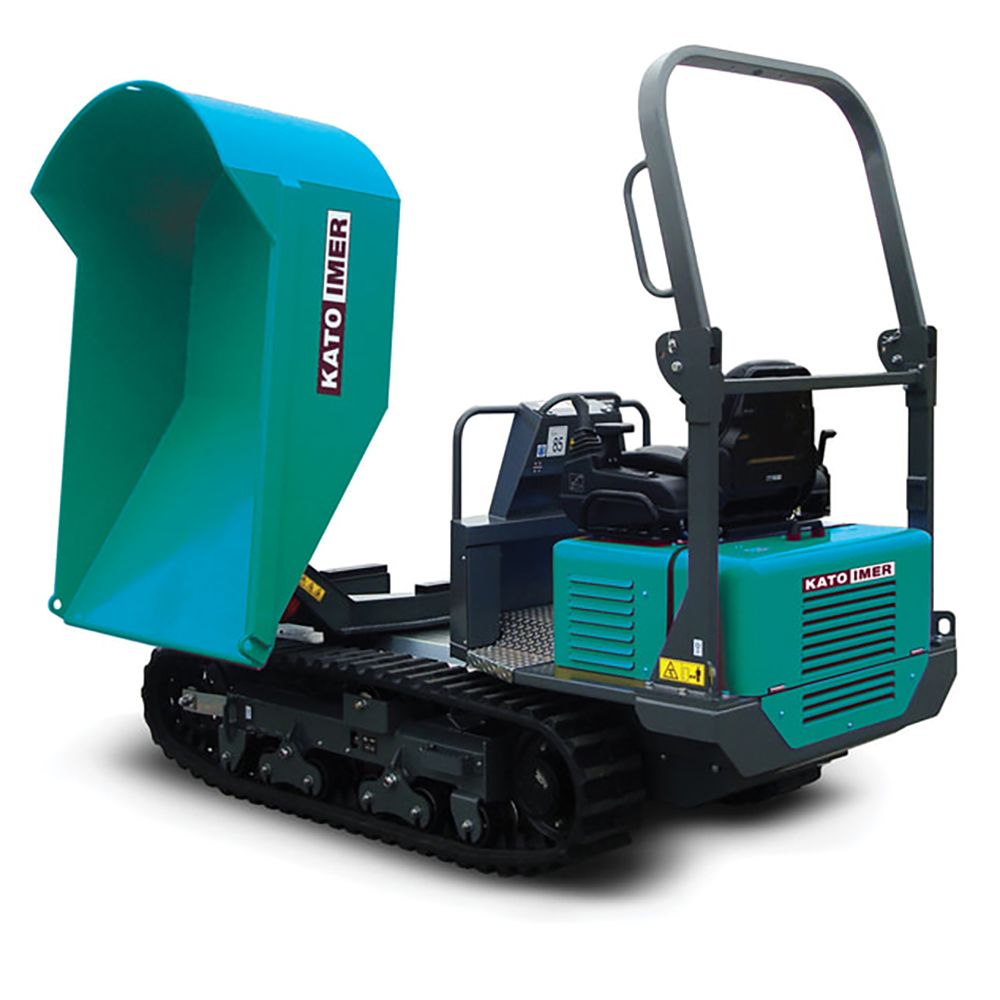

Imer Carry 230 Diesel Powered Track Dumper w/ 180° Swivel Tipping Bucket
Brand: Imer
Availability: Ships from Factory (More Info)
Shipping: Free to commercial address to Continental US (More Info)
IMER / KATO Tracked Transporters are Not Your Average Concrete Buggy.
This versatile machine not only hauls concrete, the Imer Carry 230 offers a 180° trilateral hydraulic lift and swivel bucket with a 41.3 cubic foot capacity to handle a multitude of loading/unloading options.
41 Cubic Foot Bucket Capacity and 180° Swivel Dump
The Imer Carry 230 tracked dumper is the powerful machine in the IMER fleet. With a 24.8HP Kubota Diesel engine, hydraulic transmission, 10-1/2" wide tracks, and a 41 cubic foot steel bucket, the Carry 230 are built to move and unload a multitude of materials like concrete and stone quickly and efficiently.
Imer Carry 230 Diesel Powered Track Dumper Specifications:
| Carry 230 | |
| Engine | Kubota V1505, 24.8 hp |
| Operating weight | 5,038 lbs |
| Operating load | 5,070 lbs |
| Payload capacity | 41.3 cu ft |
| Speed | 5 mph |
| Max allowed slope when empty | 25° - 46% |
| Max allowed slope when loaded | 21° - 38% |
| Ground clearance | 9-3/4" in |
| Start | Electric |
Accessories:
- Carry 230 Trilateral Tipping Bucket & Self-loading Shovel Kit Model # 5240335101HD
The Carry 230 Trilateral Tipping Bucket & Self-loading Shovel kit scoops and dumps from multiple positions.
| SKU | 5240334101HD |
|---|---|
| In the Box |
|
| Non-Returnable | No |
| Manufacturer | Imer |
| Manufacturer Part Number | 5230001 |
| Dimensions (L x W x H) | 127-1/4" x 51" x 99-3/4" |
