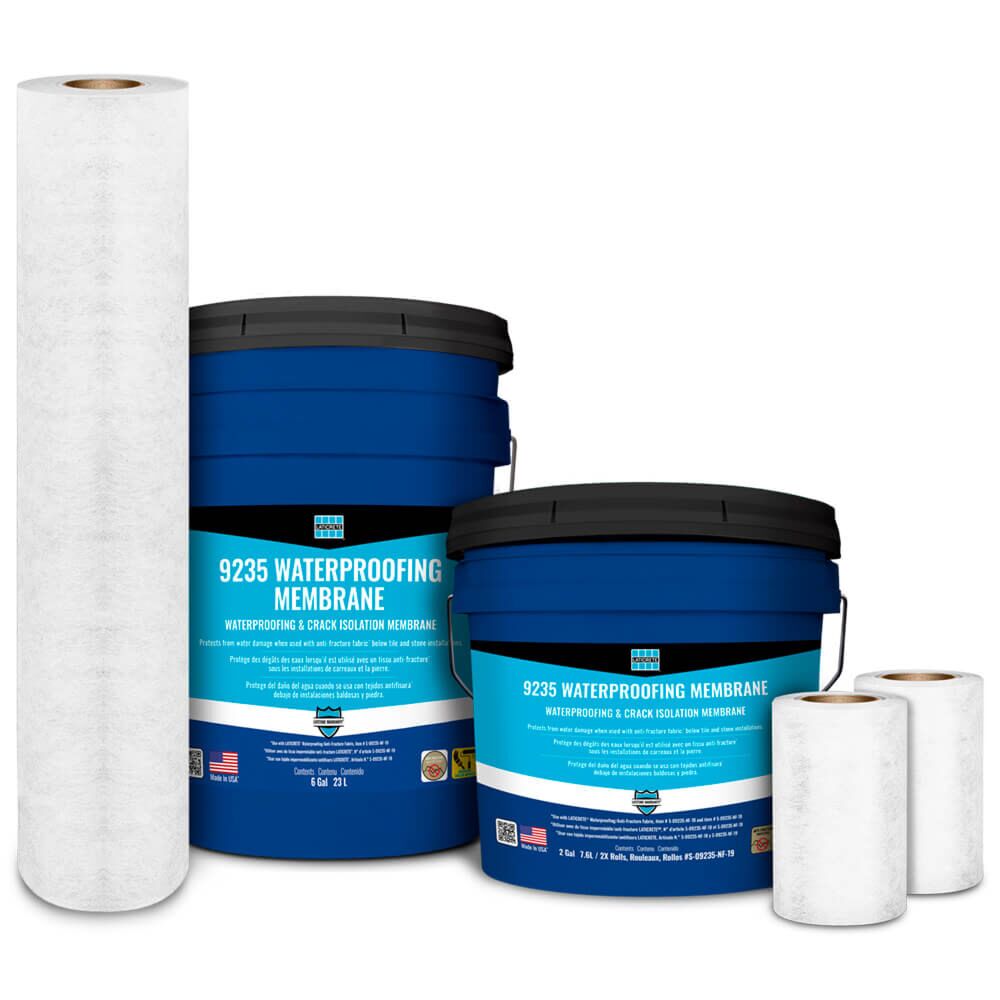

Laticrete 9235 Waterproofing Membrane and Anti-Fracture Fabric

Laticrete 9235 Waterproofing Membrane: Tile, Stone and Brick Waterproofing

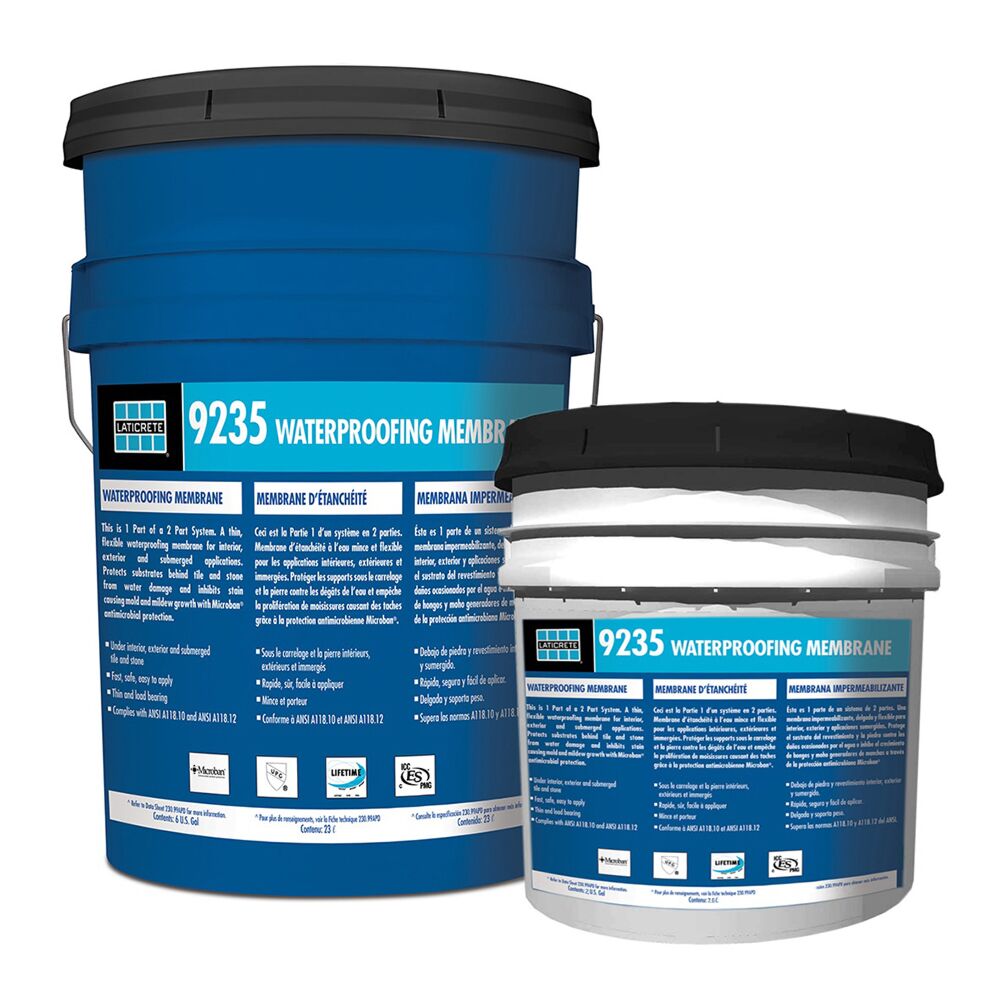

Laticrete 9235 Waterproofing Membrane is a thin, load-bearing, flexible liquid-applied waterproofing system designed for ceramic tile, natural stone, and brick installations. The cold-applied liquid rubber polymer combines with an integral reinforcing fabric to form a seamless membrane for demanding waterproofing applications.

The membrane is designed for both interior and exterior use on horizontal, vertical, and ceiling surfaces. It is particularly suited for wet areas and applications involving continuous water submersion, providing a waterproof barrier beneath tile, stone, and brick finishes.

9235 Waterproofing Membrane cures to approximately 0.02" (0.5 mm) and also provides antifracture protection over shrinkage and other non-structural cracks up to 1/8" (3 mm). Its Extra Heavy Service rating under TCNA performance levels, based on the ASTM C627 Robinson Floor Test, supports use in demanding tile installation environments.

Application is straightforward using a paint brush or long-nap roller, with no special mixing or application equipment required. The membrane normally cures within hours, allowing tile, brick, and stone to be installed directly over the finished membrane. The formulation contains no solvents, is non-flammable, and can be cleaned with water while fresh.

Key Features and Benefits

• Seamless Waterproofing
  Forms a flexible, continuous waterproof membrane that helps protect tile and stone assemblies from water penetration
• Integral Reinforcing Fabric
  The liquid rubber polymer works with an integral reinforcing fabric to create a durable, seamless waterproofing system
• Interior and Exterior Use
  Suitable for waterproofing applications on both interior and exterior surfaces
• Horizontal, Vertical and Ceiling Applications
  Can be applied to floors, walls, and ceilings, providing flexibility for a wide range of waterproofing projects
• Thin Membrane Profile
  Cures to approximately 0.02" (0.5 mm), providing waterproofing protection without adding significant thickness to the installation
• Antifracture Protection
  Provides protection over shrinkage and other non-structural cracks up to 1/8" (3 mm)
• Antimicrobial Protection
  Integrated antimicrobial technology continuously inhibits the growth of bacteria, mold, and mildew on the membrane
• Fast and Easy Application

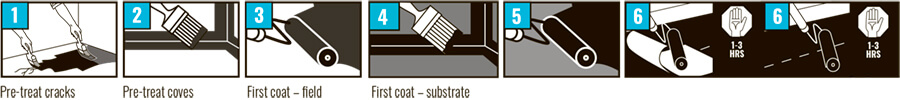

  Applies with a paint brush or long-nap roller without requiring special mixing or application equipment. The membrane normally cures within hours and allows tile, brick, or stone to be installed directly over it

Choose the right thin-set adhesive and mortar for the job

Downloads

Laticrete 9235 Waterproofing Membrane - Product Data Sheet
Laticrete Waterproofing/Anti-Fracture Fabric - Product Data Sheet
Laticrete Anti-Fracture Membrane Fabric - Installation Instructions
Laticrete 9235 Waterproofing Membrane - Safety Data Sheet
