Noble FreeStyle Linear PVC Drains

Noble FreeStyle Linear PVC Drains
Starting at $460.00
From $460.00 to $630.00

Product Description

Noble FreeStyle Linear Drains feature a membrane clamping mechanism for thin-bed sheet membrane and pro base installations. These freestyle linear drains offer contemporary styling with exceptional reliability and installation simplicity.

Rather than traditional center shower drains that need four slopes and small tiles, the FreeStyle Linear Drain uses a single slope which allows the use of larger format tile. This provides significant design flexibility. This drain can also be installed at the exit of the shower for barrier-free showers.

The FreeStyle Linear Drain is the only linear drain on the market that employs a membrane clamping mechanism. This mechanical connection provides the most reliable, secure, watertight connection of the waterproofing membrane to the drain. All styles are 16 gauge 316 stainless steel and meets ASME and CSA standards of 300 lb. load centered on a 2" diameter plate.

Noble FreeStyle Linear Drains feature:

  • Single slope to drain allows the use of larger tiles and greater design flexibility
  • Low profile and high capacity drainage make it ideal for barrier free applications
  • Membrane clamping mechanism assures a watertight seal with the waterproofing membrane
  • Waste pipe solvent welded into the drain for a watertight connection
  • Incorporate NobleSeal┬« for the most dependable waterproofing system available
  • One-Piece PVC or ABS construction ensures dependable performance with no manufactured seams

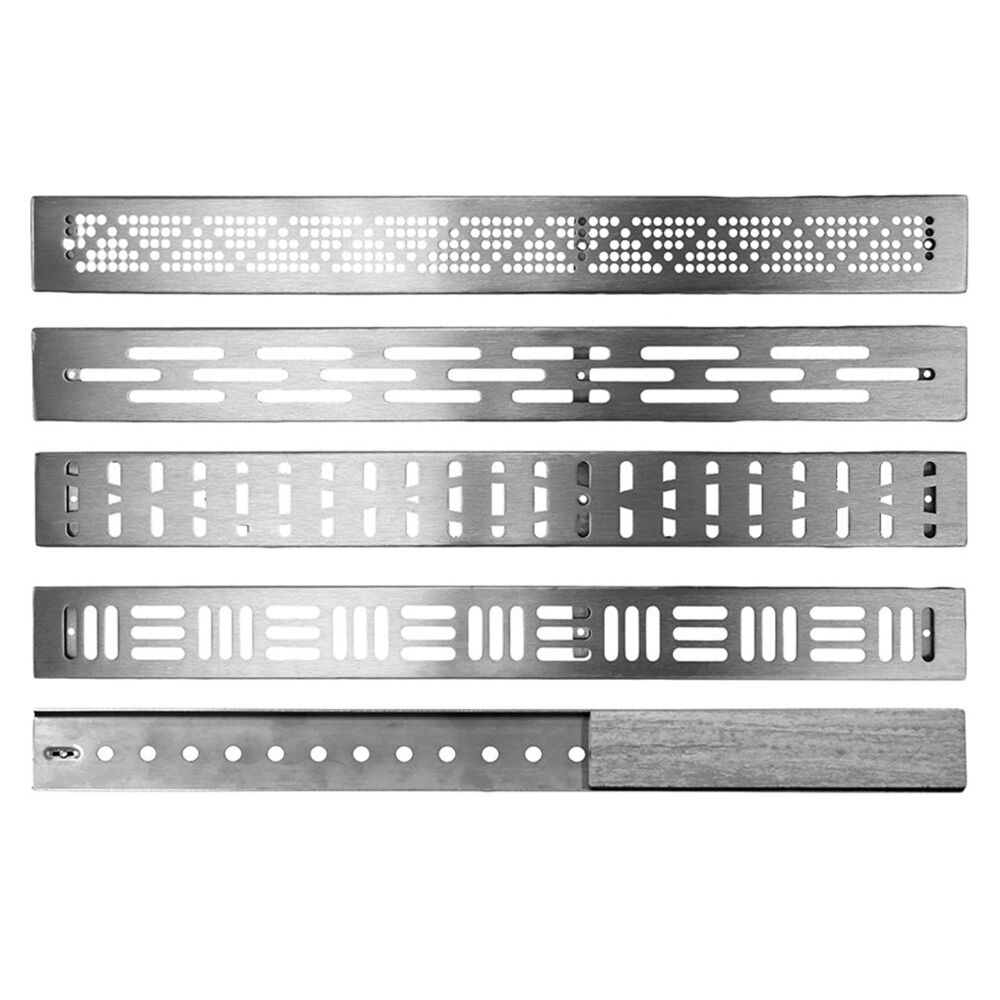

  • Contemporary styling with a selection of 7 drain lengths and four brushed stainless steel or tile top strainer styles
  • Save time - quick and easy installation
  • Use FreeStyle Linear Drains with NoblesSeal┬« TS for the most dependable waterproofing or use with Chloraloy┬« and the Full Mortar Bed Kit for a traditional full mortar bed method installation.

Noble FreeStyle Linear Drain Specs:

32" Drain 40" Drain 48" Drain
Drain Base Length 32" 40" 48"
Strainer Length 29-3/4" 37-3/4" 45-3/4"
Hole Center 19-1/2" 23-3/4" 27-3/4"
Thickness 1-3/8" 1-1/16" 1-1/2"

Download Product Brochure
Download Installation Instructions

Product Specifications

Net Weight (lbs.): 8.75 / 10.93 / 13.15
Manufacturer: Noble Co
MPN: 9384-65424-BS
Size (L x W x H): 32" x 4 1/2" x 1 3/8" / 40" x 4 1/2" x 1 7/16" / 48" x 4 1/2" x 1 1/2"
