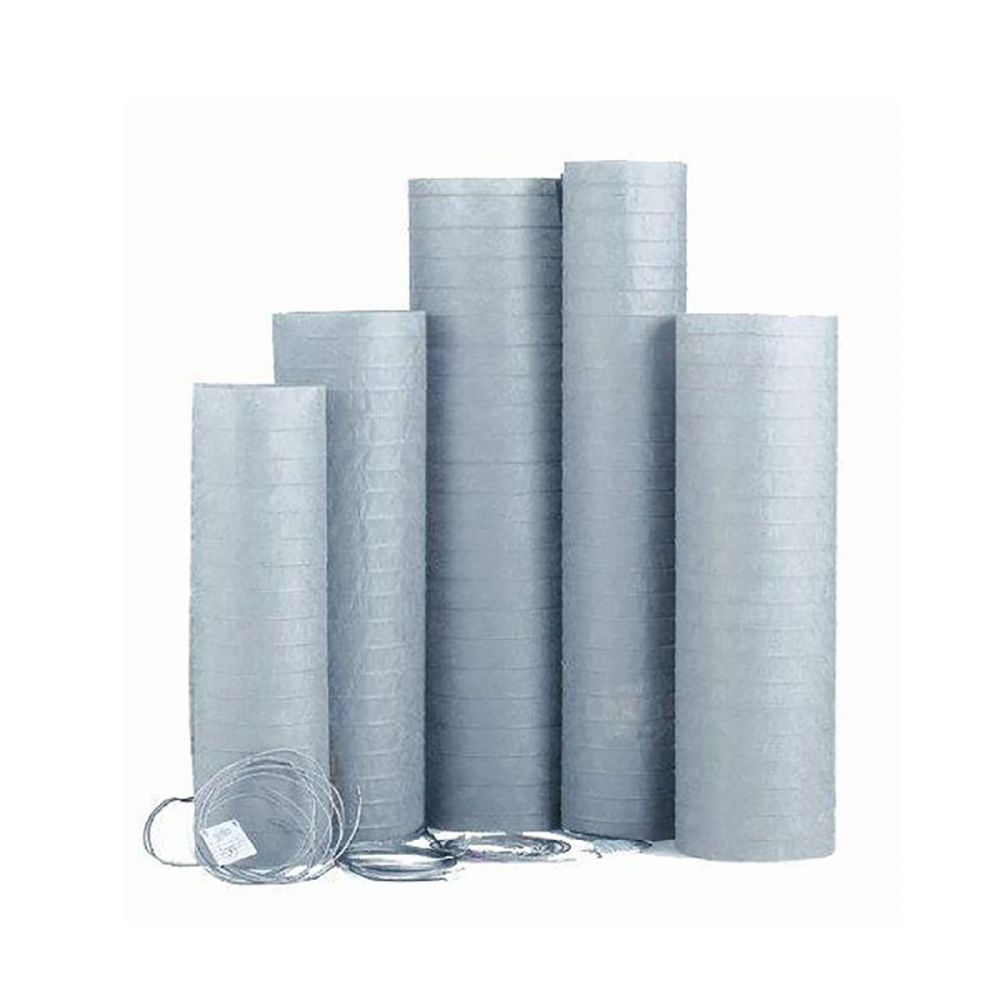

Nuheat Radiant Floor Heating Mats - 240v

Nuheat Radiant Floor Heating MatsĀ 240v are only 1/8" thick and eliminates the need to configure the heating wires during installation.
As low as $290.00

Brand: Nuheat

Availability: Sold in Store - Ships from Store or Factory (More Info)

Shipping: Free to Continental US (More Info)

Only %1 left
SKU
NUHEAT MATS 240V

Nuheat Radiant Floor Heating MatsĀ 240v are 1/8" thick, easy to install, energy-efficient, and can be controlled using a variety of programmable and non-programmable thermostat options. The electric floor heating system can use one or a combination of in-floor heating mats to deliver under floor heat for the entire room.

The heating wire uses Copper/Copper Alloy Heating wire insulated with ETFE and surrounded with a protective Stainless steel ground shield.

Installation

The installation of Nuheat mats is a simple process. The Nuheat Mat(s) is simply adhered to the subfloor using thinset and the flooring can then be immediately installed over top.

Just like a tile and stone application, Nuheat floor Heating systems can take the chill out of laminate and engineered wood surfaces, ensuring you the pleasure of barefoot comfort in any room in your home. The Nuheat Mat(s) is simply adhered to the subfloor using thinset then covered with 1/4"Ā thick layer of thinset. Then follow the manufacturerā€™s installation instructions to install the underlay and your laminate or engineered wood floor. When installing Nuheat under laminate or engineered wood, flooring manufacturers usually require homeowners to limit the temperature of the floor heating system. Nuheatā€™s programmable thermostats have specific settings for laminate or engineered wood floors that will protect the warranty of your floors.

Nuheat Radiant Floor Heating Mats 240v Specifications:

Ā  Model No. Part No. Dimensions (inches) Ohms Amps Watts Sq.Ft.
5 ft series G1509 FG0101 60 x 36 320 0.8 180 15
G1510 FG0102 60 x 42 274 0.9 210 17.5
G1512 FG0103 60 x 48 240 1.0 240 20
G1515 FG0104 60 x 60 192 1.3 300 25
6 ft series G1808 FG0105 72 x 30 320 0.8 180 15
G1809 FG0106 72 x 36 267 0.9 216 18
G1810 FG0107 72 x 42 229 1.1 252 21
G1812 FG0108 72 x 48 200 1.2 288 24
G1815 FG0109 72 x 60 160 1.5 360 30
G1818 FG0110 72 x 72 133 1.8 432 33
7 ft series G2106 FG0117 84 x 24 343 0.7 168 14
G2108 FG0118 84 x 30 274 0.9 210 17.5
G2109 FG0119 84 x 36 229 1.1 252 21
G2110 FG0120 84 x 42 196 1.2 294 24.5
G2112 FG0121 84 x 48 171 1.4 336 28
G2115 FG0122 84 x 60 137 1.8 420 35
G2118 FG0123 84 x 72 114 2.1 504 42
G2121 FG0124 84 x 84 98 2.5 588 49
8 ft series G2506 FG0125 96 x 24 300 0.8 192 16
G2508 FG0126 96 x 30 240 1.0 240 20
G2509 FG0127 96 x 36 200 1.2 288 24
G2510 FG0128 96 x 42 171 1.4 336 28
G2512 FG0129 96 x 48 150 1.6 384 32
G2515 FG0130 96 x 60 120 2.0 480 40
G2518 FG0131 96 x 72 100 2.4 576 48
G2521 FG0132 96 x 84 86 2.8 672 56
G2525 FG0133 96 x 96 75 3.2 768 64
9 ft series G2706 FG0134 108 x 24 267 0.9 216 18
G2708 FG0135 108 x 30 213 1.1 270 22.5
G2709 FG0136 108 x 36 178 1.4 324 27
G2710 FG0137 108 x 42 152 1.6 378 31.5
G2712 FG0138 108 x 48 133 1.8 432 36
G2715 FG0139 108 x 60 107 2.3 540 45
G2718 FG0140 108 x 72 89 2.7 648 54
G2721 FG0141 108 x 84 76 3.2 756 63
G2725 FG0142 108 x 96 67 3.6 864 72
G2727 FG0143 108 x 108 59 4.1 972 81
Ā  Model No. Part No. Dimensions (inches) Ohms Amps Watts Sq.Ft.
10 ft series G3006 FG0144 118 x 24 244 1.0 236 19.7
G3008 FG0145 118 x 30 195 1.2 295 24.6
G3009 FG0146 118 x 36 163 1.5 354 29.5
G3010 FG0147 118 x 42 140 1.7 413 34.4
G3012 FG0148 118 x 48 122 2.0 472 39.3
G3015 G3015 118 x 60 98 2.5 590 49.2
G3018 FG0150 118 x 72 81 3.0 708 59
G3021 FG0151 118 x 84 70 3.4 826 68.8
G3025 FG0152 118 x 96 61 3.9 944 78.7
G3027 G3027 118 x 108 54 4.4 1062 88.5
G3030 FG0154 118 x 116 51 4.8 1141 95.1
12 ft series G144036 FG0422 144 x 36 133 1.8 432 36
G144060 FG0424 144 x 60 80 3.0 720 60
G144072 FG0425 144 x 72 67 3.6 864 72
G144096 FG0427 144 x 96 50 4.8 1152 96
G144108 FG0428 144 x 108 44 5.4 1296 108
G144120 FG0429 144 x 120 40 6.0 1440 120
G144140 FG0430 144 x 140 34 7.0 1679 140
14 ft series G168096 FG0436 168 x 96 43 5.6 1344 112
G168108 FG0437 168 x 108 38 6.3 1512 126
G168120 FG0438 168 x 120 34 7.0 1680 140
G168140 FG0440 168 x 140 29 8.2 1960 163.3
20 ft series G240120 FG0467 240 x 120 24 10.0 2400 200

Download User Manual and Installation Guide

More Information
SKU NUHEAT MATS 240V
In the Box
  • 1 240V Nuheat Mat Integrated Floor Heating System
  • 1 Installation instruction manual
Non-Returnable No
Manufacturer Nuheat
Warranty Twenty-five (25) years under tile, stone, laminate, and engineered wood floors from the date of purchase.
Voltage 240
Weight (lbs.) 2.80 - 20.00
Dimensions (L x W x H) 60" x 36" x 1/8" - 240" x 210" x 1/8"
