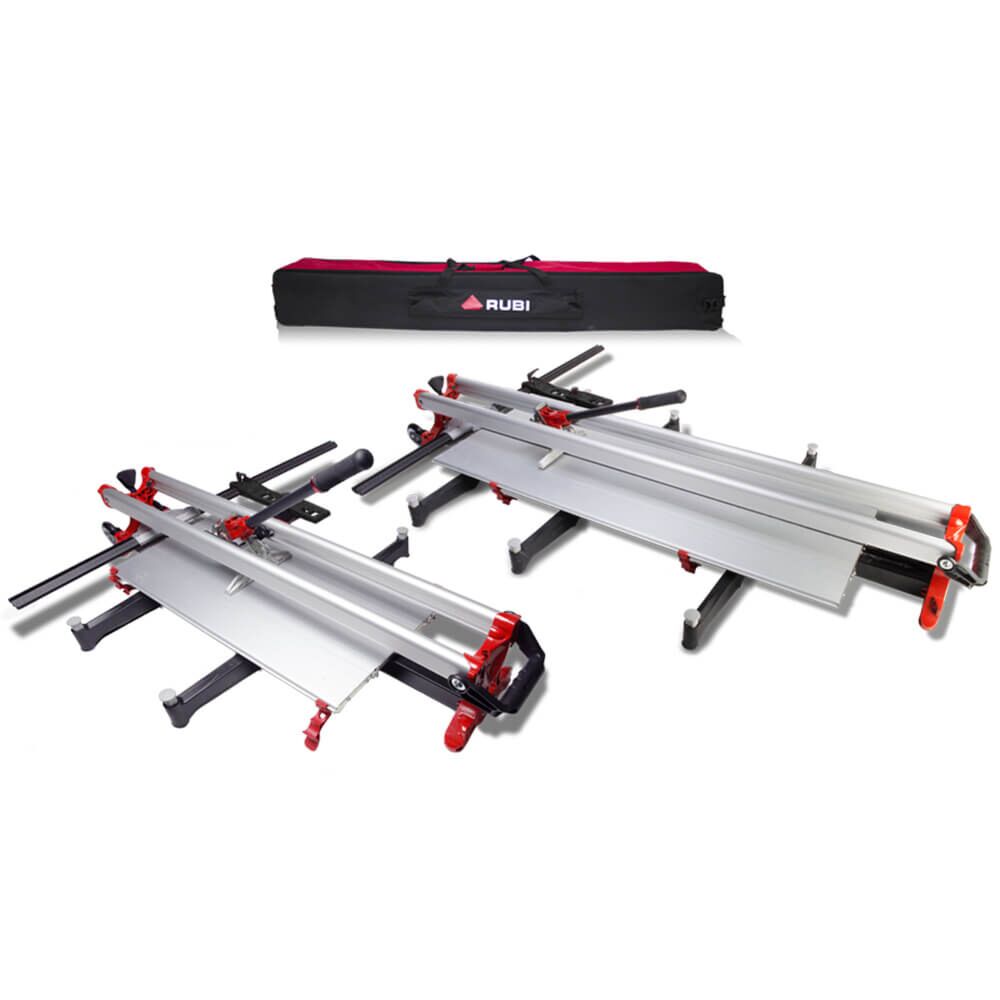

Rubi Tools TZ Large Tile Cutters w/ Bag

Rubi TZ Large Format Tile Cutters — Professional Large Tile Cutters With Bag

The Rubi Tools TZ Series Large Format Manual Tile Cutters are the pinnacle of manual ceramic cutting technology. Developed for professional tile installers working with large-format materials, the TZ series delivers power, precision, and usability previously unseen in manual cutters.

At the core of the TZ system is its exclusive patented breaker mechanism, capable of generating up to 3306 lbs of breaking force, while allowing the operator to work comfortably with just one hand. This innovation significantly improves productivity and control when handling oversized tiles.

The patented head guidance system, combined with extruded aluminum guides and an ultra-rigid steel frame, ensures smooth scoring, excellent stability, and exceptional resistance to bending under load. These structural advantages allow the TZ to maintain cutting accuracy even at maximum breaking force.

Designed specifically for large-format ceramic and porcelain tiles, the TZ series supports straight cuts up to 61 inches and diagonal cuts up to 43" x 43", with the ability to cut materials up to 53/64" thick. Precision components such as the swivel square with removable ends and the extended lateral stop guarantee repeatable, accurate results.

Key Features and Benefits

• Next-Generation Professional Cutting System — Engineered as a new concept in manual tile cutting, combining innovative design with cutting-edge materials
• Extreme Breaking Power — Delivers up to 3306 lbs (1500 kg) of breaking force—one of the highest capacities available in a manual tile cutter
• One-Handed Operation — Exclusive patented breaker mechanism allows scoring and breaking using one hand, improving speed and control on large tiles
• Optimized Head Guidance System — Patented head design ensures smooth, precise scoring while maintaining stability even under high breaking pressure
• Extruded Aluminum Guide Geometry — Advanced guide design minimizes torsional forces, ensuring consistent scoring accuracy and smooth carriage movement
• Ultra-Rigid Steel Frame — High-strength steel frame provides exceptional resistance to bending, delivering unmatched durability and cutting stability
• Designed for Large Format Tiles — Handles straight cuts up to 61" and diagonal cuts up to 43" x 43", ideal for oversized ceramic slabs
• Adjustable Cutting Performance — Capable of cutting tiles up to 53/64" (21 mm) thick, with adjustable working positions based on material thickness
• Precision Swivel Square and Lateral Stop — Swivel square with removable ends and locking system ensures accurate angle cuts, while the patented 12" lateral stop simplifies repetitive cuts on large tiles
• Foldable and Transport-Friendly Design — Foldable aluminum tables, integrated wheels, and carrying handles provide easy transport and jobsite mobility
• Heavy-Duty Transport Bag Included — Supplied with a reinforced textile carrying bag for safe storage and transportation
• Interchangeable Scoring Wheels — Compatible with the full Rubi Plus scoring wheel range; supplied with 5/16" and 3/4" scoring wheels

Specifications

Downloads

Rubi TZ Large Tile Cutters Product Brochure
Rubi TZ Large Tile Cutters User Manual
Rubi Large Format Ceramic Tile Installations Manual
