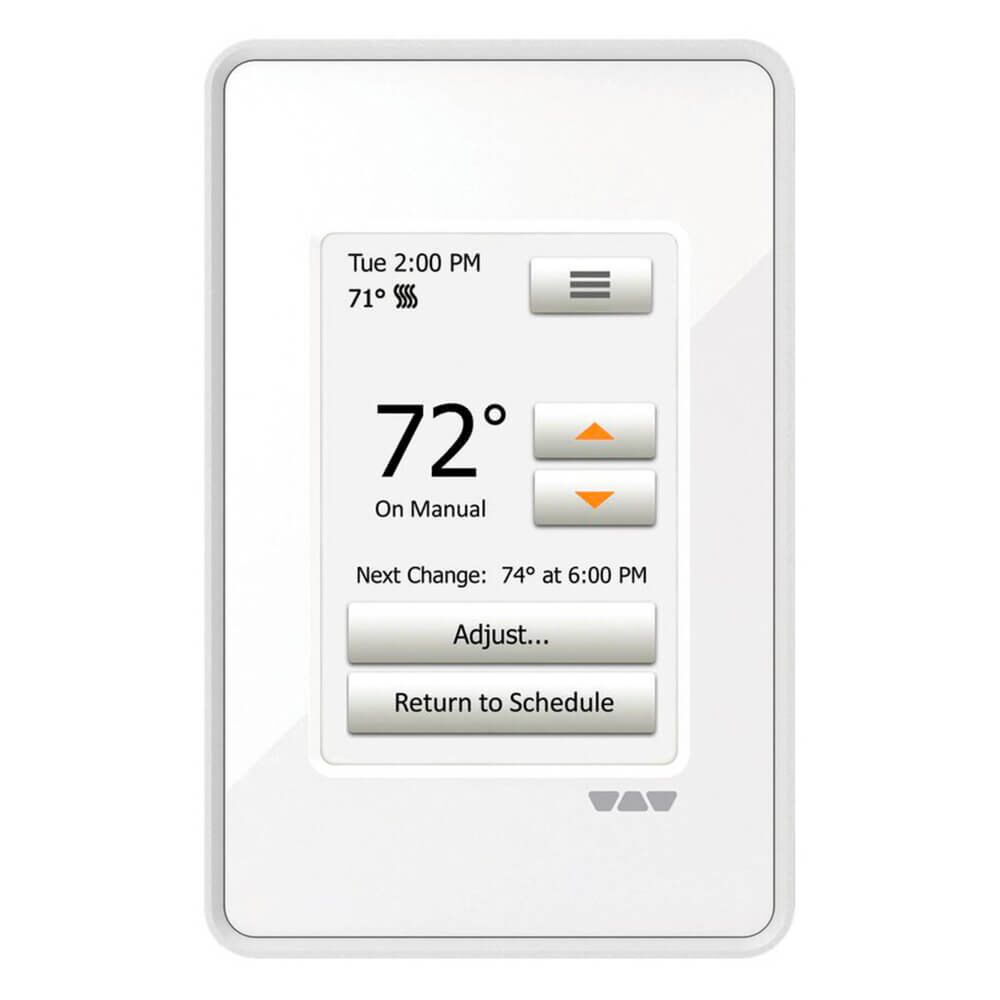

Schluter Ditra-Heat-E-RT Touchscreen Thermostat
Programmable touchscreen thermostat for Schluter DITRA-HEAT systems with built-in GFCI, 3.5" LCD display, six daily programming periods, and energy tracking. Safe, efficient, and easy to use.
Brand: Schluter
Availability: Sold in Store - Ships from Store or Factory (5 available in store). (More Info)
Shipping: Free to Continental US (More Info)
Schluter DITRA-HEAT-E-RT Programmable Touchscreen Thermostat — Floor Heating Control
The Schluter DITRA-HEAT-E-RT is a programmable touchscreen thermostat designed to precisely control DITRA-HEAT-E-HK floor heating cables (120 V or 240 V). Featuring a bright, intuitive LCD touchscreen and built-in 5 mA Class A GFCI, this thermostat provides both safety and user-friendly operation. With six programmable periods per day, a setup wizard, and energy monitoring capability, it offers optimal comfort and efficiency for any heated floor installation.
Ideal for homeowners and installers seeking a dependable, modern solution, the DITRA-HEAT-E-RT can manage up to two heating cables (total ≤ 15 A). For larger installations, it can be expanded with the DITRA-HEAT-E-RR power module, maintaining centralized control.
Key Features and Benefits
- Programmable touchscreen control — adjust heating schedules with an easy-to-use 3.5" LCD interface
- Energy tracking and logging — monitor power consumption directly from the display
- Built-in Class A GFCI (5 mA) — provides advanced electrical safety in wet areas
- Dual-voltage compatibility — supports both 120 V and 240 V systems
- Set-up wizard — simplifies installation and configuration
- 6 daily programming periods — customize comfort for every part of your day
- QR code access — quick reference for settings and documentation
- Supports two heating cables — up to the 15 A total load limit
- Expandable control — compatible with the DITRA-HEAT-E-RR power module for high-load applications
- Sleek modern design — bright white finish complements any décor
Please refer to the Interactive User Guide and Schluter DITRA-HEAT Installation Handbook for complete DITRA-HEAT system installation instructions.
- DITRA-HEAT-E-RT must be installed in an electrical box. A single gang, deep electrical box or a double gang electrical box with a single gang mud ring is recommended to provide room for the wiring.
- The power supply must be shut off and all electrical connections must be made by a qualified electrician, according to the electrical and building codes effective in your region.
- Connect the heating cable ground braid to the ground wire from the electrical panel.
- Remove the faceplate from the thermostat power base by loosening the screw and tilting the thermostat upward. Remove the back cover clip as well.
- For ease of installation, form the electrical line wires into an "M" or accordion shape. This will make it easier to fold them neatly into the electrical box. Loosen the load screws at the top of the thermostat until they stop.
- Insert the heating cable conductors into the load terminals from the bottom. Since there is no polarity, either heating cable conductor can be connected to either load terminal.
- Secure the conductors by tightening the screws.
- Insert the electrical line wires into the line terminals from the top. Refer to the back of thermostat for proper wiring configuration.
- Secure the wires by tightening the screws and fold the wires into the electrical box.
- Align and secure the thermostat power base to the electrical box.
- Thread the floor temperature sensors through the opening at the bottom right of the thermostat power base. Tape up the secondary floor temperature sensor and secure to the power base.
- Strip the ends of the floor temperature sensor to expose the wires for ease of installation. Insert the floor temperature sensor wires into terminals C and D. Note that the floor temperature sensor wires have no polarity and can be interchanged between C and D terminals. Tighten the screws to secure the wires.
- The power, heating cable, and floor temperature sensor connections are now complete. Replace the thermostat faceplate and tighten the screw at the bottom of the unit.
Note: Two DITRA-HEAT-E-HK heating cables can be connected and controlled by a single DITRA-HEAT-E-RT thermostat if the total current is less than 15 amps. The heating cable leads must be wired in parallel according to applicable electrical and building codes. Multiple DITRA-HEAT-E-HK heating cables over 15 amps cannot be connected to a single DITRA-HEAT-E-RT thermostat. Additional DITRA-HEAT-E-RT thermostats must be used or the DITRA-HEAT-E-RT thermostat may be combined with the DITRA-HEAT-E-RR power modules.
Specifications
| Model | DITRA-HEAT-E-RT | Type | Programmable Touchscreen Thermostat |
|---|---|---|---|
| Voltage Supply | 120 V / 240 V AC, 50/60 Hz | Load Capacity | 15 A maximum (resistive load) |
| Power Output | 1,800 W @ 120 V / 3,600 W @ 240 V | GFCI Protection | Built-in Class A (5 mA trip level) |
| Sensor | Floor temperature sensor (included) | Display | 3.5" LCD Touchscreen |
| Operation Modes | Programmable automatic or manual | Compatible System | DITRA-HEAT-E-HK Heating Cables |
| Color / Finish | Bright white | Warranty | 3-Year Limited Warranty |
| SKU | S DHE RT 102/BW |
|---|---|
| UPC | 4011832149849 |
| Non-Returnable | No |
| Manufacturer | Schluter |
| Warranty | Limited 10 Year Warranty |
| Manufacturer Part Number | DHERT102/BW |
| Voltage | 120/240 |
| Weight (lbs.) | 0.65 |
| Dimensions (L x W x H) | 6" x 3.6" x 2.8" |
