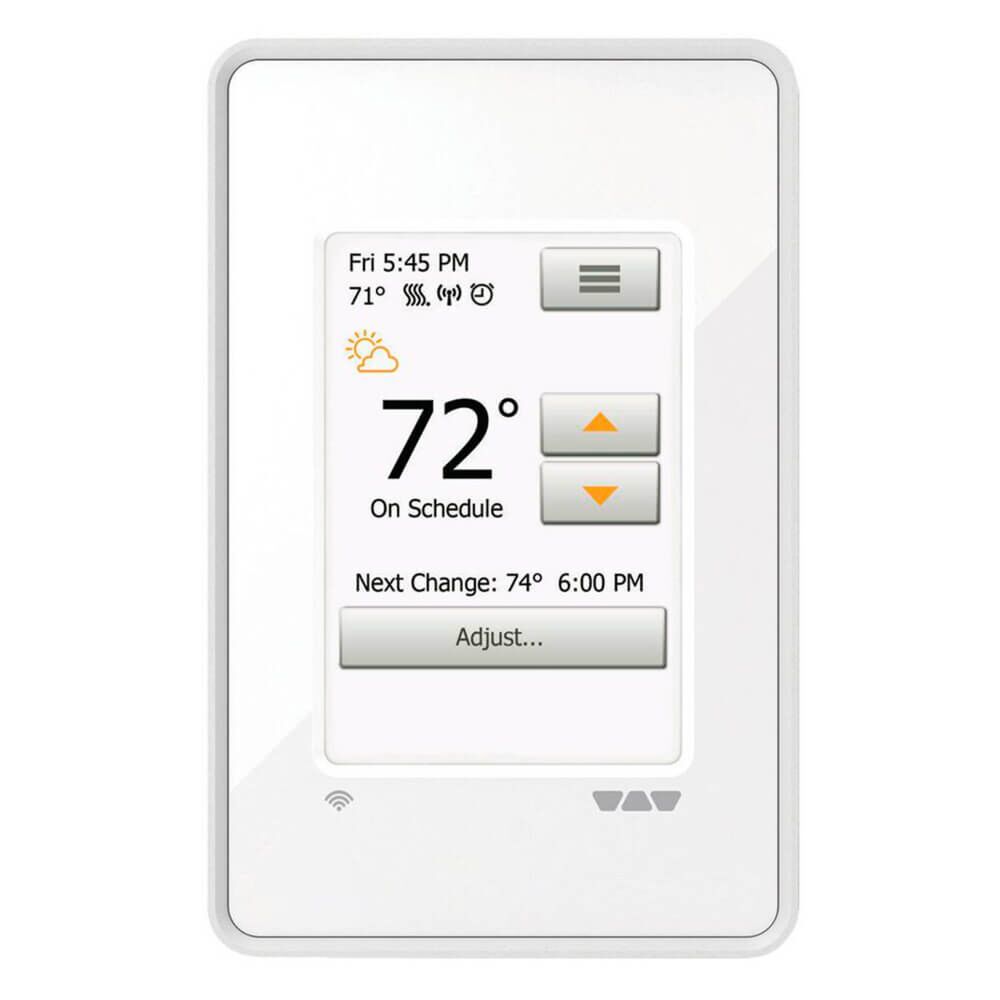

Schluter DITRA-HEAT-E WiFi Programmable Thermostat
Provides precise, app-controlled heating for DITRA-HEAT systems. With a 3.5" touchscreen, built-in GFCI, and smart Wi-Fi scheduling, it delivers safe, efficient, and effortless floor warming control.
Brand: Schluter
Availability: Sold in Store - Ships from Store or Factory (6 available in store). (More Info)
Shipping: Free to Continental US (More Info)
Schluter DITRA-HEAT-E-WiFi Thermostat — Smart Wi-Fi Floor Heating Control
The Schluter DITRA-HEAT-E-WiFi Thermostat combines intelligent temperature control with modern connectivity for electric underfloor heating systems. Designed specifically for use with DITRA-HEAT-E-HK heating cables, this advanced programmable thermostat ensures precise comfort management with effortless control via touchscreen or mobile app.
Featuring Wi-Fi connectivity, a 3.5" color touchscreen, and a built-in Class A GFCI, the thermostat allows convenient monitoring and adjustment of your heating system from anywhere. It comes pre-programmed for quick setup and includes an intuitive setup wizard to guide you through installation and scheduling. For larger installations exceeding 15 amps, the DITRA-HEAT-E-RR power module can be added for expanded load capacity while maintaining a single control point.
Key Features and Benefits
- Wi-Fi Connectivity — Monitor and adjust your floor heating system via web or mobile app from anywhere
- Smart Control and Scheduling — Pre-set program with up to 6 customizable events per day for comfort and energy savings
- 3.5" Color Touchscreen — Bright, interactive display for easy navigation and setup
- Energy and Cost Tracking — View detailed energy usage and consumption data directly on the display
- Built-in Class A GFCI — Integrated safety protection for wet-room installations
- Multi-Voltage Compatibility — Supports both 120 V and 240 V DITRA-HEAT-E-HK heating cables
- Expandable System — Connect up to two heating cables (total load ≤ 15 A) or use with the DITRA-HEAT-E-RR power module for larger areas
- Weather Display — View local temperature and weather forecasts directly on the thermostat screen
- Intuitive Setup Wizard — Step-by-step guidance for effortless programming and configuration
- Sleek, Modern Design — Blends seamlessly into any interior with a premium aesthetic finish
Please refer to the Interactive User Guide and Schluter-DITRA-HEAT Installation Handbook for complete DITRA-HEAT system installation instructions.
- DITRA-HEAT-E-WiFi must be installed in an electrical box. A single gang, deep electrical box or a double gang electrical box with a single gang mud ring is recommended to provide room for the wiring.
- The power supply must be shut off and all electrical connections must be made by a qualified electrician, according to the electrical and building codes effective in your region.
- Connect the heating cable ground braid to the ground wire from the electrical panel.
- Remove the faceplate from the thermostat power base by loosening the screw and tilting the thermostat upward. Remove the back cover clip as well.
- For ease of installation, form the electrical line wires into an "M" or accordion shape. This will make it easier to fold them neatly into the electrical box. Loosen the load screws at the top of the thermostat until they stop.
- Insert the heating cable conductors into the load terminals from the bottom. Since there is no polarity, either heating cable conductor can be connected to either load terminal.
- Secure the conductors by tightening the screws.
- Insert the electrical line wires into the line terminals from the top. Refer to the back of thermostat for proper wiring configuration.
- Secure the wires by tightening the screws and fold the wires into the electrical box.
- Align and secure the thermostat power base to the electrical box.
- Thread the floor temperature sensors through the opening at the bottom right of the thermostat power base. Tape up the secondary floor temperature sensor and secure to the power base.
- Strip the ends of the floor temperature sensor to expose the wires for ease of installation. Insert the floor temperature sensor wires into terminals C and D. Note that the floor temperature sensor wires have no polarity and can be interchanged between C and D terminals. Tighten the screws to secure the wires.
- The power, heating cable, and floor temperature sensor connections are now complete. Replace the thermostat faceplate and tighten the screw at the bottom of the unit.
Note: Two DITRA-HEAT-E-HK heating cables can be connected and controlled by a single DITRA-HEAT-E-WiFi thermostat if the total current is less than 15 amps. The heating cable leads must be wired in parallel according to applicable electrical and building codes. Multiple DITRA-HEAT-E-HK heating cables over 15 amps cannot be connected to a single DITRA-HEAT-E-WiFi thermostat. Additional DITRA-HEAT-E-WiFi thermostats must be used or the DITRA-HEAT-E-WiFi thermostat may be combined with the DITRA-HEAT-E-RR power modules.

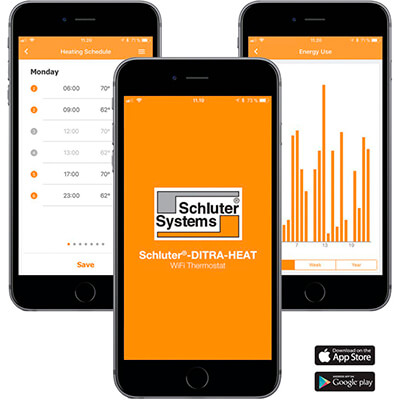

Control your floor heating system from your smartphone or online
Set-up wizard walks you through programming
3.5" color screen with easy interactive touch control
The thermostat can detect an open window and shut off heating (so you don’t waste energy!)
Displays local temperature and weather forecast
Even small hands can’t alter the temperature
Specifications
| Model | DHERT104/BW | Type | Programmable Wi-Fi Touchscreen Thermostat |
|---|---|---|---|
| Voltage Supply | 120 V / 240 V AC, 50/60 Hz | Load Capacity | 15 A maximum (resistive load) |
| Power Output | 1,800 W @ 120 V / 3,600 W @ 240 V | GFCI Protection | Built-in Class A (5 mA trip level) |
| Compatible Systems | DITRA-HEAT-E-HK heating cables | Additional Modules | DITRA-HEAT-E-RR power module (for loads >15 A) |
| Temperature Range | +41°F to +104°F (+5°C to +40°C) | Floor Limit Range | +41°F to +104°F (+5°C to +40°C) |
| Display | 3.5" Color Touchscreen | Connectivity | Wi-Fi enabled (via mobile app or web interface) |
| Ambient Temp. Range | +32°F to +104°F (0°C to +40°C) | Warranty | 3-Year Limited Warranty |
| SKU | S DHE RT 104/BW |
|---|---|
| UPC | 4011832163906 |
| Non-Returnable | No |
| Manufacturer | Schluter |
| Manufacturer Part Number | DHERT104/BW |
| Voltage | 120/240 |
| Weight (lbs.) | 1.19 |
| Dimensions (L x W x H) | 6" x 3.6" x 2.8" |
