Schluter KERDI-LINE-VARIO Linear Drain Grates and Channel Kit

Schluter KERDI-LINE-VARIO is a low-profile, variable-length linear shower drain specifically designed for bonded waterproofing assemblies. Schluter KERDI-LINE-VARIO can be initially cut to size on-site to fit the specific dimensions of the shower. The floor can be sloped on a single plane to KERDI-LINE-VARIO, which enables the use of large-format tiles and creates interesting design opportunities. Schluter KERDI-LINE-VARIO is best suited for placement against the wall but can also be installed in the center of the shower. For drain placement at the entrance of the shower, please refer to the KERDI-LINE Linear Drain.

Schluter KERDI-LINE-VARIO consists of a polypropylene flange, a formed stainless steel channel, a stainless steel grate, and stainless steel end caps for applications involving trimmed lengths.

The Schluter KERDI-LINE-VARIO flange comprises an injection molded polypropylene drain body featuring a standard 2" (50 mm) NPT outlet, which attaches to a standard, threaded, mechanical coupling to allow for an adhesive chemical bond to the drainpipe. Schluter KERDI-LINE-VARIO is supplied with PVC and ABS couplings. The simple connection makes KERDI-LINE-VARIO suitable for new construction and renovations. The perimeter of the polypropylene flange consists of a bonding flange laminated with a collar made of KERDI. This ensures a simple and secure connection to the bonded waterproofing assembly, both in the floor area and on adjacent walls. The Schluter KERDI-LINE-VARIO flange kit contains corresponding polystyrene foam supports to set the drain elevation to the corresponding KERDI-SHOWER-LT/-LTS shower trays.

The Schluter KERDI-LINE-VARIO channel features a formed stainless steel design 1-11/16" wide by 3/8" high (43 mm wide by 10 mm high) with a drainage opening cut in the center. The channel comes in lengths of 48" and 96" (122 cm and 244 cm) and is designed to be trimmed to length to ensure a proper fit in custom applications. The flange outlet may be positioned anywhere within the overall trimmed length of the channel to avoid obstacles encountered during construction (e.g., floor joists).

Note: The KERDI-LINE-VARIO channel minimum recommended tile thickness is 3/8" (10 mm). The shortest allowable length to cut the channel and grate is 10" (25.4 cm).

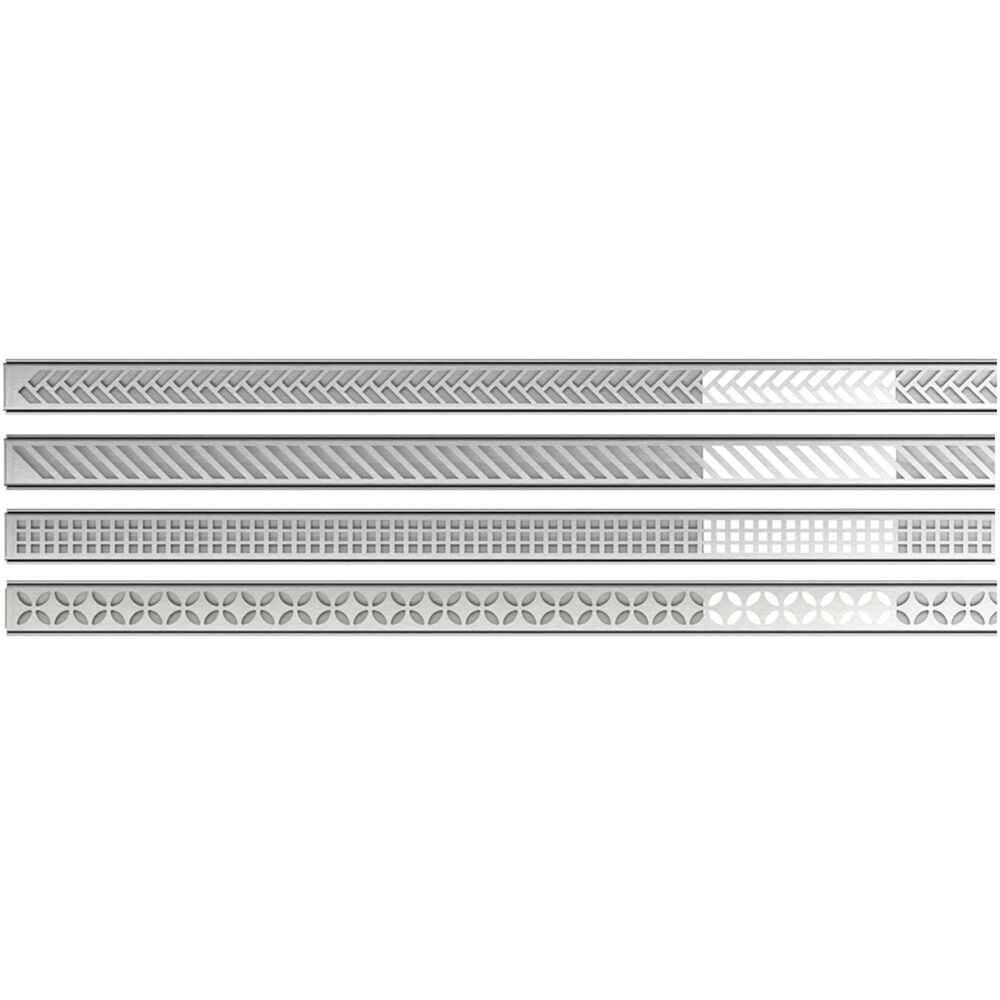

The Schluter KERDI-LINE-VARIO grate is a formed stainless steel design that nests into the corresponding channel. The overall length of the grate must be trimmed to the same length as the channel. If the grate is trimmed, the supplied end caps should be used to provide a clean finished look. The KERDI-LINE-VARIO grate assembly features a minimal reveal after installation and is available in four designs: SQUARE, FLORAL, HERRINGBONE, and SLANT, in a brushed stainless steel finish (EB).

Schluter KERDI-LINE-VARIO Linear Drain Grates and Channel Kit Features:

• Grate and channel assembly offered in lengths of 4' and 8', and can easily be cut to size on-site
• Slim design: only 1-11/16" (43 mm) wide
• Suitable for wall-adjacent and center drain placement
• End caps provided for trimmed edges, creating a clean, finished look
• Four grate designs in brushed stainless steel: SQUARE, FLORAL, HERRINGBONE, and SLANT
• Flange kit includes integrated KERDI collar for a secure, waterproof connection, as well as both PVC and ABS couplings
• Flange can be placed wherever desired as per the position of the drainage outlet
• Flange kit must be purchased separately
