The Schluter KERDI-LINE is a low profile linear floor drain specifically designed for bonded waterproofing assemblies. KERDI-LINE can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other applications that require waterproofing and drainage.

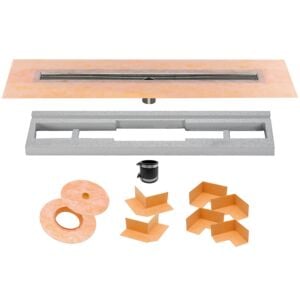

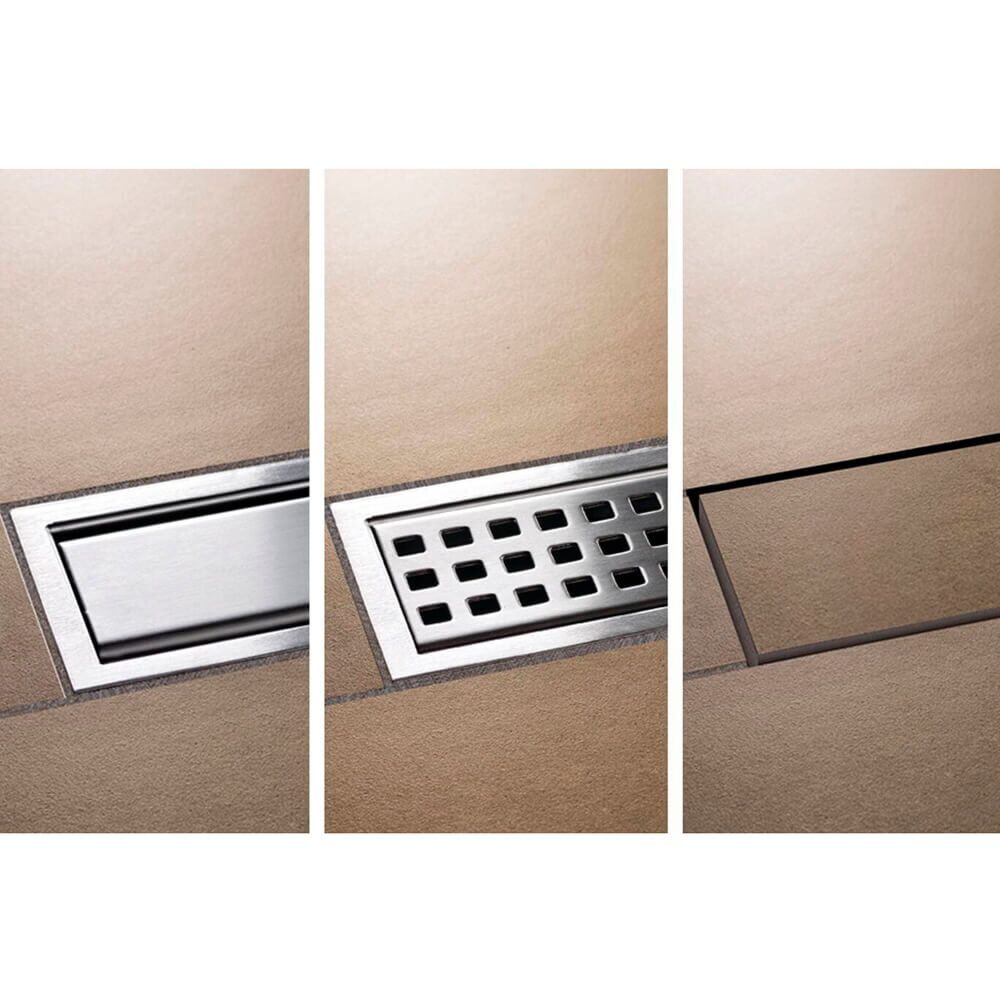

The KERDI-LINE grate assembly consists of a stainless steel frame that can be seamlessly adjusted to the thickness of the ceramic tile or stone covering – 1/8" to 1" (3 mm to 25 mm) for standard grate assemblies and 1/4" to 23/32" (6 mm to 18 mm) for style grate assemblies – and stainless steel grates that are placed within the frame. The standard grate assembly frame features a 3/8" (10 mm) wide reveal after installation and can be combined with one of two grate options: SOLID (A) or SQUARE (B). Each standard assembly is available in a brushed or chrome finish. The SQUARE (B) option is also available with a locking mechanism (brushed stainless steel, 3/4" – 19 mm frame only) for applications where tamper resistance is desired or required (e.g., healthcare and education facilities, etc.). The style grate assembly frame features a minimal reveal after installation and can be combined with one of three grate options: FLORAL (E), CURVE (F), or PURE (G). Each style assembly is available in a brushed finish. The covering support is placed flush with the top of the channel body and can therefore accommodate any thickness tile covering.
KERDI-LINE-STYLE grate designs are available in 20" to 48" (50 cm – 120 cm) lengths with a 29/32" (23 mm) frame height which is able to accommodate 1/4" to 11/16" (6mm – 18 mm) covering thicknesses.
The KERDI-LINE Channel Body Drain must be purchased separately.
Download Schluter Shower Brochure
Download Schluter Shower System Installation Handbook
Download Schluter Shower Checklist
Download Schluter Shower System Data Sheet
Download Schluter Floor Drains Data Sheet
Download Schluter Next Generation Bathroom
|In the Box||
|Weight (lbs.)||3.86 - 8.82|
|Warranty||5 Year Limited Warranty|
|Dimensions (L x W x H)||19 11/16" x 2 29/32" x 1 1/8" - 70" 13/16 x 2 29/32" x 3/4"|
