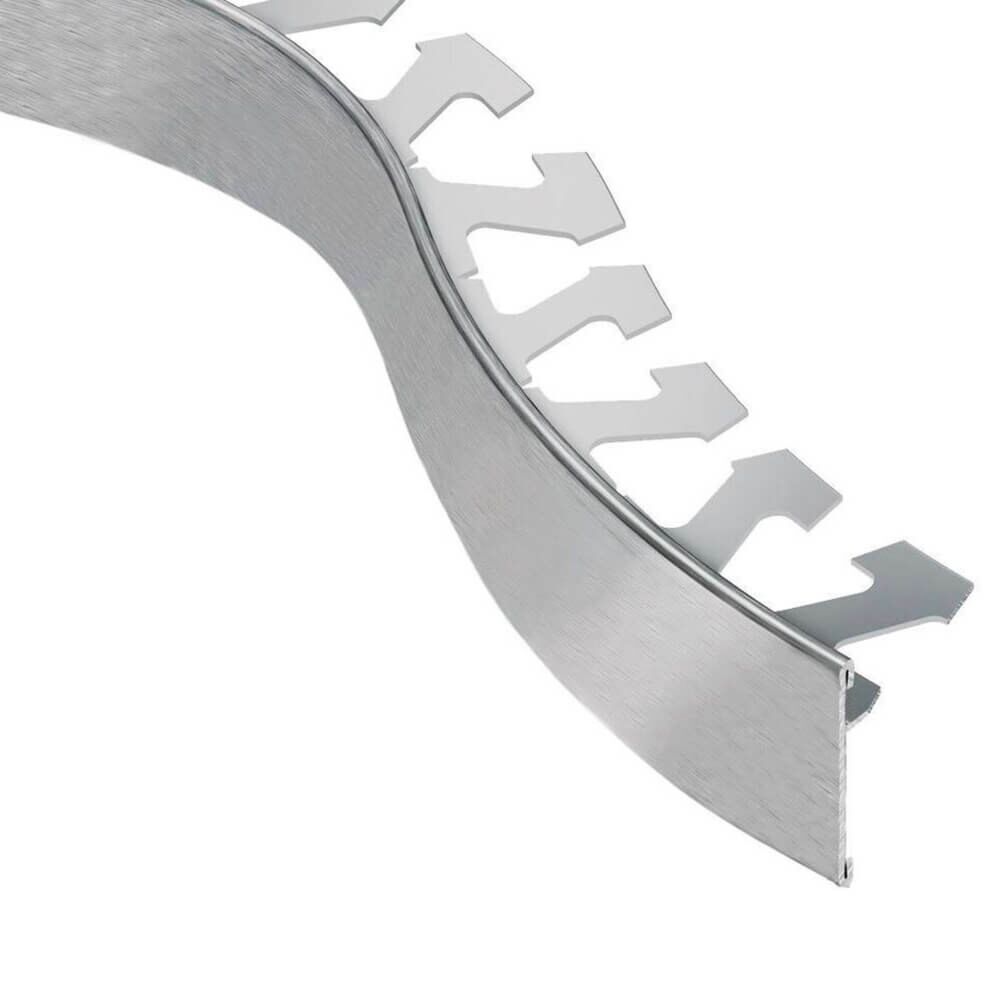

Schluter SCHIENE-STEP Radius Stainless Steel Stair Nose Tile Edging Trim
Schluter SCHIENE-STEP is a radius finishing and edging profile for ceramic tile and natural stone on countertops, stairs, and tile-over-tile wall applications. Stainless steel versions provide durable tile edge protection and clean transitions.
Brand: Schluter
Availability: Ships from Factory (More Info)
Shipping: $49.95 Flat rate ground shipping for unlimited Schluter products in this order. Some exclusions apply.(More Info)
Schluter SCHIENE-STEP: Stainless Steel Radius Tile Edge Trim
Schluter SCHIENE-STEP is a finishing and edging profile designed for ceramic tile and natural stone installations on countertops, stairs, and tile-over-tile wall applications. Its radius design creates a clean transition while helping protect exposed tile edges from chipping and damage.
The profile features a trapezoid-perforated anchoring leg that is secured in the mortar bond coat beneath the tile. Its vertical section covers the exposed edge of the tile assembly, countertop subassembly, stair riser, or existing wall tile, depending on the application.
The brushed stainless steel version is available in three vertical leg lengths: 1-1/2" (39 mm) for countertops, 1-3/16" (30 mm) for stairs, and 7/16" (11 mm) for tile-over-tile wall applications. This range allows the profile to accommodate different edge coverage requirements.
SCHIENE-STEP is also available in anodized aluminum for residential stair applications where the stairs are not exposed to heavy traffic. The anodized aluminum version is offered with 1-3/16" (30 mm) and 1-1/2" (39 mm) vertical legs. The integrated joint spacer on the anodized aluminum version establishes a defined joint cavity between the tile and profile.
Key Features and Benefits
- Brushed Stainless Steel Construction
Provides a durable, professional finish for exposed tile edges - Protects Tile Edges
Helps prevent exposed ceramic and natural stone edges from chipping and damage - Multiple Vertical Leg Sizes
Stainless steel versions are available with 1-1/2" (39 mm), 1-3/16" (30 mm), or 7/16" (11 mm) vertical legs for different applications - Trapezoid-Perforated Anchoring Leg
Secures the profile in the mortar bond coat beneath the tile - Ribbed Vertical Leg
Covers countertop subassembly edges or stair risers for a clean finished appearance - Radius Design
Creates a smooth transition along exposed tile edges - Tile-Over-Tile Applications
The "T" configuration finishes and protects both existing and new tile edges on walls - Matching Accessories
Stainless steel versions offer matching 90° and 135° inside and outside corners, connectors, and end caps, depending on the vertical leg length
Schluter Edging Trim Installation
- Select the profile according to tile thickness and format.
- Using a notched trowel, apply thin-set mortar to the area where the profile is to be placed. If the JOLLY, QUADEC, RONDEC, RONDEC-DB, DECO-DE, FINEC, or FINECSQ profile is to be used as edging for an outside wall corner, finish tiling one wall first; then trowel thin-set mortar over the corner area of the second wall.
- Press the perforated anchoring leg of the profile into the mortar and align.
- Trowel additional thin-set mortar over the perforated anchoring leg to ensure full coverage and support of the tile edges.
- Solidly embed the tiles so that the tiled surface is flush with the top of the profile; the profile should not be higher than the tiled surface, but rather up to approx. 1/32" (1 mm) lower.
- Set the tile to the integrated joint spacer, which ensures a uniform joint of 1/16" - 1/8" (1.5 - 3 mm). With the stainless steel profiles, leave a space of approximately 1/16" - 1/8" (1.5 - 3 mm).
- Fill the joint completely with grout or setting material.
- Work with materials and tools that will not scratch or damage sensitive surfaces. Setting materials must be removed immediately, especially from aluminum.
Note: Matching corners and connectors are available. Corners are held in place with thin-set mortar. Fill the ends of the profile with thin-set mortar prior to inserting the accessories. Connectors are held in place with a friction fit. Insert the connector into the profile approximately half the length of the connector piece and connect the adjacent profile.
How do I cut profiles?
Schluter profiles are available in a variety of different materials , so methods for cutting vary. Below are best practices for cutting according to material type.
Plastic
Plastic profiles may be cut using Schluter SNIPS or similar. It is important to make sure the blade is sharp in order to ensure a clean cut.
Aluminum
One option for cutting aluminum profiles is to simply use a hacksaw. Look for a bimetal blade and select the highest teeth per inch, or TPI, available. A miter box is recommended to help ensure a straight cut. Aluminum profiles may also be cut using a variable-speed angle grinder with the Schluter-PROCUT-TSM cutting wheel. Set the angle grinder to the lowest speed. A clamp or cutting jig can be used to secure the profile and help ensure a straight, clean cut. Finally, aluminum profiles can also be cut using a chop saw or miter saw with a non-ferrous blade. After cutting, make sure to remove any burs with a file before installation.
Brass
Brass profiles can be cut by using a hacksaw with a bimetal blade with the highest teeth per inch available, or by using a chop saw or miter saw with a non-ferrous blade. Removing any burrs from the cut end of the profile with a file (or similar) is also recommended.
Stainless Steel
The simplest option for cutting stainless steel is to use a variable-speed angle grinder with the Schluter PROCUT-TSM cutting wheel. Set the angle grinder to the lowest speed. Another option for cutting stainless steel profiles is to use a band saw with a metal cutting blade. After cutting, make sure to remove any burs with a file before installation.
| SKU | S SCHIENE-STEP |
|---|---|
| Weight (lbs.) | 2.35 |
| Non-Returnable | No |
| Manufacturer | Schluter |
| Warranty | 5 Year Limited Warranty |
| Trim Material | Stainless Steel |
| Trim Length | 8' 2-1/2" |
