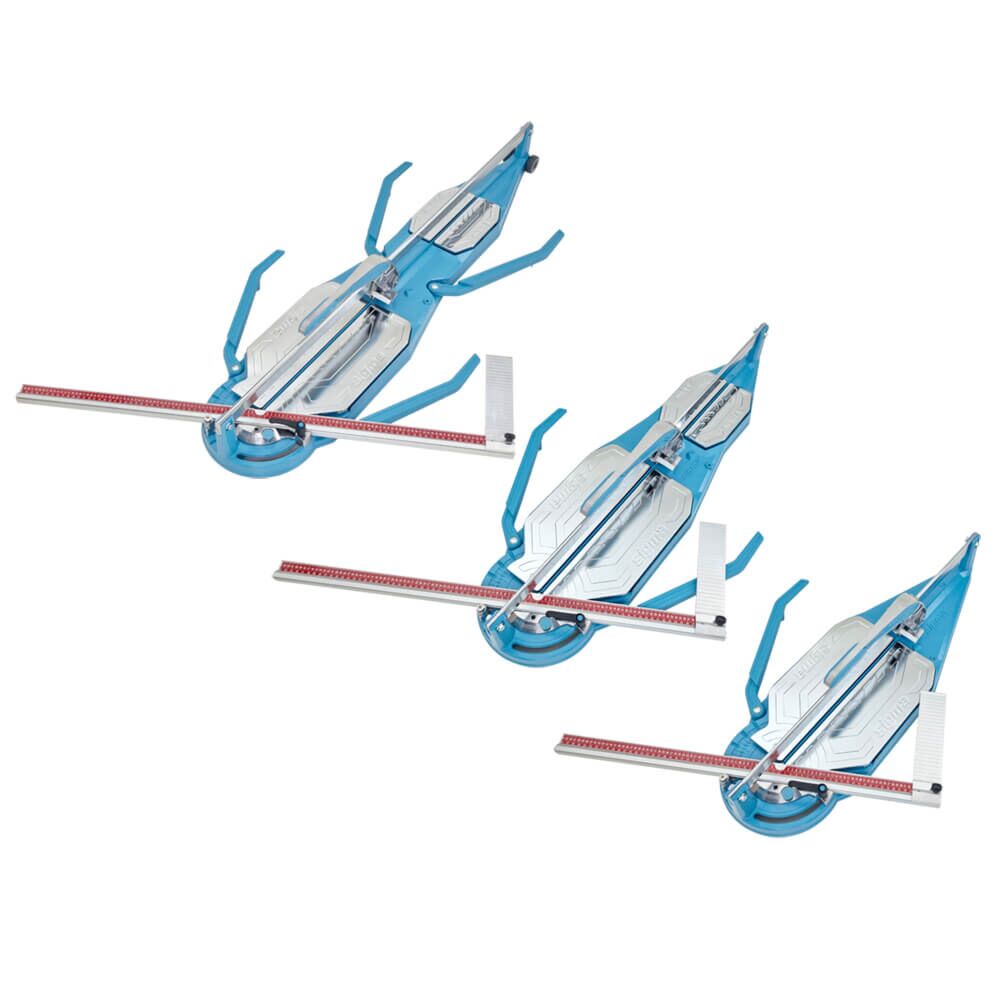

Sigma NEX Serie 4 Push Tile Cutter
Sigma NEX Serie 4 is a professional push tile cutter with a rigid steel structure, ball-bearing carriage, and ergonomic NEX handle. It delivers smooth, precise scoring and splitting of rough, thick, and large-format tiles.
Brand: Sigma
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Standard (More Info)
Sigma NEX Serie 4 Push Tile Cutter: Evolution of The Pushing Incision
Sigma NEX Serie 4 is a professional push tile cutter engineered for precise scoring and splitting of demanding ceramic and porcelain tiles. Its rigid structure provides stability throughout the cutting process, while the precision carriage helps maintain accurate, straight cuts over extended use.
The ergonomic NEX handle uses a pushing incision system that allows deep scoring with minimal effort. Its 16 mm scoring wheel remains clearly visible from the operator side and uses double suspension to provide cushioned scoring on structured and uneven tile surfaces. The wheel is mounted on a roller bearing and guided laterally by an anti-friction metal shell for smooth movement and reduced clearance.
The sliding carriage runs on three double-row ball bearings for wear-resistant, precise movement along the steel rails. An automatic steel compensator adjusts the rail preload, while the automatic handle-holding system simplifies tile positioning before scoring.
For splitting, lifting the handle automatically rotates the 120 mm splitting foot into position. The interchangeable anti-mark protection helps prevent unwanted marks on the tile, while the front rubber pad absorbs impact during scoring. The swivel measurement bar includes a spare scoring wheel compartment and can be extended with the optional 17A extension.
Key Features and Benefits
- Rigid Serie 4 Structure
The rigid construction provides excellent stability during both scoring and splitting, helping maintain accurate cuts across demanding tile applications - Ergonomic NEX Push Handle
The NEX handle is designed for easy, deep pushing cuts with minimal effort, making it well suited for thick, rough, and large-format tiles - 16 mm Scoring Wheel
The 16 mm scoring wheel is positioned for clear operator visibility and features double suspension for smooth scoring of structured tile surfaces - Bearing-Mounted Scoring System
The scoring wheel rotates on a roller bearing and is laterally guided by an anti-friction metal shell for smooth operation and reduced lateral play - Precision Ball-Bearing Carriage
Three double-row ball bearings allow the carriage to slide smoothly along the steel rails while maintaining long-term cutting precision - Automatic Handle Positioning
An automatic system holds the handle in position to make tile placement easier and speed up the cutting process - 120 mm Splitting Foot
The wide 120 mm splitting foot provides stable pressure during the breaking phase and features interchangeable anti-mark protection - Adjustable Rail Preload
An automatic steel compensator adjusts slide preload on the rail, helping maintain smooth carriage movement and consistent accuracy over time

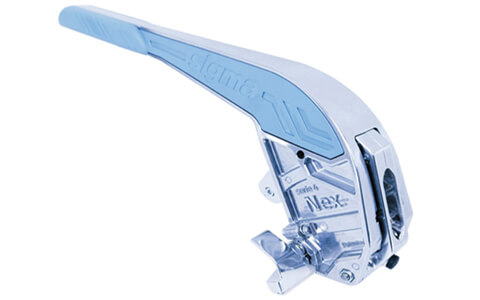

"NEX" Handle
Pushing incision, easy and deep with minimum effort, perfect for rough, thick and large tiles
Ergonomic Handle Specific for Pushing Incision
The 16 mm diameter scoring wheel is always clearly visible on the operator side and equipped with double suspension for the cushioned scoring of structured tiles
120 mm Wide Splitting Foot with Interchangeable Anti-Mark Protection
The scoring wheel rotates on a roller bearing, guided laterally by an anti-friction metal shell inserted in a CNC milled holder,to avoid friction and lateral clearance

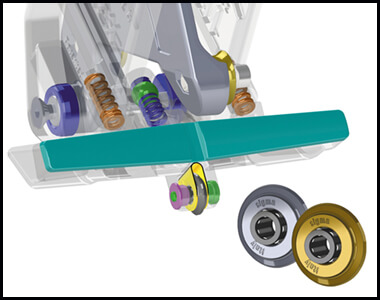

Scoring wheels diameter 16 mm with internal bearing for maximum smoothness in the scoring phase, also available in TIN coated version
Automatic Steel Compensator for Adjusting the Slide Preload on the Rail

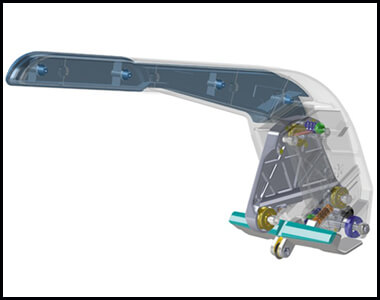

The sliding carriage is wear-free, thanks 3 double-row ball bearings guarantee long-term precision
There is an automatic system that holds the handle up to facilitate the insertion of the tile

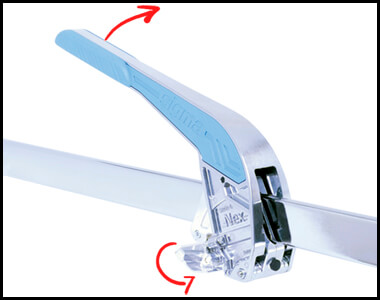

For splitting phase, simply lift the handle to allow automatic rotation of the foot
The front protective rubber pad absorbs the impact during the incision in order not to damage the base
Specifications
| Part # | 4BN | 4CN | 4DN | 4EN | 4FN |
|---|---|---|---|---|---|
| Cutting Length | 24.4" (62 cm) | 29.9" (76 cm) | 37.4" (95 cm) | 49.2" (125 cm) | 61.0" (155 cm) |
| Diagonal Cutting length | 17.2" (43.8 cm) | 21.1" (53.7 cm) | 26.4" (67.2 cm) | 34.8" (88.4 cm) | 43.1" (109.6 cm) |
| Cutting Height | 3/4" (0-19 mm) | 3/4" (0-19 mm) | 3/4" (0-19 mm) | 3/4" (0-19 mm) | 3/4" (0-19 mm) |
| Separator Power | 2645 lb (1200 Kg) | 2645 lb (1200 Kg) | 2645 lb (1200 Kg) | 2645 lb (1200 Kg) | 2645 lb (1200 Kg) |
| Weight | 23.1 lb (10.5 Kg) | 27.7 lb (12.6 Kg) | 32.8 lb (14.9 Kg) | 49.1 lb (22.3 Kg) | 57.9 lb (26.3 Kg) |
Downloads
| SKU | NEX SERIES 4 |
|---|---|
| Manufacturer | Sigma |
| Max Length of Cut (in.) | 24.4" - 61.0" |
| Max Depth of Cut (in) | 3/4" |
| Diagonally Cuts (in.) | 17.2" - 43.1" |
| Weight (lbs.) | 23.1 - 54.2 |
