Wedi S-DRY Bonding Flange Drain

Wedi S-DRY Bonding Flange Drain — Mortar Bed Shower Drain

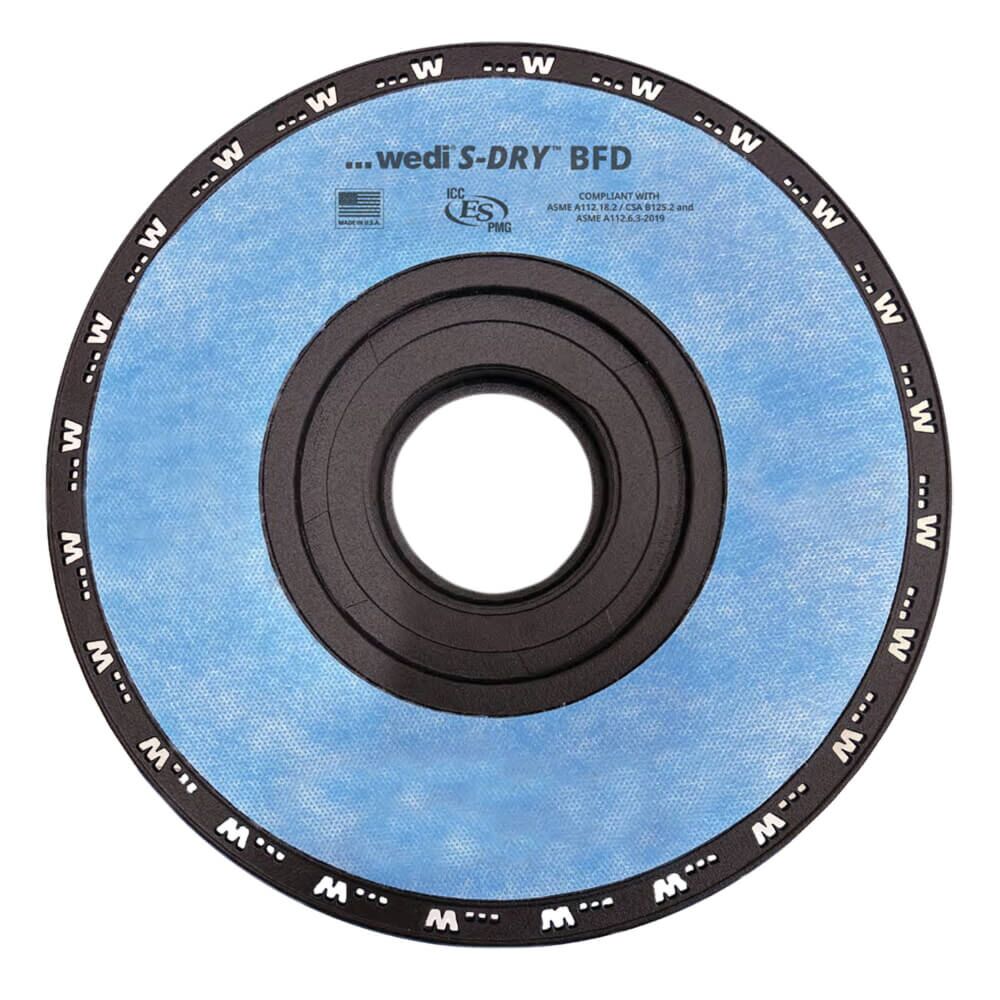

The Wedi S-DRY Bonding Flange Drain is a high-performance drain solution engineered for mortar bed shower floor assemblies that are topically waterproofed with S-DRY membrane systems. Designed for integrated use within the S-DRY Shower System, this drain provides secure, long-lasting waterproof performance in both residential and commercial applications.

The drain features a thermally fused membrane-to-flange connection, eliminating concerns about delamination and ensuring reliable waterproofing at one of the most critical connection points. A pressure-fit design allows direct connection to ABS or PVC waste pipes cut flush to the floor, while the low-profile drain body extends only 3/4 in. into the subfloor—ideal for installations where pipes are positioned near floor joists.

Included spacers allow adjustment for dry pack mortar thicknesses ranging from 1/2 in. to 1 1/2 in., and the integrated support system stabilizes the flange at various installation heights. The drain cover accommodates tile thicknesses from 3/16 in. to 5/8 in. and provides 1/4 in. lateral movement in all directions, simplifying alignment with tile and grout layouts.

With minimal thinset required in the drain cover area and a 2-part cementitious waterproofing compound bonding the membrane to the flange, the system reduces moisture buildup and enhances drying efficiency—delivering dependable performance and refined finishing results.

Key Features and Benefits

• Designed for Mortar Bed Installations — Specifically made for use in mortar bed shower floor assemblies topically waterproofed with S-DRY membrane
• Thermally Fused Flange Connection — Factory-fused membrane-to-flange bond eliminates risk of delamination and ensures long-term waterproof integrity
• Pressure-Fit Pipe Connection — Connects securely to ABS or PVC waste pipe cut flush to the floor for streamlined installation
• Low-Profile Drain Body — Extends only 3/4 in. into the subfloor, allowing connection to waste pipes positioned close to floor joists
• Adjustable Installation Height — Includes spacers to accommodate dry pack mortar thicknesses from 1/2 in. to 1 1/2 in
• Integrated Support System — Stabilizes the drain and flange at varying installation heights for consistent performance
• Optimized Moisture Management — Minimal thinset required in the drain cover area helps reduce moisture buildup and shorten drying times
• Advanced Waterproof Bonding — Uses a 2-part cementitious waterproofing compound to adhere membrane to the drain flange, preventing moisture wicking beneath the membrane
• Flexible Tile Compatibility — Drain cover supports thin tile (3/16 in.) up to 5/8 in. thick tile with 1/4 in. lateral adjustment in all directions for precise layout alignment

Downloads

Wedi Technical Handbook
