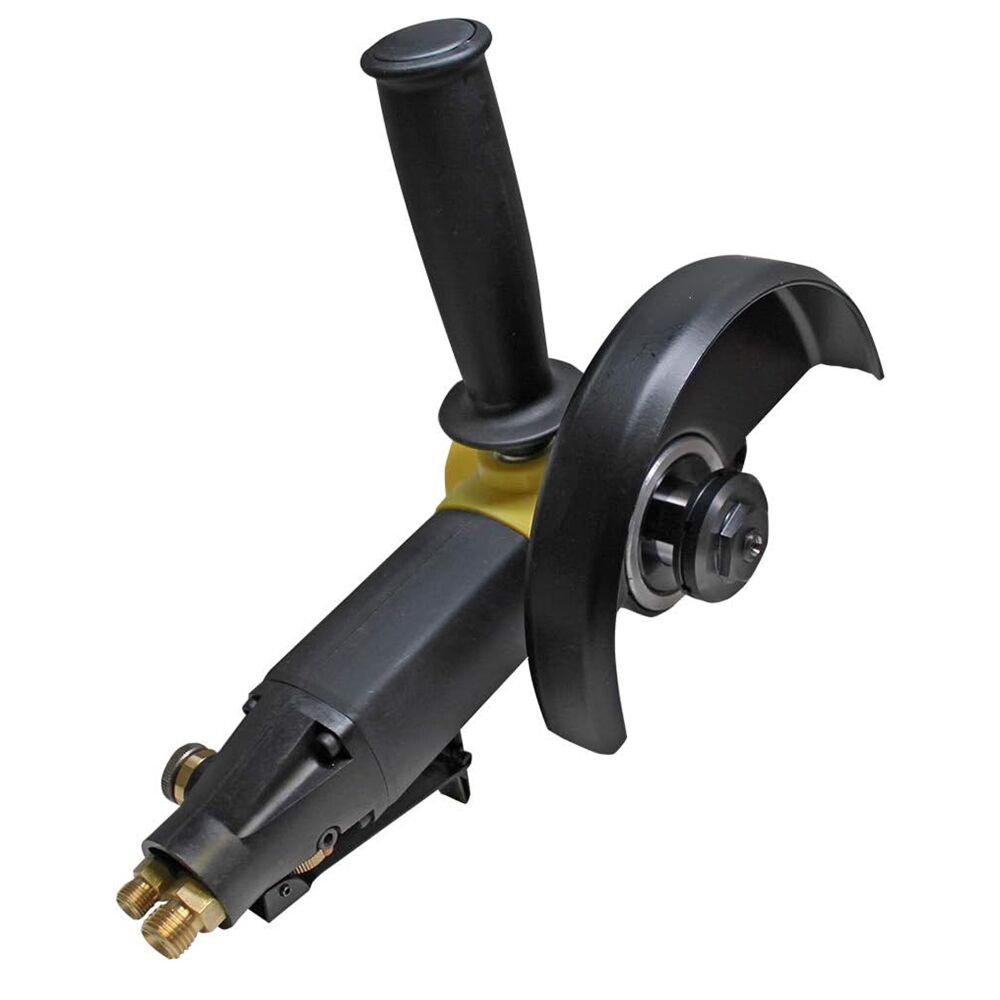

Alpha PSC-600 Pneumatic Stone Grinder/Cutter - 6"

Alpha PSC-600 Pneumatic Stone Grinder/Cutter - 6"

More Views

Alpha PSC-600 Pneumatic Stone Grinder/Cutter - 6"
$485.00

Product Description

The Alpha PSC-600 is a newly developed high-performance wet pneumatic stone cutter/grinder that will set a new “normal” in stone fabrication shops. It is common knowledge that electric power tools don’t last very long due to the stone dust or water splash which damages them easily.

The PSC-600 comes with a very unique center water-feed system to deliver ample water on the both sides of the diamond blade, which will keep the dust down on the floor and also enhance the performance and life of your diamond blades. In addition, we made the ergonomic end case with a composite material in consideration of operator comfort. and a rear exhaust system.

The Alpha PSC-600 is smaller and lighter than electric angle grinders and offers better maneuverability along with all the safety features. This easy to use stone cutter comes with 15 ft. all–weather hoses and a convenient water quick coupler with shut off valve.

Alpha PSC-600 features:

  • High-Performance, Pneumatic Cutting Tool
  • Central Water-Feed System Delivers Ample Water Regardless of Position
  • No-Load 8,500 RPMs
  • 15ft. All-Weather Hoses with Flexibility Down To -40°F Or +140°F
  • Newly Developed Motor Produces More Power
  • Lightweight and Ergonomically Designed for Better Maneuverability
  • Spring Return Throttle to Avoid Accidental Start
  • Composite End Case Prevents Freezing Hands
  • Silicon Gear Head Cover Provides Cushion and Keeps Hands Warm
  • Enhanced Spindle Shaft for Easy Tool Removal (Wrench Included)
  • Works Great as a Grinder Also
  • One Year Warranty* (*See manual for details)

Alpha PSC-600 Specs:

Model Number PSC-600
Air Pressure 85 PSI (6 Bar)
Air Consumption 15 CFM (425L/min)
No Load Speed 8,500 RPM
Weight 2.9 lbs
Air Inlet 1/4” BSPP
Water Inlet 1/8” BSPP
Arbor 7/8” (22mm)
Max. Cutting Disc Diameter 7/8” (22mm)
Length 7-1/2” (190.5mm)

Download User Manual

Download Flyer PSC-600

Product Specifications

In the Box:
  • Air Hose (15ft / 4.5m) 1
  • Water Hose (15ft / 4.5m) 1
  • Side Handle (reversible) 1
  • Rust Inhibitor Oil (6.7oz / 200ml) 1
  • Screw (w/ O-Ring Seal for Oil Port) 1
  • Exhaust Hose with Clamp 1
  • Spring Washer 1
  • 6" Safety Guard 1
  • Double End Wrench (19mm / 22mm) 1
  • Phillips Screwdriver 1
  • Water Quick Coupler w/ Shut Off Valve 1
  • O-Ring (O-Ring for Water Valve Repair) 1
  • Single Open Wrench (22mm) 1
  • Hex Wrench (6mm) 1
  • Inner Flange for Cutting 1
  • Outer Flange 1
  • L-Bracket 1
  • Inner Flange for Grinding 1
SKU: PSC-600
Manufacturer: Alpha Tools
MPN: PSC-600
Size (L x W x H): 13.5" x 11.5" x 3.5"
Arbor Size: 7/8”
No Load Speed (rpm): 8,500
Pad Size: 6"
Wet or Dry: Wet or Dry
Net Weight (lbs.): 2.9
