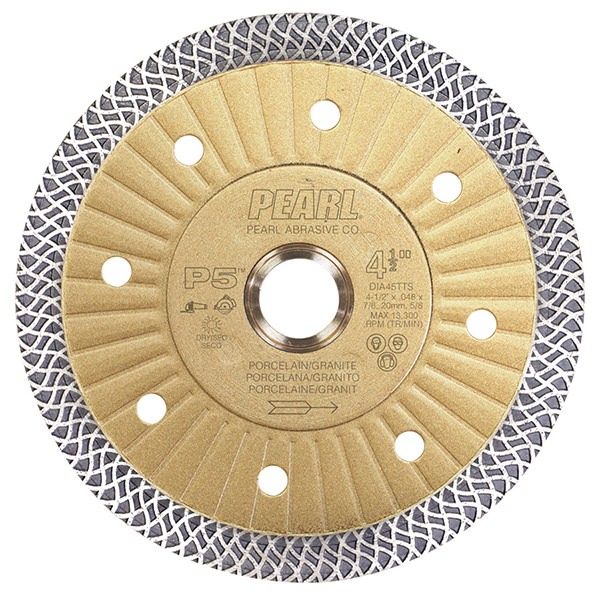

Pearl Abrasive P5 Thin Turbo Mesh Blades - Multiple Sizes

The Pearl Abrasive P5 Thin Turbo Mesh Blade is specially designed for cutting extra hard ceramics, porcelain, and other hard/dense materials.
As low as $28.95

Availability: Sold in Store (More Info)

Shipping: Free on orders over $99 to Continental US (More Info)

Only %1 left
SKU
P5 DIA TTS

The Pearl Abrasive P5 Thin Turbo Mesh Blade features a ridged core design that adds stability, reduces friction, and removes the debris from the cutting path, extending the blade life! The turbo-mesh rim and new ridged core design virtually eliminate heat caused by friction.

Pearl Abrasive P5 Thin Turbo Mesh Blade is designed for cutting porcelain, granite, hard tile, and natural stone, and feature:

  • Large 3/8" (10mm) diamond rim.
  • Super fast cutting. Extra long life.
  • Thin turbo-mesh rim and core for fast cutting and minimal chipping.
  • Ideal for cutting extra hard ceramics, porcelain, and other hard/dense materials.
  • The reinforced inner core prevents flexing and provides straight cuts.
  • The blade cuts extremely cool.
  •  5" and 6" has 4-holes
  • Wet or dry cutting. 10" wet cutting only.

To get the best performance:

  • Don’t drop or jam in the cut.
  • Don’t leave on the grinder when not in use.
  • Don’t grind, twist, or side-stress.
Pearl Abrasive P5 Thin Turbo Mesh Blade Quick Specs:

Pt. Number  Specs Max RPM
DIA04TTS 4" x .048" x 7/8", 20mm, 5/8" 15,000
DIA45TTS 4 1/2" x .048" x 7/8", 20mm, 5/8" 13.300
DIA05TTS 5" x .048" x 7/8", 20mm, 5/8" Quad Hole 12,000
DIA06TTS 6" x .048" x 20mm, 7/8", 5/8" Quad Hole 10,200
DIA07TTS 7" x .055" x 7/8", DM, 5/8" 8,730
DIA10TTS 10" x .063" x 7/8", 20mm, 5/8" 6,115





More Information
SKU P5 DIA TTS
Non-Returnable No
Manufacturer Pearl Abrasive
Blade Type Continuous Rim Turbo
Arbor Size 5/8", 7/8", 20mm
Ceramic Tile Peformance Excellent
Glass Tile Peformance Fair
Thickness .048" - .063"
Wet or Dry Wet or Dry
Segment Height (in) .393"
Size (L x W x H) 4" x 4" x .048" - 10" x 10" x .063"
Net Weight (lbs.) 0.31 - 1.52
Write Your Own Review
You're reviewing: Pearl Abrasive P5 Thin Turbo Mesh Blades - Multiple Sizes
Customer Questions
does this P5 blade cut concrete and when you say do not side stress, based on its design it looks like you can cut with the side of the blade with small amounts of pressure ? does your wording mean you can't side cut at all.. Which is you best concrete cutting blade that is designed similar to this where you can cut straight and can apply minimal cutting pressure to the side I have a 4.5 and 7" angle grinder, which size blade works the best to cut concrete. Is there advantages to a larger blade other than it can cut deeper? Is there a place I can go on the internet to see a video of this blade being utilized
The P5 is a thin blade really made for straight cuts. If you looking for a concrete blade our MWI Fireball blade is a better option. We carry both the 4.5 in. and 7 in. If you are cutting a slight curve the 4.5 in. is a better choice. Because of the diameter of the blade. However if you are cutting a sink hole in a concrete counter top you might want to invest in a contour blade, just makes the job easier.
