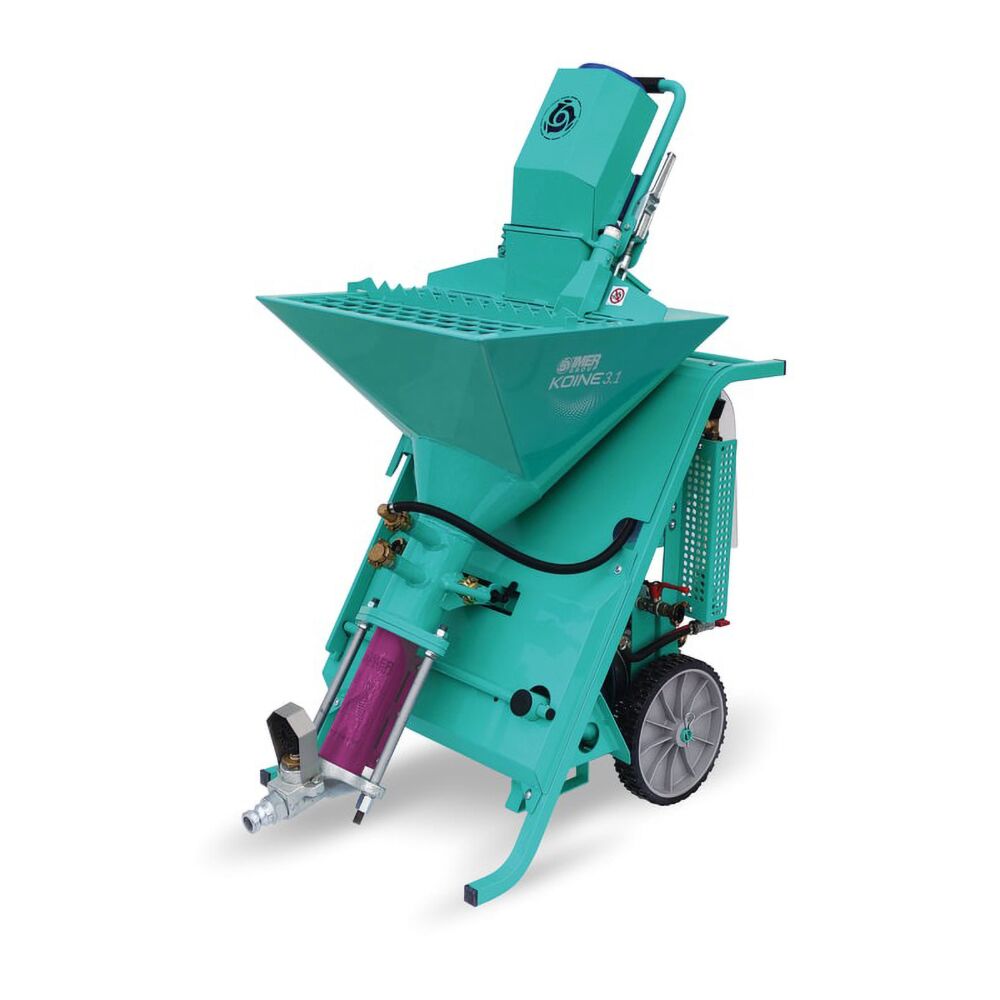

Imer Koine 3.1 Continuous Cycle Spraying and Mixing Pump - 1106351
Brand: Imer
Availability: Ships from Factory (More Info)
Shipping: Free to Continental US (More Info)
The Imer Koine 3.1 Pump can mix and pump both dry and wet materials. It is packed with features that allow it tackle a multitude of applications, yet it is compact and highly portable, making it perfect for interior or high-rise building work. The only machine capable of continuous mixing, spraying, and pumping of pre-blended cementitious and gypsum-based mortars, stucco, fireproofing, self-leveling underlayments, and grouts.
The Imer Koine 3.1 Features:
- Control panel equipped with diagnostic and operational display
- Easy start: advanced starting system, without risk of blocking
- Small footprint and weight
- 12" wheels: easy handling also on the most uneven terrains
The Imer Koine 3.1 Continuous Cycle Spraying and Mixing Pump Specifications:
| Max installed power | 4.5 HP |
| Mixer motor power | 2.9 HP |
| Electric pump motor power | 0.6 HP |
| Electric compressor | 1 - 8.8 kW-l/min |
| Dry mode material flow rate* | 1/4 - 3/5 cu ft/min |
| Wet mode material flow rate* | .08 - 3/5 cu ft/min |
| Pumping distance served* | 83' ft |
| Height served* | 49' 2" ft |
| Hopper volume | 2.65 cu ft |
| Loading height | 39" |
| Sound pressure level | < 76 dB (A) |
| Packing size | 63" x 31.5" x 67" |
*The values indicated are subject to variations based on the characteristics of the materials used and their consistency, type of stator/rotor installed and the size of the hoses used.
Imer Koine 3.1 Optional Equipment:
- Dual diaphragm compressor - Part # 1107637
- Mortar, stucco and fireproofing gun kit - Part # 1107005
- D5 - 2.5 Rotor - Part # 1107085
- D5 - 2.5 Stator - Part # 1107084
- Turbo mixer (use with Part # 1107029 & # 1107028) - Part # 1107517
- 50' x 25mm material hose - Part # 1107525
- 33' x 25mm material hose - Part # 1107526
- 16' x 25mm material hose - Part # 1107527
- 5' overhead wand - Part # 1107549
- D8 - 1.5 Rotor with tab - Part # 1107029
- D8 - 1.5 Stator - Part # 1107028
- SLU mixing paddle for light materials - Part # 1107597
| SKU | 1106351 |
|---|---|
| In the Box |
|
| Manufacturer | Imer |
| Manufacturer Part Number | 1106351 |
| Motor | 60Hz Single phase with D8-1.5 rotor/stator |
| HP | 4.5 |
| Dimensions (L x W x H) | 41.7" x 26" x 59" |
| Voltage | 220 |
| Weight (lbs.) | 350.5 |
