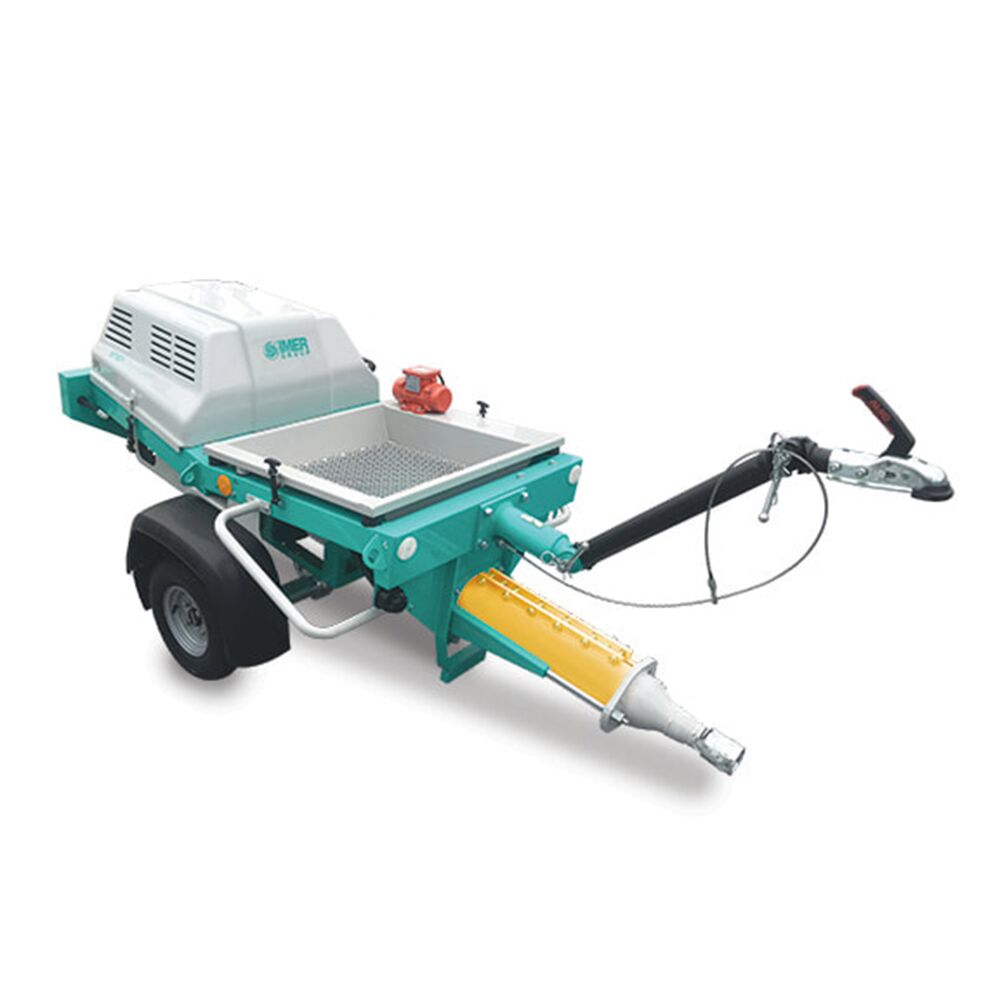

Imer Step-Up 120 A Pumping & Spraying Machine 1106054 Three Phase

Quietly Spray and Pump Large Volumes
$24,799.00

Brand: Imer

Availability: Ships from Factory (More Info)

Shipping: Free to Continental US (More Info)

SKU
1106054

IMER Step-Up Step-Up 120A 3 Phase is a tow-able multi-purpose pump and spray machine. The portable pump and sprayer can be configured to your application using the many different accessories available. Best described as a pure high flow material pump for self-leveling materials and non-shrink grouts. It’s designed to give 9.5 cubic yard per hour performance efficiently and quietly in restricted job site environments. Its sole mission is to pump large quantities of material through its high flow rotor/stator pumping system. Pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofing and many other materials.

**This Towable Mixer requires a forklift for removal from the shipping truck. It is too large for a lift-gate.**

The Imer Step-Up 120 A Features:

  • Is a tow-able multi-purpose pump and spray machine
  • Many different accessories available such as, compressor, gun kits, and more
  • Can pump and spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, water-proofings
  • Rotor/ stator pump provides a smooth and continuous flow of material
  • High capacity vibrating hopper
  • Torsion bar suspension

Imer Step-Up 120 A Specifications:

Power 220V/60Hz, 3 Phase
Motor power rate 10 hp
Max grain size 3/8"
Flow rate 9.5 cu yds/ hr
Max pumping distance 200 ft
Max pumping height 100 ft
Hopper capacity 4.25 cu ft
Sound pressure level <79 dB(A)

Imer Step-Up 120 A Optional Equipment:

  • Non-towing wheel kit - Part # 1107633
  • 33' of Ø 35mm hose - Part # 1107528
  • 33' of Ø 50mm hose - Part # 1107533
  • Grate for premixed material - Part # 1107569
  • 50mm to 35mm material hose reducer - Part # 1106178
  • Shotcrete gun - Part # 1106250
  • Pintle tow ring - Part # 1107161
  • 2L6 Rotor/stator kit - Part # 1107088
  • ​IM25L Rotor/stator kit - Part # 1107149

Download User Manual
Download Product Brochure

More Information
SKU 1106054
In the Box
  • Three-phase 220V/60Hz motor – 10 HP 100% duty cycle motor
  • Electric control panel
  • Built-in low voltage electric remote control with 120’ of cable
  • 133’ power supply cord
  • 66’ power supply cord
  • 60.12 rotor-stator
  • Vibrating grid
  • 33’ of 50mm hose (2 in)
  • ​Accessory box
UPC 8033679022013
Manufacturer Imer
Warranty One Year Warranty
Manufacturer Part Number 1106054
Motor 220V/60Hz, Three Phase
HP 10
Dimensions (L x W x H) 32" x 91" x 38"
Voltage 220
Weight (lbs.) 616
