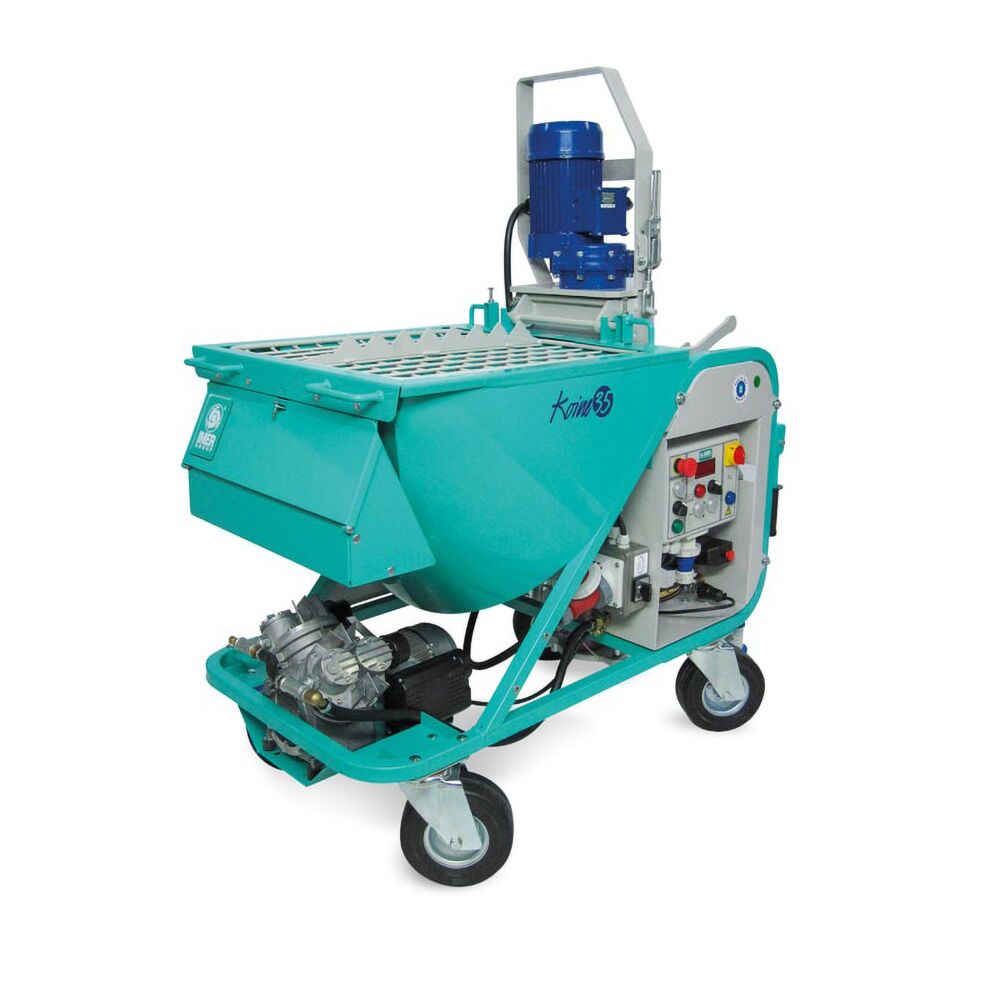

Imer Koine 35 Continuous Pump and Mixer - 1106051
Brand: Imer
Availability: Ships from Factory (More Info)
Shipping: Free to Continental US (More Info)
The Imer Koine 3.5 Continuous Pump and Mixer is one of the most advanced and versatile production pumps on the market today. It is packed with features that allow it tackle a multitude of applications, yet it is compact and highly portable, making it perfect for interior or high-rise building work. The only machine capable of continuous mixing, spraying, and pumping of pre-blended cementitious and gypsum-based mortars, stucco, fireproofing, self-leveling underlayments, and grouts.
The Imer Koine 3.5 Features:
- Continuous operation means efficient and effective production
- Self-priming water pump with stainless steel housing and brass impeller
- The continuous feed impeller blade feeds your preblended material
- Single-phase 3 HP motor with "turbo boost" to 5 HP
- Pump and spray up to 300 feet away
- Continuous feed impeller blade makes sure that materials are broken up and ready to be mixed
- 4-speed material flow rate delivers up to 120 - 50lb bags of self-leveling per hour
The Imer Koine 3.5 Continuous Pump and Mixer Specifications:
| Total machine power requirement | 5 HP |
| Drive motor | 3 HP |
| Feeding impeller motor | 0.5 HP |
| Water pump | 1 HP |
| Material flow rate | Up to 60 cu ft/hr |
| Maximum pumping distance | 300 ft |
| Loading height | 36" |
* The pumping distance will vary depending upon the type of material being used.
Imer Koine 35 Optional Equipment:
- Dual diaphragm compressor - Part # 1107637
- Mortar, stucco and fireproofing gun kit - Part # 1107005
- D5 - 2.5 Rotor - Part # 1107085
- D5 - 2.5 Stator - Part # 1107084
- Turbo mixer (use with Part # 1107029 & # 1107028) - Part # 1107517
- 50' x 25mm material hose - Part # 1107525
- 33' x 25mm material hose - Part # 1107526
- 16' x 25mm material hose - Part # 1107527
- 5' overhead wand - Part # 1107549
- D8 - 1.5 Rotor with tab - Part # 1107029
- D8 - 1.5 Stator - Part # 1107028
- SLU mixing paddle for light materials - Part # 1107597
| SKU | 1106051 |
|---|---|
| In the Box |
|
| Manufacturer | Imer |
| Manufacturer Part Number | 1106051 |
| Motor | 220V/60Hz, 5 hp Single phase with D8-1.5 rotor/stator |
| HP | 5 |
| Dimensions (L x W x H) | 62" x 27" x 47" |
| Voltage | 220 |
| Weight (lbs.) | 510 |
