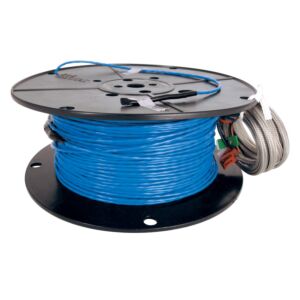

MasterHeat Coated In Floor Heating Wire Spool - 3" 240V

The 240V MasterHeat Coated Radiant Floor Heating Wire is a flexible coated wire for floor heating installations and can be used with RPM mats, or our wire strapping.
As low as $147.56

Brand: MasterHeat

Availability: Sold in Store - Ships from Store or Factory (More Info)

Shipping: Free to Continental US (More Info)

Only %1 left
SKU
MH810134

MasterHeat 240V coated wire is a simple, economical way to warm floors and rooms, without the issues of forced air heating (dirty ducts, allergens, filter changes, humidity changes). Warm all kinds of floor coverings including ceramic tile, stone, wood, laminates, vinyl, and carpet. Whatever your installation, there is a MasterHeat in-floor warming cable spool sized just for your project. MasterHeat Coated Wire is made the same as MasterHeat Wire but has an additional tough, waterproof outer jacket.

MasterHeat coated in-floor warming wires can be used in all applications including showers and anywhere else the toughness of an outer jacket is needed

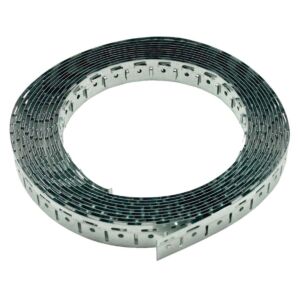

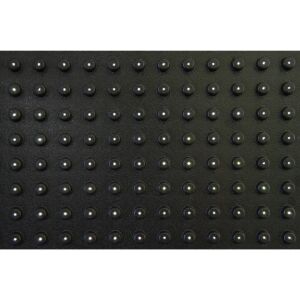

MasterHeat in-floor heating wires can be spaced and attached with metal straps or with the Radiant Positioning Mats. In either case, pay special attention to how thin-set or self-leveling mortar should be applied over the cables prior to setting tile, stone, or other floorings.

Evaluate how many square feet of floor you would like to be heated by radiant heat. Do not put under cabinets or appliances. Generally, about 85% - 90% of the open areas should have the floor warming element. Leave the wire at least 4" away from the toilet wax ring and 6" away from your walls. To keep toes warm, install right up to the toe-kick in front of kitchen or bath cabinets, and in front of a toilet, shower, or tub.

MasterHeat Coated In Floor Heating Wire Spool Features:

  • New Water-Proof Outer Jacket
  • Approved for Showers
  • Tough Stainless Steel Ground Braid
  • Single-point Connection
  • Using the New "shower approved" MasterHeat Coated Wire makes it easy to heat your dry and wet floor areas with the same cable.
  • Oxygen-free heating elements
  • ETFE insulationSpacing

Spacing:

  • 2.5" on center = 14.4 Watts/sq. ft. - Use on concrete basement slabs, sunrooms, and in other high heat loss areas.
  • 3" on center = 12 Watts/sq. ft. - Use in bathrooms, kitchens, dining/living areas, etc.
  • 3.5" on center = 10.3 Watts/sq. ft. - Use in hallways, entries, low heat loss areas, etc.

3" on center is the most commonly used spacing and equals the heat output of MasterHeat mats.

MasterHeat Coated In Floor Heating Wire Spool Specifications:

Model Number Cable
Length
Sq. Ft. Coverage
@2.5" OC (14.4w/sq ft)
Sq. Ft. Coverage
@3" OC (12w/sq ft)
Sq. Ft. Coverage
@3.5" OC (10.3w/sq ft)
Amp
Draw
Resistance
Range (Ohms)
Order Number
240020WR‐MH 78' 17 20 24 1.0 217 - 267 81021278
240030WR‐MH 117' 25 30 36 1.5 143 - 176 81021279
240040WR‐MH 157' 34 40 48 2.0 107 - 132 81021280
240050WR‐MH 196' 42 50 60 2.5 84 - 105 81021281
240060WR‐MH 235' 51 60 72 3.0 67 - 83 81021282
240070WR‐MH 274' 59 70 84 3.5 59 - 73 81021283
240080WR‐MH 313' 67 80 96 4.0 50 - 63 81021284
240090WR‐MH 352' 76 90 108 4.5 45 - 56 81021285
240100WR‐MH 391' 84 100 120 5.0 40 - 50 81021286
240120WR‐MH 470' 101 120 144 6.0 33 - 42 81021287
240140WR‐MH 548' 118 140 168 7.0 29 - 37 81021288
240160WR‐MH 626' 135 160 192 8.0 24 - 31 81021289
240180WR‐MH 704' 151 180 216 9.0 22 - 28 81021290
240200WR‐MH 783' 168 200 240 10.0 20 - 26 81021291

Download User Manual

More Information
SKU MH810134
Non-Returnable No
Manufacturer MasterHeat
Warranty 25 Year Limited Warranty
Voltage 240
Weight (lbs.) 2.5 - 20.0
Write Your Own Review
You're reviewing: MasterHeat Coated In Floor Heating Wire Spool - 3" 240V
Customer Questions
Can the rolls of MH 240v coated wire be spliced for larger floor areas? I need to cover 400 sf, but your largest rolls only cover 200 sf each.

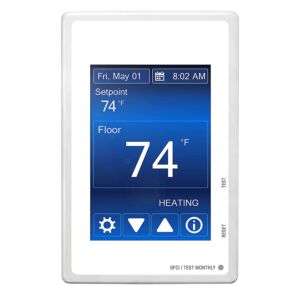

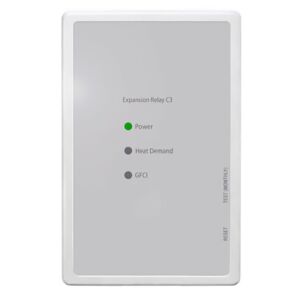

For 400 sq ft you would need to buy 2 wire sets, a thermostat and a relay, with a max of 300 sq ft to the thermostat.
