Rubi Tools TX-MAX Series Tile Cutters - TX 710, 1020, 1250
Heavy-duty professional manual cutters engineered for intensive cutting of all types of ceramic tile, including porcelain and extruded stoneware. Featuring a high-performance multipoint separator, rotating square system, and extreme breaking power.
Brand: Rubi Tools
Availability: Sold in Store - Ships from Store or Factory (More Info)
Shipping: Free to Continental US (More Info)
Rubi TX-MAX Tile Cutters — Heavy-Duty Professional Manual Tile Cutter Series
The Rubi Tools TX-MAX Series Professional Manual Tile Cutters are designed for tile installers who demand maximum power, precision, and durability when working with today’s toughest ceramic materials. Built for intensive professional use, the TX-MAX series excels in cutting porcelain stoneware and extruded stoneware with consistency and control.
At the core of the TX-MAX system is its high-performance multipoint separator, delivering up to 2,645 lbs of breaking power while remaining easy to operate with one hand. The ratchet and trigger mechanism enables fast locking and release of the separator, improving workflow efficiency across both thin and thick materials.
The rotating square system allows precise angular cuts from 0° to 45°, while the advanced head and rivet positioning improves scoring line visibility for greater accuracy. Heavy-duty 30 mm tubular steel guides combined with extra-long aluminum slides provide outstanding rigidity and stability, even on large-format tiles.
To support demanding installations, TX-MAX cutters feature a floating table system with expandable side arms, ensuring stability during breaking operations. Each model is supplied with two scoring wheels and a protective transport case, with the TX-1250 MAX offering enhanced mobility through integrated wheels and handle.
Key Features and Benefits
- Designed for Intensive Professional Use — Ideal for continuous cutting of all ceramic tiles, especially porcelain stoneware (AIa / BIa) and extruded stoneware
- High-Performance Multipoint Separator — Advanced separator system provides exceptional breaking efficiency and clean cuts across varying tile thicknesses

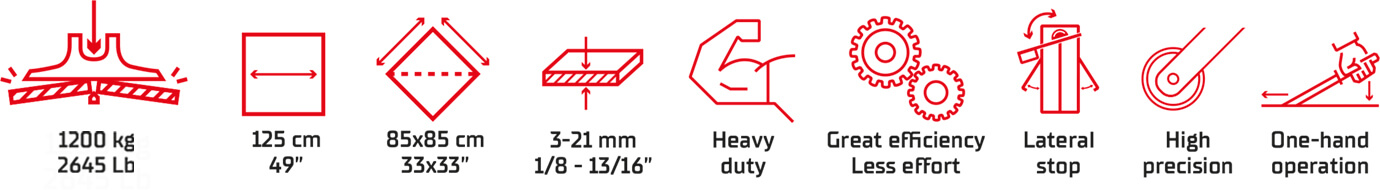

- Extreme Breaking Power — Delivers up to 2,645 lbs (1,200 kg) of breaking force for reliable performance on dense materials
- One-Handed Operation System — Ratchet and trigger mechanism allows easy locking and unlocking of the separator using one hand, increasing productivity
- Precision Rotating Square — Rotating square system enables fast and accurate angle cuts from 0° to 45°
- Optimized Scoring Visibility — Advanced rivet position improves visibility during scoring and separation for higher cutting accuracy
- Protective Anti-Marking Gripper — Removable protective insert allows safe cutting of delicate or polished surfaces without surface damage
- Heavy-Duty Steel Guide System — 30 mm diameter tubular steel guides ensure exceptional rigidity, torsional resistance, and long-term durability
- Extra-Long Aluminum Slides — Extended aluminum slides enhance structural stability, particularly on large-capacity models
- Floating Table with Side Supports — Floating base improves breaking efficiency; additional aluminum arms provide support for large-format tiles
- TX 710 / TX 1020: 2 side arms
- TX 1250: 4 side arms
- Repetitive Cut Lateral Stop — Integrated lateral stop ensures fast, precise repetitive cuts and narrow strip cutting
- Multiple Scoring Wheels Included — Supplied with 8 mm and 22 mm EXTREME scoring wheels; compatible with the full Rubi PLUS wheel range
- Transport-Ready Design — All models include a reinforced suitcase-style carrying case; TX-1250 MAX also features wheels and carrying handle for easier mobility
Specifications
| Model | TX-710 MAX | TX-1020 MAX | TX-1250 MAX |
|---|---|---|---|
| Part # | 17910 | 17916 | 17922 |
| Cutting length (in) | 27 | 40-1/8 | 49-1/4 |
| Diagonal cutting length (in) | 19-5/8 x 19-5/8 | 27-1/2 x 27-1/2 | 33-1/2 x 33-1/2 |
| Cutting height (in) | 1/8 - 7/8 | 1/8 - 7/8 | 1/8 - 7/8 |
| Separator power (lb) | 2645.52 | 2645.52 | 2645.52 |
| Weight with carrying case (lb) | 29.32 | 42.76 | 57.31 |
Downloads
Rubi TX-MAX Series Tile Cutters Product Brochure
Rubi TX-MAX Series Tile Cutters User Manual
Rubi Large Format Ceramic Tile Installations Manual
| SKU | RUBI-TX-MAX |
|---|---|
| In the Box |
|
| Manufacturer | Rubi Tools |
| Dimensions (L x W x H) | 41.41" x 18.03" x 7.59" - 66.99" x 18.03" x 7.59" |
| Max Length of Cut (in.) | 27 15/16" / 36 5/8" / 49 3/16" |
| Weight (lbs.) | 41.89 - 62.83 |
